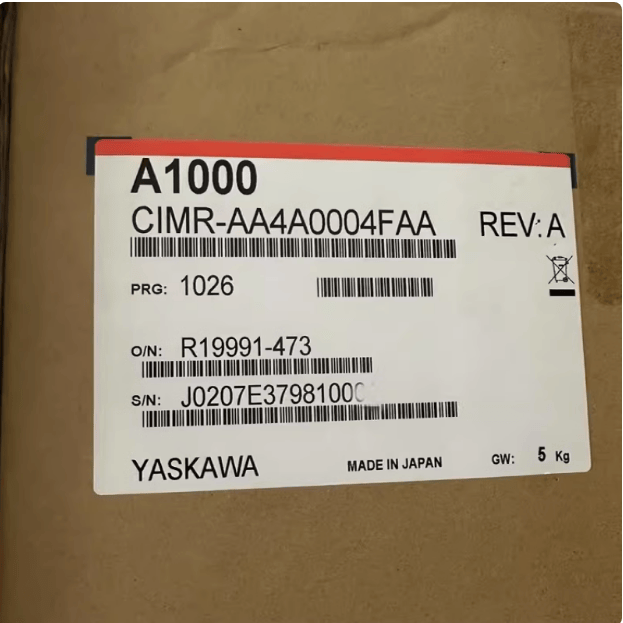

Yaskawa CIMR-AB4A0004FBA/FAA Series Drive

Brand: Yaskawa
Product Name: A1000 Series AC Drive
Catalog Number: CIMR-AB4A0004FBA
Product Type: Variable Frequency Drive (VFD)

Overview

The Yaskawa A1000 Series AC Drive (CIMR-AB4A0004FBA) is a high-performance, general-purpose variable frequency drive designed for a wide range of industrial applications requiring precise motor control and energy efficiency. As a standard model (Customized Specifications: A), this drive is part of Yaskawa's premium A1000 series, known for its advanced features, robust design, and exceptional reliability. It is specifically configured for 3-phase, 380-480 Vac input voltage, making it suitable for global industrial power standards, particularly in regions like China (Region Code: B). The CIMR-AB4A0004FBA offers versatile control for both normal duty and heavy duty applications, providing flexibility for various motor loads. Its NEMA Type 1 enclosure (Enclosure Type: F) offers protection for indoor use in general purpose applications.

Key Features

• High Performance Vector Control: Provides precise speed, torque, and position control for a wide variety of motor types, including induction motors (IM) and permanent magnet motors (PM).
• Dual Rating Capability: Offers flexible motor capacity and output current ratings for both Normal Duty (1.5 kW / 4.1 A) and Heavy Duty (0.75 kW / 3.4 A) applications, optimizing performance for different load requirements.
• Wide Voltage Compatibility: Designed for 3-phase input voltage of 380-480 Vac, ensuring compatibility with common industrial power supplies.
• Built-in Safety Functions: (Common for A1000 series, assumed) Often includes STO (Safe Torque Off) for enhanced machine safety.
• Energy Saving Functions: (Common for A1000 series, assumed) Features like "Energy Saving Function" and "Automatic Energy Saving" help reduce operational costs by optimizing motor efficiency.
• NEMA Type 1 Enclosure: Provides protection against falling dirt and light splashing, suitable for indoor general-purpose applications.
• Compact Design: With dimensions of 14.7cm (L) x 14cm (W) x 26cm (H), it allows for efficient use of panel space.
• Robust and Reliable: Built with Yaskawa's renowned quality and durability, ensuring long-term stable operation in industrial environments.
• User-Friendly Interface: (Common for A1000 series, assumed) Typically features an intuitive keypad and display for easy setup and monitoring.
• Global Compliance: (Common for A1000 series, assumed) Designed to meet various international standards and certifications.

Technical Specifications
