TOKIMEC SQP32 Series Vane Pump, Fixed Displacement, Low Noise, Industrial Hydraulic

TOKYO KEIKI SQP32 Series Fixed Displacement Vane Pump for High Flow Industrial Hydraulic Systems

The TOKYO KEIKI SQP32 Series is a line of advanced, low-noise fixed displacement vane pumps, expertly engineered by TOKYO KEIKI (formerly Tokimec). This series is specifically designed to meet the demands of high-flow industrial hydraulic applications, offering robust performance, superior efficiency, and significantly reduced operating noise. The SQP32 series is ideal for systems requiring consistent, high-volume fluid delivery and a quiet operational environment.

Key Features:

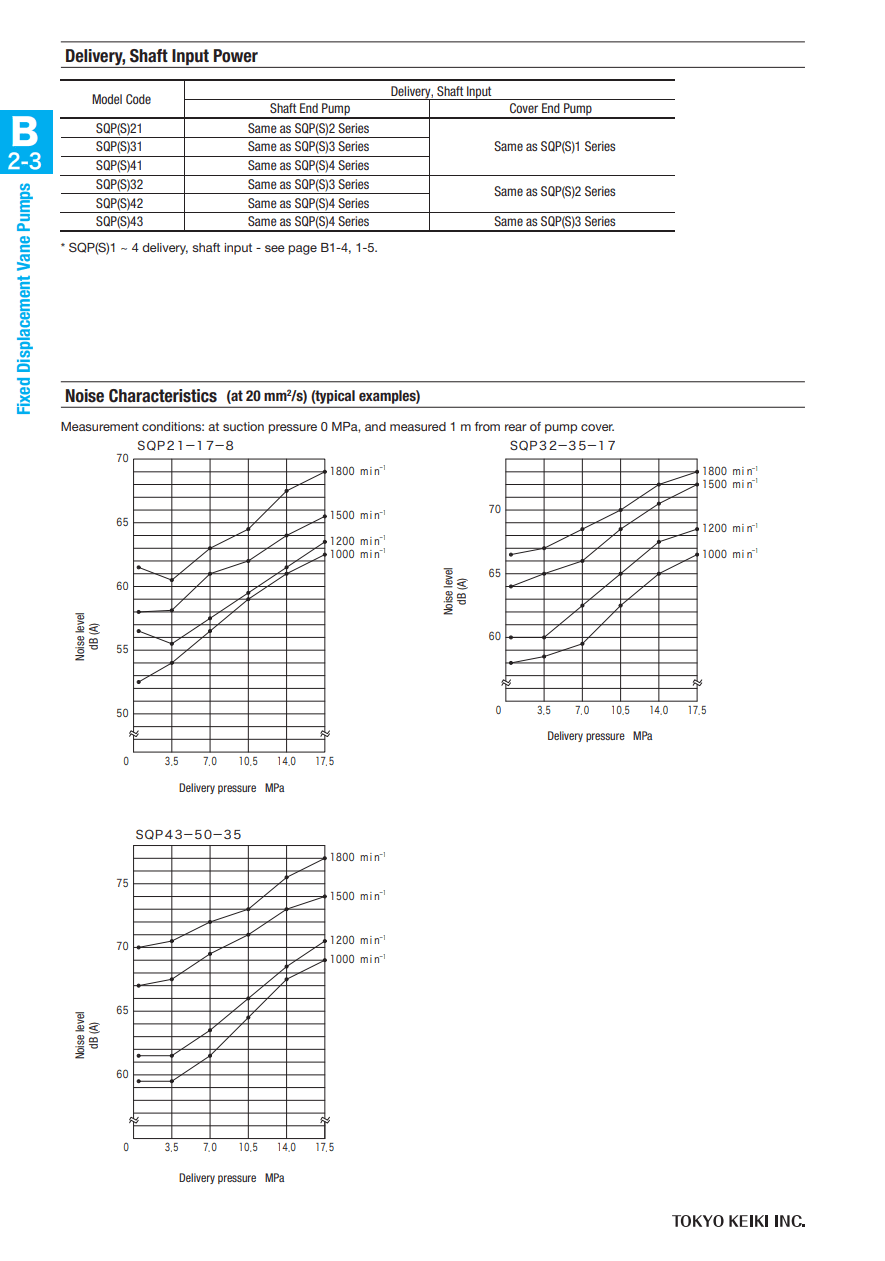

• Exceptional Low Noise Profile: Optimized design techniques are employed to achieve a remarkably low noise output during operation, enhancing worker comfort and facilitating compliance with strict industrial noise regulations.
• Reliable Fixed Displacement: Engineered to provide a constant and precise flow rate, ensuring stable and predictable performance for demanding hydraulic control systems.
• Heavy-Duty Construction: Manufactured with TOKYO KEIKI's legendary precision and high-quality materials, the SQP32 series guarantees exceptional durability and a prolonged service life, even under continuous heavy-duty use.
• Broad Fluid Compatibility: While primarily optimized for mineral oil-based hydraulic fluids, specific models within the series are compatible with F3 (Phosphate ester fluid) and F11 (Water glycol fluid), offering application versatility.
• Flexible Integration Options: Available with both flange and foot mounting configurations, this series provides considerable flexibility for straightforward integration into a wide array of industrial machinery and hydraulic systems.
• High Flow Capacity: The SQP32 series is characterized by its larger displacement options, catering to applications that require higher flow volumes compared to smaller series.

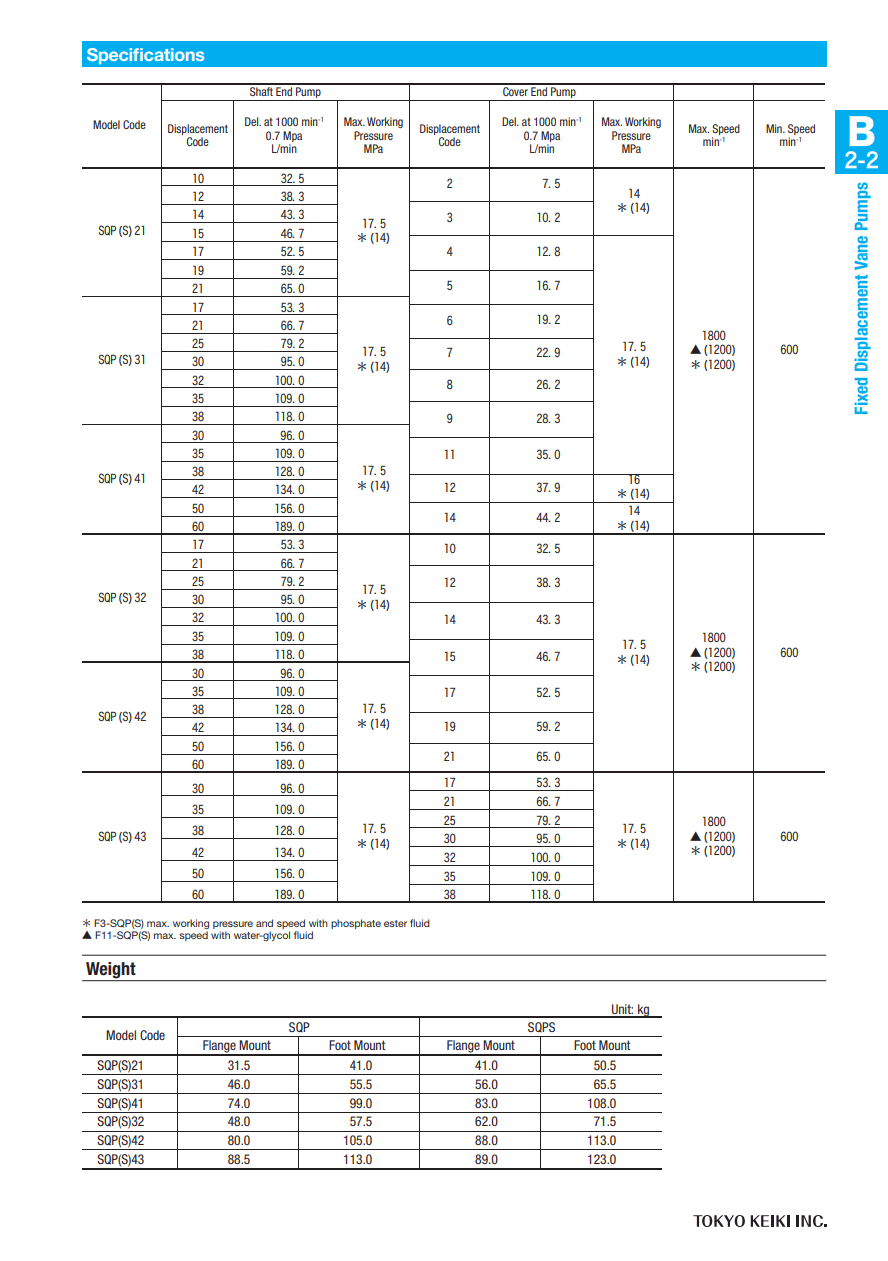

Specifications (SQP(S)32 Series - General):

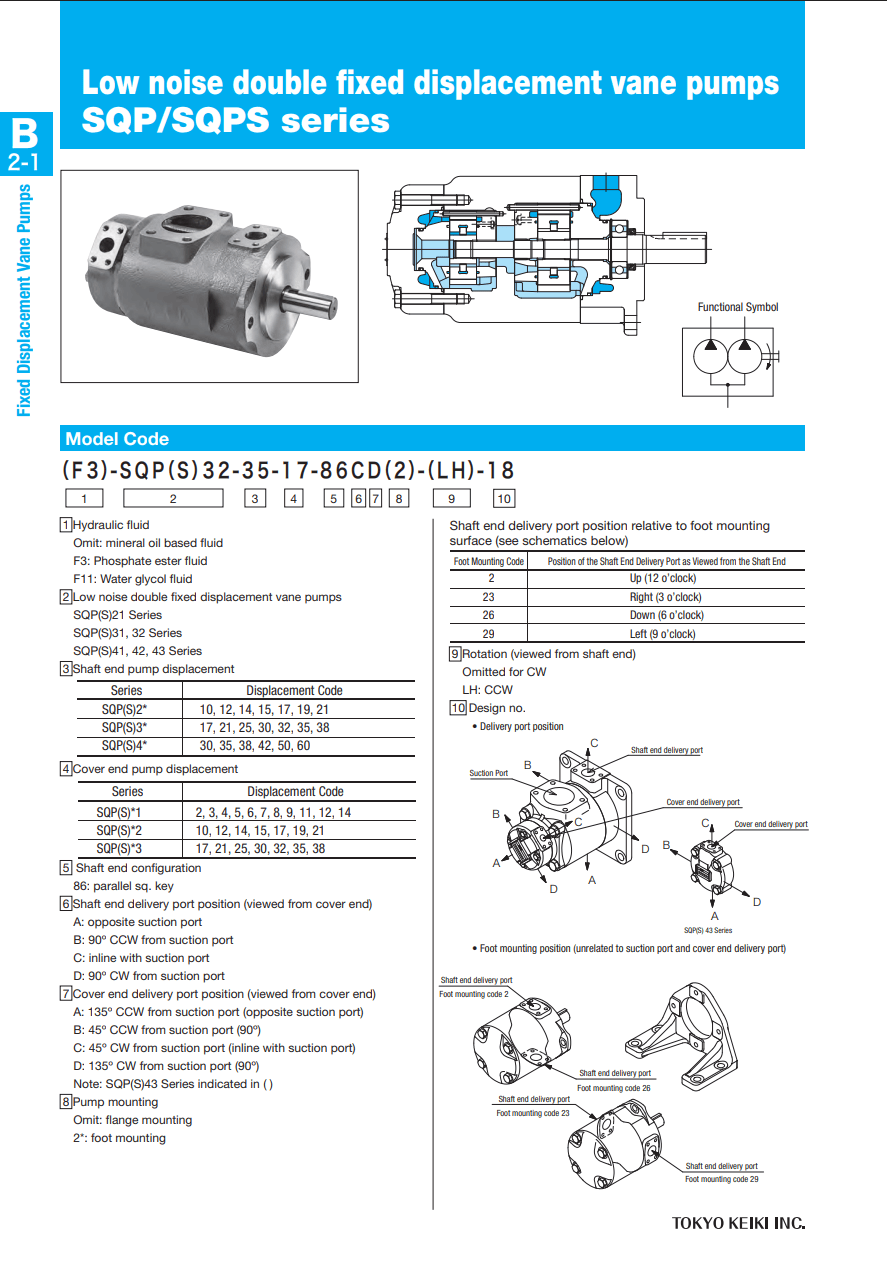

The SQP(S)32 series offers a comprehensive range of displacement options for the shaft end pump (codes 17 through 38) and, for double pump configurations, various cover end pump displacements (codes 10 through 15).

• Shaft End Pump Displacement Options (Delivery at 1000 min⁻¹, 0.7 MPa):
  • Code 17: 53.3 L/min
  • Code 21: 66.7 L/min
  • Code 25: 79.2 L/min
  • Code 30: 95.0 L/min
  • Code 32: 100.0 L/min
  • Code 35: 109.0 L/min
  • Code 38: 118.0 L/min
• Cover End Pump Displacement Options (Delivery at 1000 min⁻¹, 0.7 MPa):
  • Code 10: 32.5 L/min
  • Code 12: 38.3 L/min
  • Code 14: 43.3 L/min
  • Code 15: 46.7 L/min
• Maximum Working Pressure: Up to 17.5 MPa (Maximum working pressure can vary based on the type of hydraulic fluid used. Refer to the TOKYO KEIKI datasheet for precise limitations with F3 phosphate ester fluid and F11 water glycol fluid.)
• Maximum Speed: 1800 min⁻¹ (Certain conditions or fluid types may limit max speed to 1200 min⁻¹.)
• Minimum Speed: 600 min⁻¹

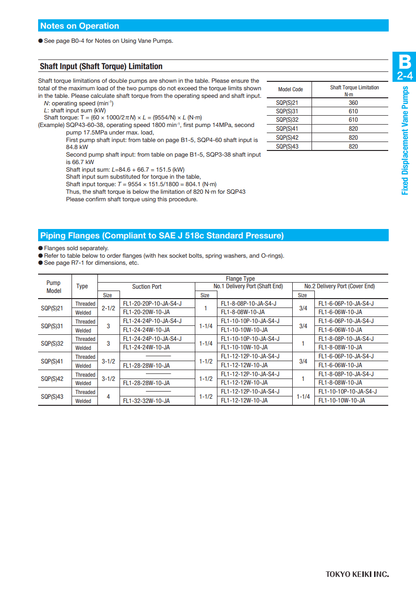

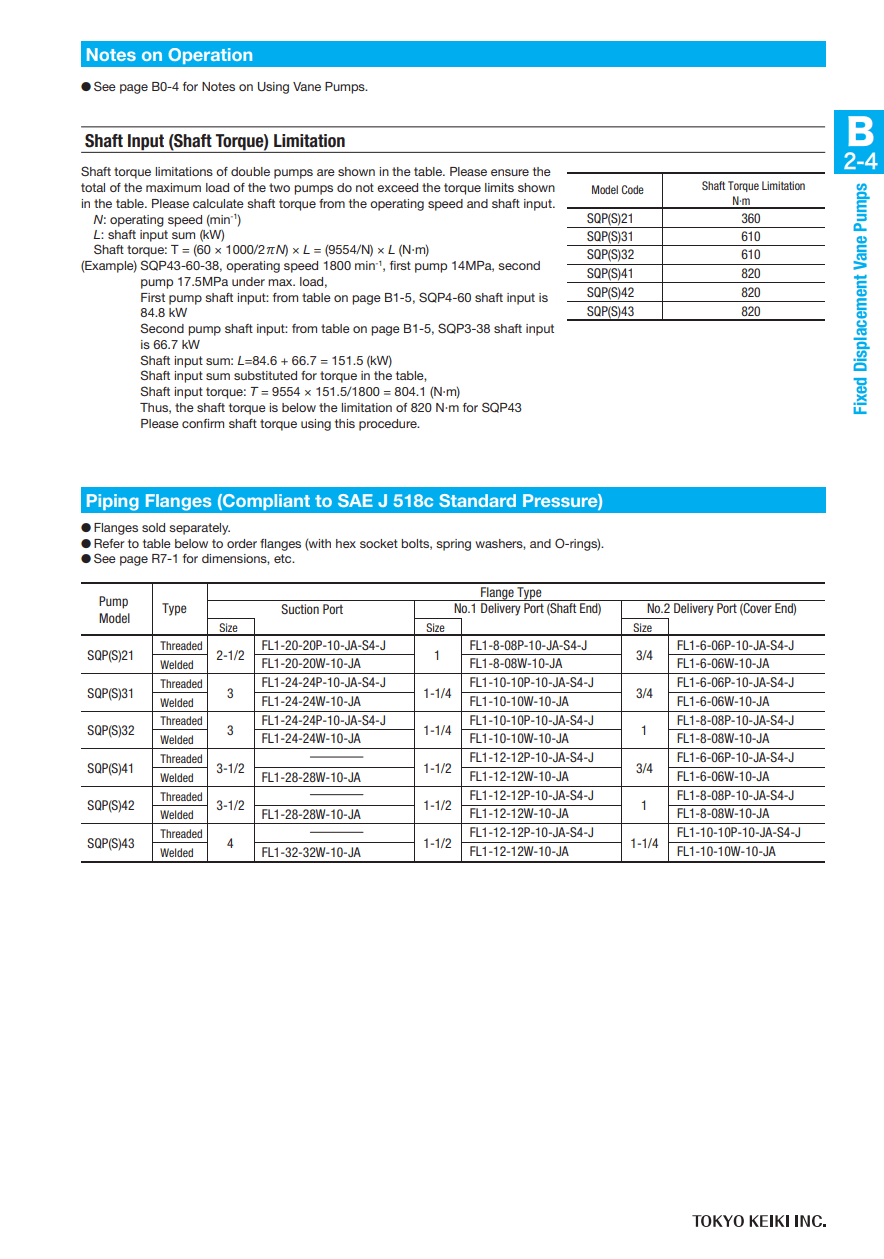

• Shaft Torque Limitation: 610 N-m

Manufacturer:

TOKYO KEIKI INC. (formerly Tokimec Inc.) sets the standard for high-quality hydraulic components. With a profound legacy in engineering and manufacturing excellence, TOKYO KEIKI delivers reliable and innovative fluid power solutions that are integral to industrial machinery and systems globally.
