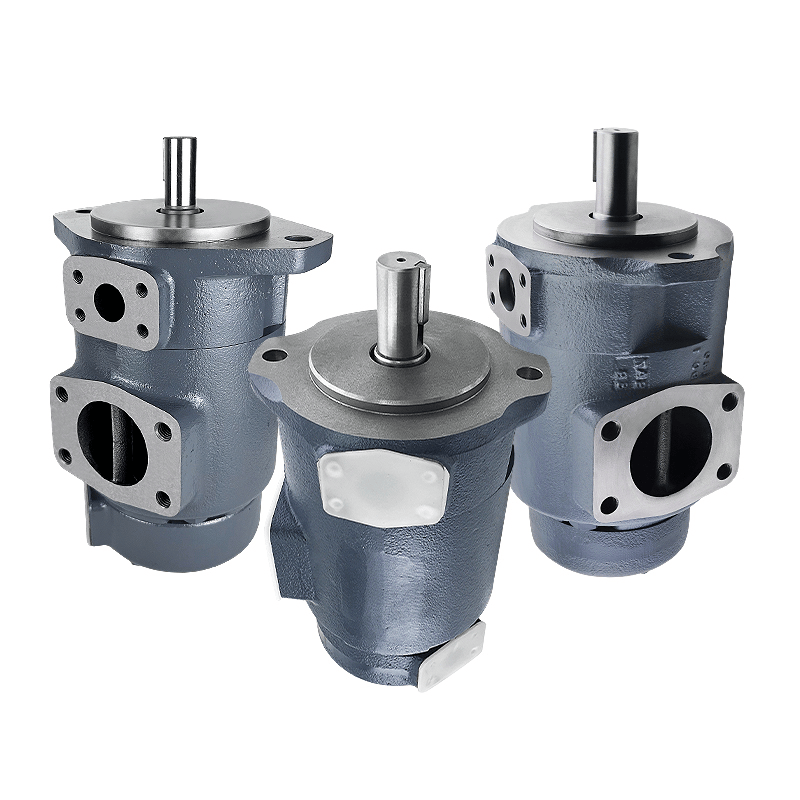

TOKIMEC SQP21 Series Vane Pump, Fixed Displacement, Low Noise, For Mineral Oil

The TOKYO KEIKI SQP21 Series is a line of high-performance, low-noise fixed displacement vane pumps designed for a wide range of industrial hydraulic applications using mineral oil-based fluids. These pumps are engineered to deliver reliable operation, reduced noise levels, and efficient power transmission, making them ideal for systems where quiet operation and consistent performance are critical.

Key Features:

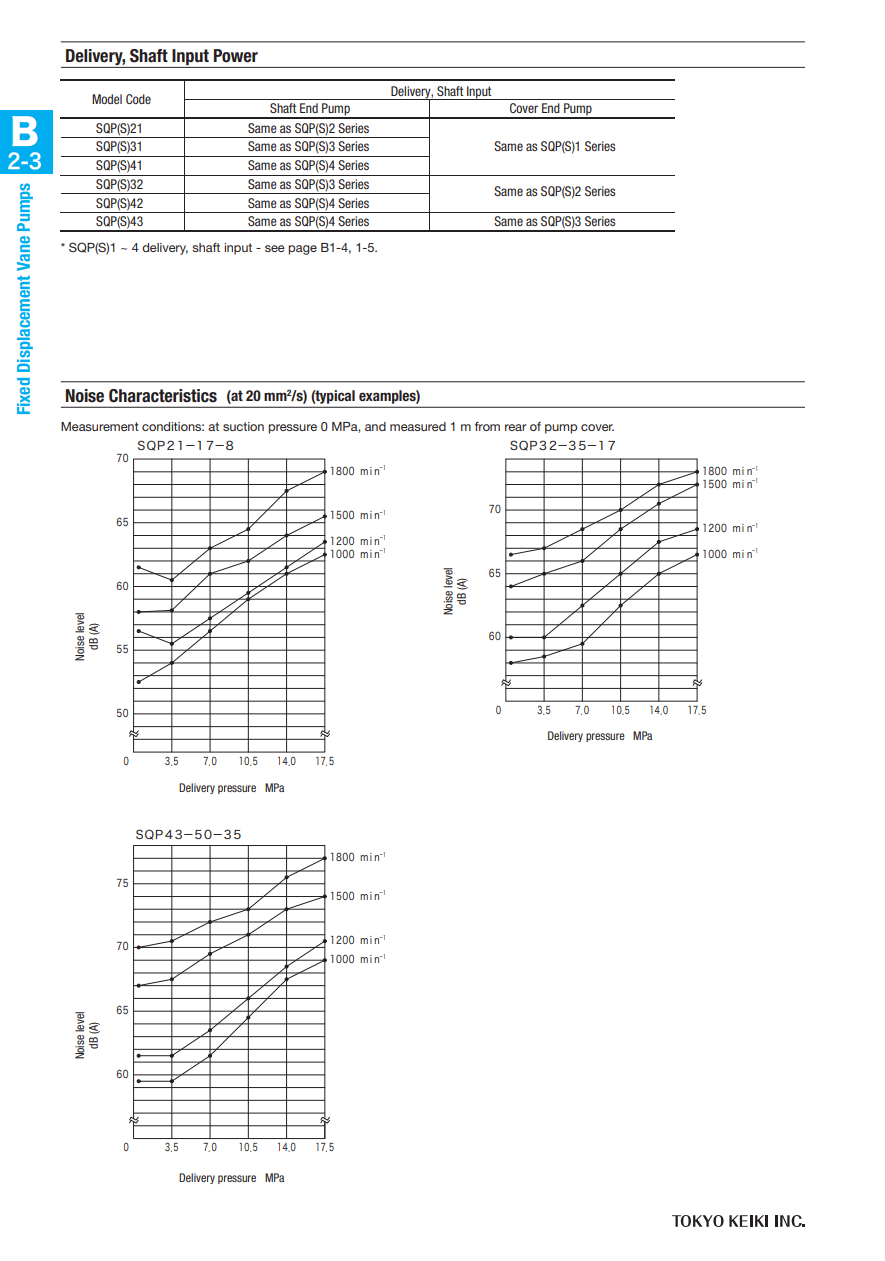

• Low Noise Operation: Specifically designed to minimize operational noise, contributing to a quieter working environment and compliance with noise reduction regulations.
• Fixed Displacement: Provides a constant flow rate, ensuring predictable system performance and stability for precise hydraulic control.
• Durable Construction: Built with high-quality materials and precision engineering by TOKYO KEIKI, ensuring robustness and a long service life even under demanding operating conditions.
• Optimized for Mineral Oil: Engineered to operate efficiently and reliably with mineral oil-based hydraulic fluids, widely used across various industries.
• Versatile Mounting Options: Available with both flange and foot mounting configurations, offering flexibility in system integration.

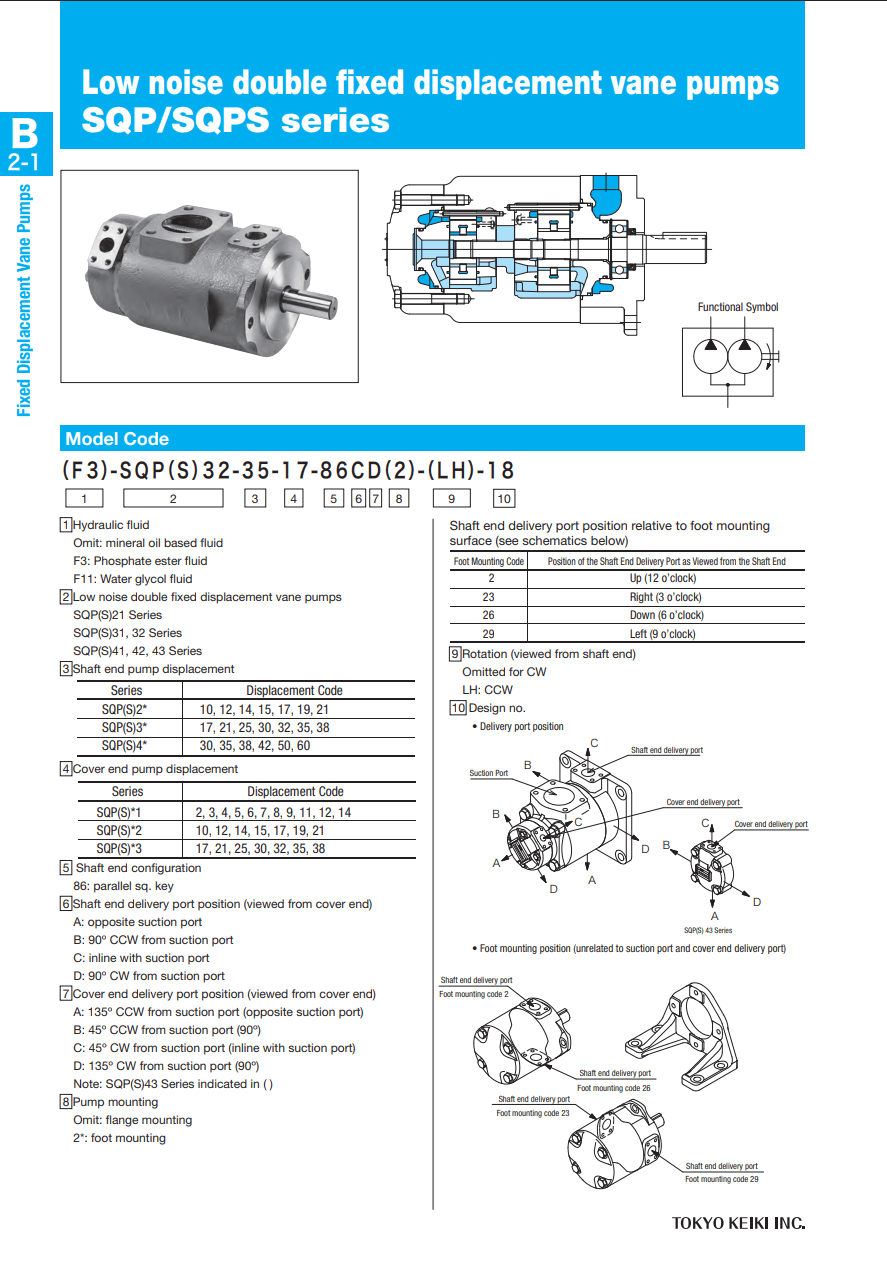

• Series Options: The SQP21 series encompasses models with various displacement codes for both the shaft end pump and, in the case of double pumps, the cover end pump, allowing for tailored flow rates.

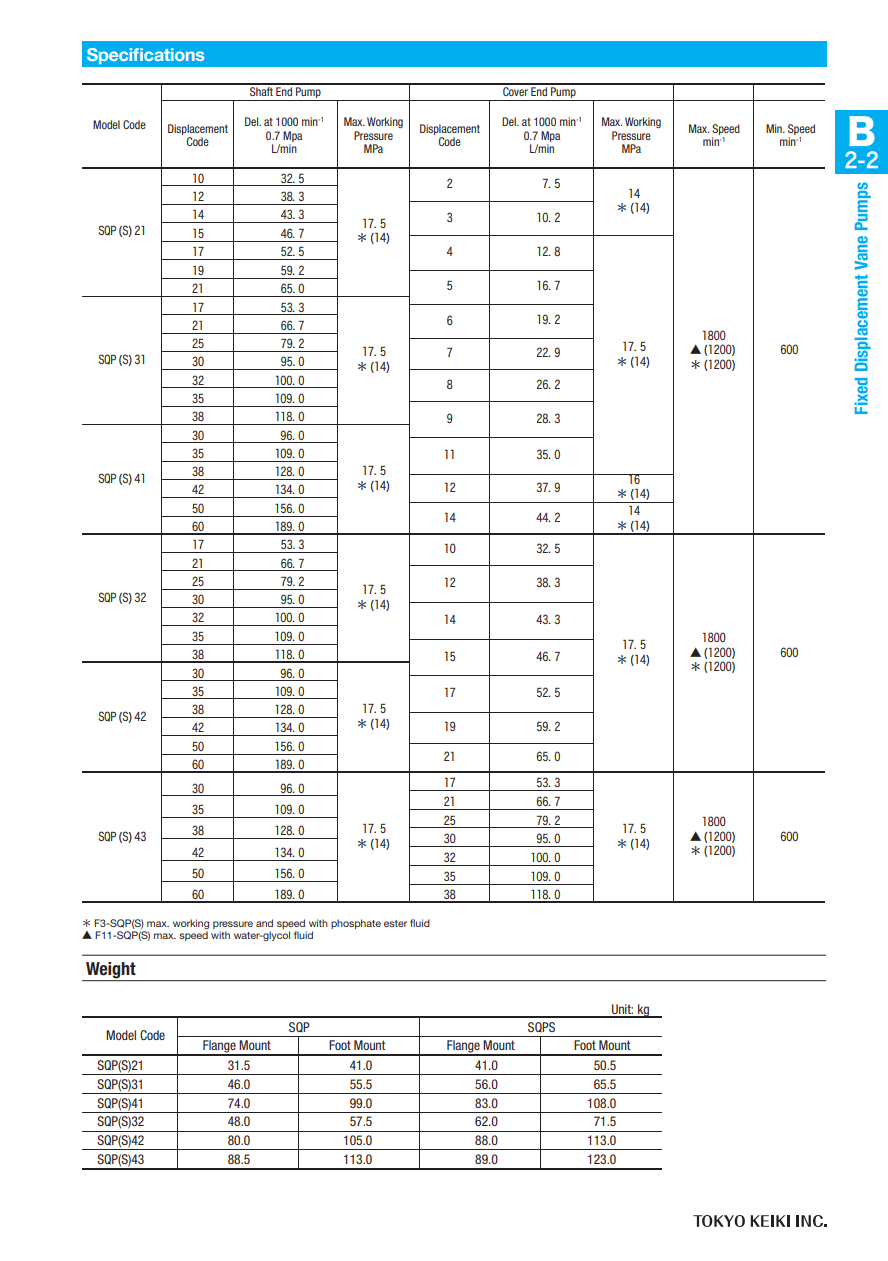

Specifications (SQP(S)21 Series - For Mineral Oil):

The SQP(S)21 series offers a range of displacement options for the shaft end pump, typically from 10 to 21, and for the cover end pump, typically from 2 to 5.

• Shaft End Pump Displacement:
  • Displacement Codes & Delivery at 1000 min-1, 0.7 MPa (L/min):
    • 10: 32.5 L/min
    • 12: 38.3 L/min
    • 14: 43.3 L/min
    • 15: 46.7 L/min
    • 17: 52.5 L/min
    • 19: 59.2 L/min
    • 21: 65.0 L/min
• Cover End Pump Displacement (for double pumps):
  • Displacement Codes & Delivery at 1000 min-1, 0.7 MPa (L/min):
    • 2: 7.5 L/min
    • 3: 10.2 L/min
    • 4: 12.8 L/min
    • 5: 16.7 L/min
• Maximum Working Pressure: 17.5 MPa (Note: Pressure specified is typical for mineral oil, F3-SQP(S) indicates max. working pressure and speed with phosphate ester fluid, F11-SQP(S) max. speed with water-glycol fluid. Specific application conditions may influence limits.)
• Maximum Speed: 1800 min-1 (1200 min-1 under certain conditions*)
• Minimum Speed: 600 min-1

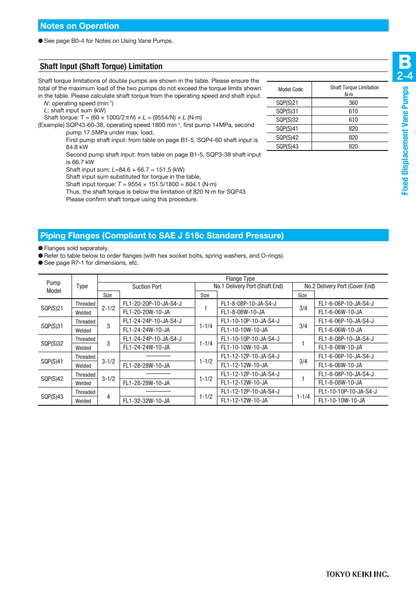

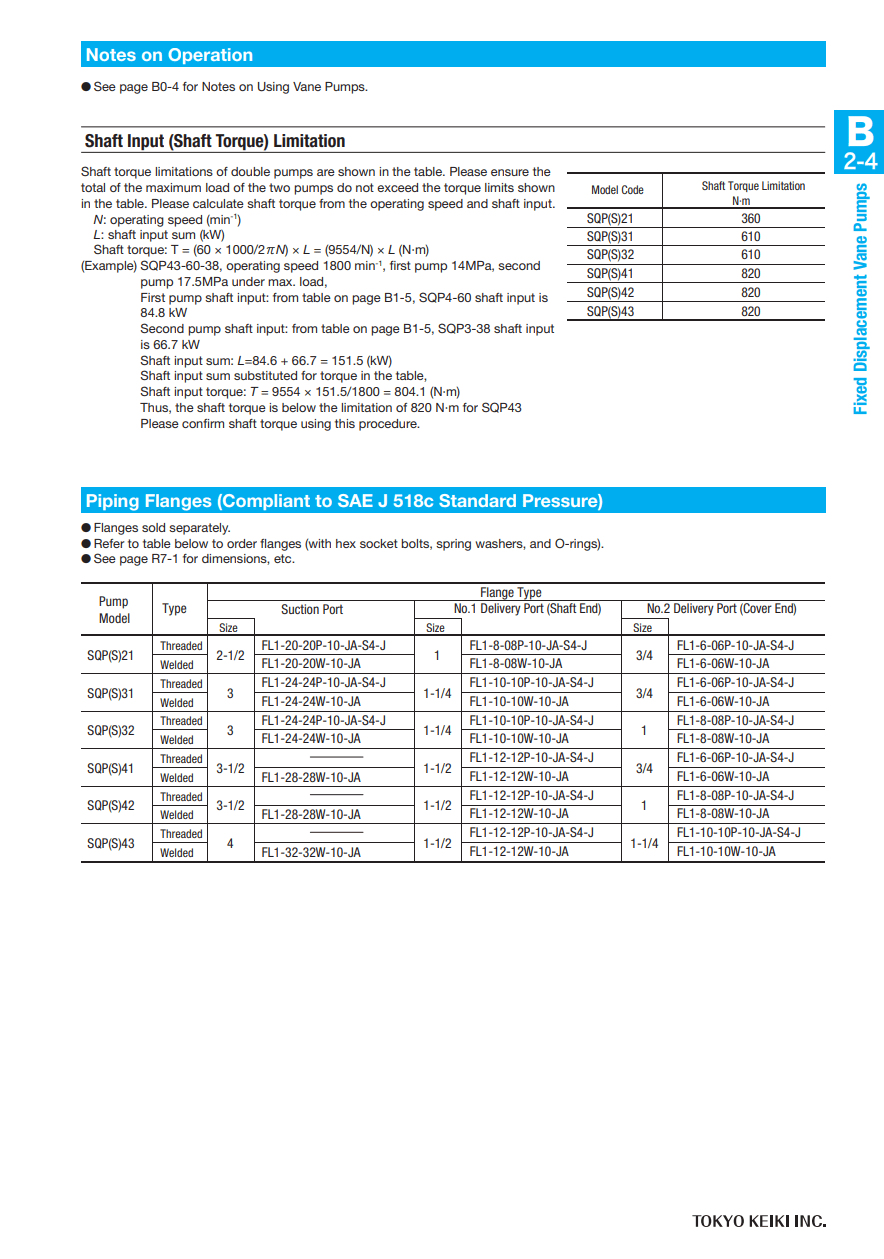

• Shaft Torque Limitation: 360 N-m

Manufacturer:

TOKYO KEIKI INC. (formerly known as Tokimec Inc.) is a renowned manufacturer of hydraulic equipment, recognized for its commitment to precision, quality, and innovation in the fluid power industry. Their products are widely used in various industrial and mobile applications globally.
