ZP100A Thyristor (SCR) Control Tube, 200–2000V — Semiconductor Trigger Device (Pack of 10)

ZP100A Thyristor (SCR) Control Tube — 200–2000V — Pack of 10

Overview

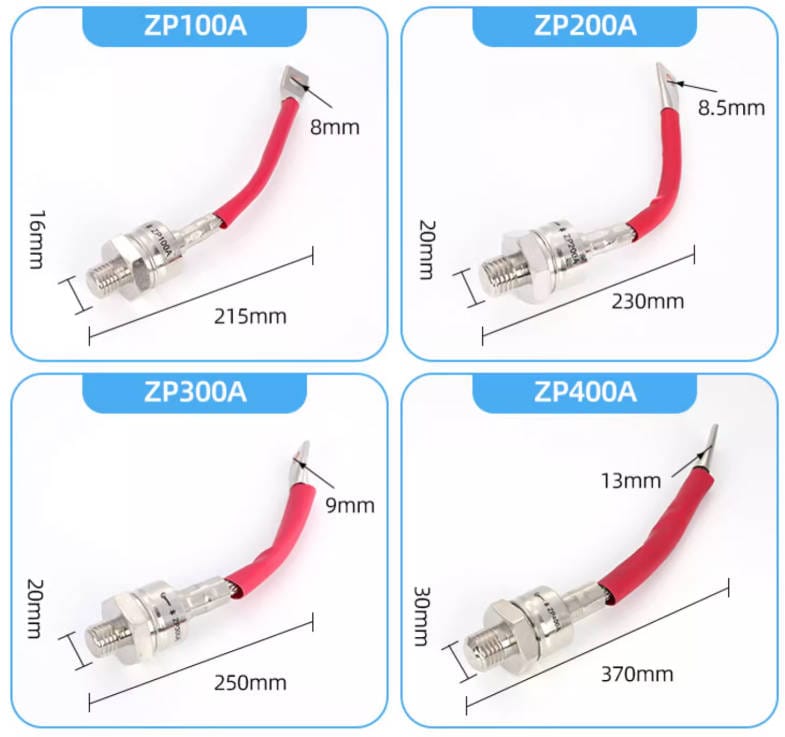

• Part number: ZP100A
• Product: Thyristor / Silicon Controlled Rectifier (SCR) control tube
• Voltage indication: 200–2000 V
• Pack quantity: 10 pieces
• Intended use: Gate-triggering and control in power-electronics and industrial control systems

Key features

• General-purpose thyristor control tube designed for reliable gate-trigger functions.
• Indicated voltage range 200–2000 V suitable for a wide range of medium- to high-voltage control applications.
• Supplied as a pack of 10 to support production, repair and spare inventory.
• Compact semiconductor package for integration into trigger modules, driver boards and power-control assemblies.

Typical applications

• Phase-angle control for AC power regulation (dimming, heater control).
• Motor control, soft-start circuits and speed regulation.
• Trigger circuits for power supplies, inverters and converters.
• Industrial automation and process-control systems requiring SCR triggering.

Handling & installation notes

• Use ESD-safe handling to protect the gate and junction.
• Verify package type, pinout and mechanical compatibility with your PCB or socket before assembly.
• Confirm gate drive requirements, expected load current and thermal dissipation; apply appropriate heat sinking where required.
• Store in a dry, static-controlled environment until use.

Ordering & identification

• Part: ZP100A
• Voltage indication: 200–2000 V
• Pack size: 10 pieces
• Product family: Thyristors / SCR control tubes
