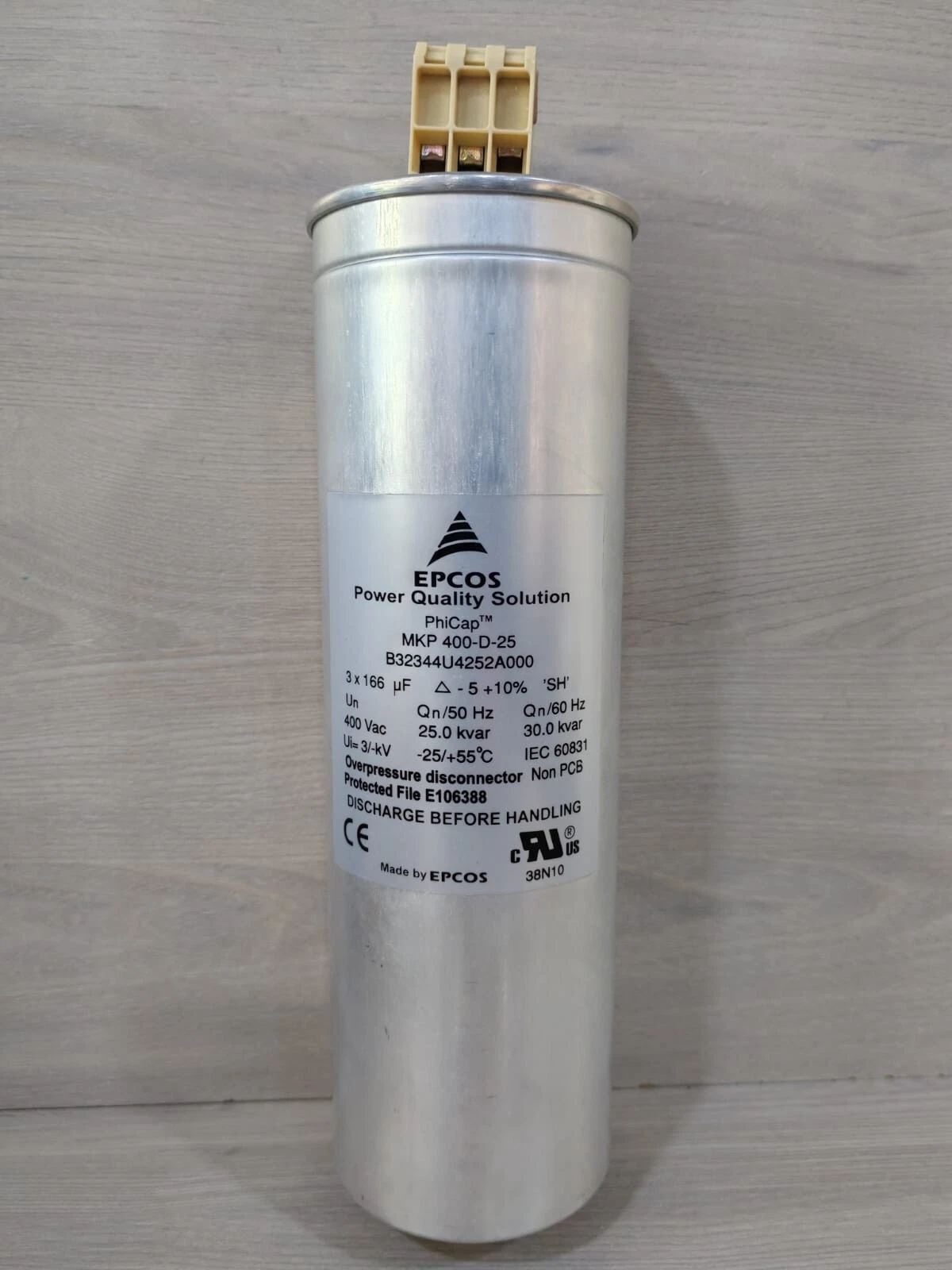

EPCOS B32344E4252A000 MKP400-D-25.0 PhiCap Film Capacitor, 25.0 kvar D (Delta) 400V, 3x166µF, Power Factor Correction

TDK EPCOS B32344E4252A000 MKP400-D-25.0 PhiCap Film Capacitor

The TDK EPCOS B32344E4252A000 is a high-performance PhiCap Film Capacitor meticulously engineered for power factor correction applications. As part of the renowned MKP400-D-25.0 series, this capacitor offers exceptional reliability and efficiency, making it an ideal choice for industrial and commercial power systems.

Key Features:

• Optimized for Power Factor Correction: Specifically designed to enhance the efficiency and stability of electrical networks by preventing reactive power losses.
• Three-Phase, Delta Connection: Configured for three-phase systems with a delta connection, ensuring balanced performance and broad compatibility.
• Self-Healing Technology: Incorporates advanced self-healing properties that allow the capacitor to recover from minor dielectric breakdowns, significantly extending its operational lifespan.
• Robust Construction: Features a dielectric made from polypropylene film and is impregnated with a non-PCB, semi-dry biodegradable resin. Encased in an extruded round aluminum can with a threaded stud for secure mounting.
• Enhanced Safety: Equipped with a ceramic discharge module and a triple safety system, including an overpressure disconnector and optimized capacitor safety terminals, ensuring reliable and safe operation.
• Flexible Cooling & Mounting: Designed for natural air cooling (or forced air cooling) and indoor mounting, with a threaded stud at the bottom of the can (max. torque for M12 = 10 Nm) for simple installation.

Technical Specifications:

• Manufacturer Part Number: B32344E4252A000
• Series/Type: MKP400-D-25.0 (PhiCap capacitors)
• Rated Capacitance (CN): 3 x 166 µF
• Tolerance: -5% / +10%
• Connection: D (Delta)
• Rated Voltage (VN): 400 V AC
• Rated Frequency (fN): 50 Hz (25.0 kvar) / 60 Hz (30 kvar)
• Output (Output Power): 25.0 kvar (at 50 Hz) / 30.0 kvar (at 60 Hz)
• Rated Current (IR): 36.1 A (at 50 Hz) / 43 A (at 60 Hz)
• Dielectric Loss (tan δ₀): 0.2 W/kvar
• Energy Stored (WN): 80 Ws
• Equivalent Series Resistance (Rs): 2.55 mΩ
• Dimensions (d x h): 85 mm x 273 mm
• Weight: Approximately 1.5 kg
• Impregnation: Non-PCB, semi-dry biodegradable resin
• Fixing: Threaded bolt M12
• Maximum Torque (Al can stud): 10 Nm
• Mounting Position: Upright
• Climatic Category: -40/D (Operating temperature range: -40°C to +55°C)
• Degree of Protection: IP20
• Maximum Altitude: 4000 m
• Mean Life Expectancy (tLD): Up to 135,000 hours (at temperature class -40/C; ΘHS ≤ 70°C)
