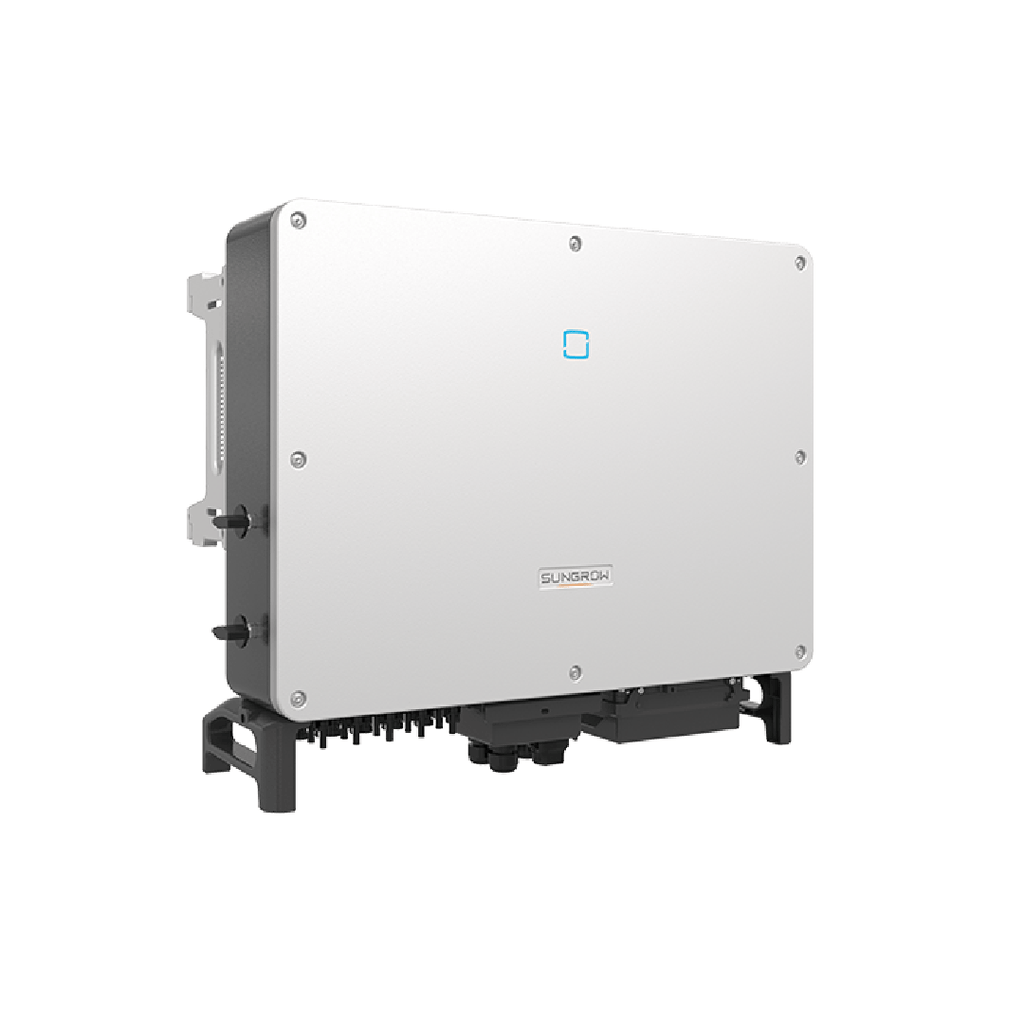

Sungrowpower SG225HX (China) SOLAR INVERTER
Sungrowpower SG225HX (China) SOLAR INVERTER
Regular price
$5,336.00 USD
Regular price
Sale price
$5,336.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Stripe & PayPal
| Model No. |
SG225HX
|
| Input Data | DC |
| Max. DC Voltage |
1500 V
|
| Rated DC Voltage |
1080 V
|
| Max. DC Current |
360 A
|
| MPP(T) Voltage Range |
500~1500 V
|
| No of MPP Trackers |
12
|
| DC Inputs |
24
|
| Output Data | AC |
| Max. AC Power |
247.5 kW
|
| Nominal AC Power |
225 kW
|
| Output AC Voltage Range |
640~920 V
|
| Rated AC Voltage |
800 V
|
| Max. AC Current |
178.7 A
|
| Frequency Range |
45-65 Hz
|
| Frequency |
50, 60 Hz
|
| Power Factor (cosθ) |
0.99
|
| Distortion (THD) |
< 3 %
|
| No of feed-in phases |
3
|
| Max. Efficiency |
99.01%
|
| Euro Efficiency |
98.52%
|
| General Data | |
| Dimensions (H/W/D) |
660x1051x363 mm
|
| Weight |
95 kg
|
| Power Consumption at Night |
< 2 W
|
| Operating Temperature | -30 ~ +60 ℃ |
| Transformer | Transformerless |
| Protection Class | IP66 |
| Humidity | 0-100 % |
| Cooling | Fan |
| Max. Altitude | 4000 m |
| Interface | RS 485, Bluetooth |
| Display | LED |
| Protection Features | |
| Protection Features | Anti Island Protection(ENS), Short Circuit Protection, Surge Protection, Grid Monitoring |
