SKF CR99340 Speedi-Sleeve

Product Description:

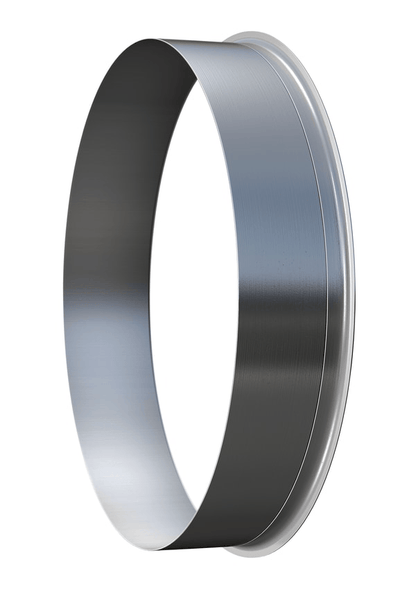

The SKF 99340 Speedi-Sleeve is an innovative and cost-effective solution for repairing worn or damaged shafts. This thin-walled sleeve, designed by SKF, fits over the shaft to provide a smooth counterface optimized for radial shaft seals, eliminating the need for expensive shaft treatments like machining or disassembly. The SKF Speedi-Sleeve Gold variant offers enhanced resistance to abrasive wear.

Key Features:

• Optimized Counter Surface: Ensures efficient seal performance.
• Cost-Effective Repair: Avoids complex and costly shaft repairs.
• Proven Solution: Extends the service life of shafts effectively.

Technical Specifications:

• Type: Standard
• Design: SSLV

Dimensions:

• Shaft Diameter Range: 3.477 in to 3.483 in
• Nominal Shaft Diameter: 3.48 in
• Removable Flange Outside Diameter: 3.835 in
• Nominal Width: 0.906 in
• Seal Seat Width: 0.781 in
• Nominal Thickness: 0.01 in

Logistics:

• Product Net Weight: 0.3111 lb
• eClass Code: 23-05-92-90
• UNSPSC Code: 31171605

For more information, visit the SKF product page.
