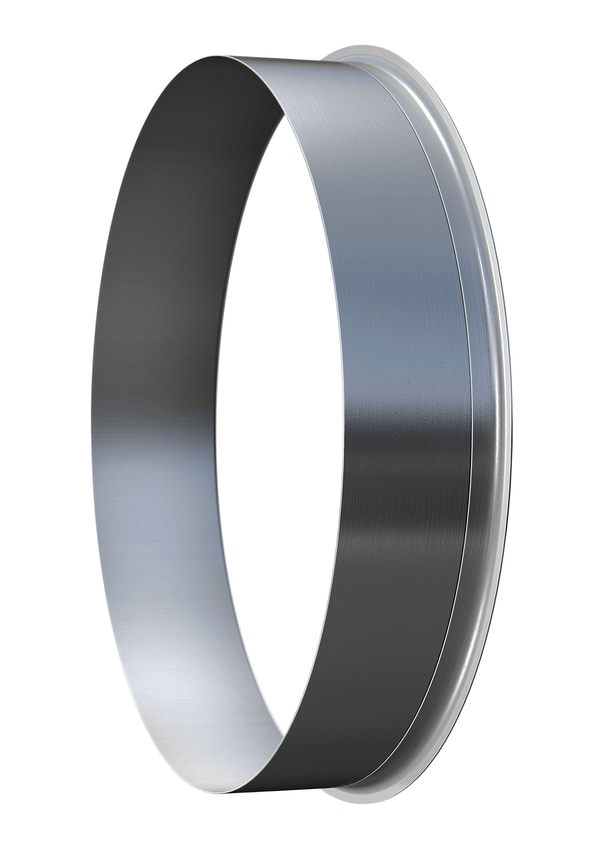

SKF CR99294 Speedi-Sleeve

Product Description:

The SKF 99294 Speedi-Sleeve is an efficient and cost-effective solution for repairing worn or damaged shafts. This thin-walled sleeve is designed to provide a smooth counterface optimized for radial shaft seals, eliminating the need for expensive shaft treatments like machining or disassembly. The SKF Speedi-Sleeve Gold variant offers enhanced resistance to abrasive wear.

Key Features:

• Optimized Counter Surface: Ensures efficient seal performance.
• Cost-Effective Repair Option: Reduces the need for complex shaft repair processes.
• Proven Reliability: Widely used for extending shaft life.

Technical Specifications:

• Type: Standard
• Design: SSLV

Dimensions:

• Shaft Diameter Range: 74.93 mm to 75.08 mm
• Nominal Shaft Diameter: 75.01 mm
• Removable Flange Outside Diameter: 83.95 mm
• Nominal Width: 26.01 mm
• Seal Seat Width: 22 mm
• Nominal Thickness: 0.25 mm

Logistics:

• Product Net Weight: 0.093 kg
• eClass Code: 23-05-92-90
• UNSPSC Code: 31171605

For more information, visit the SKF product page.
