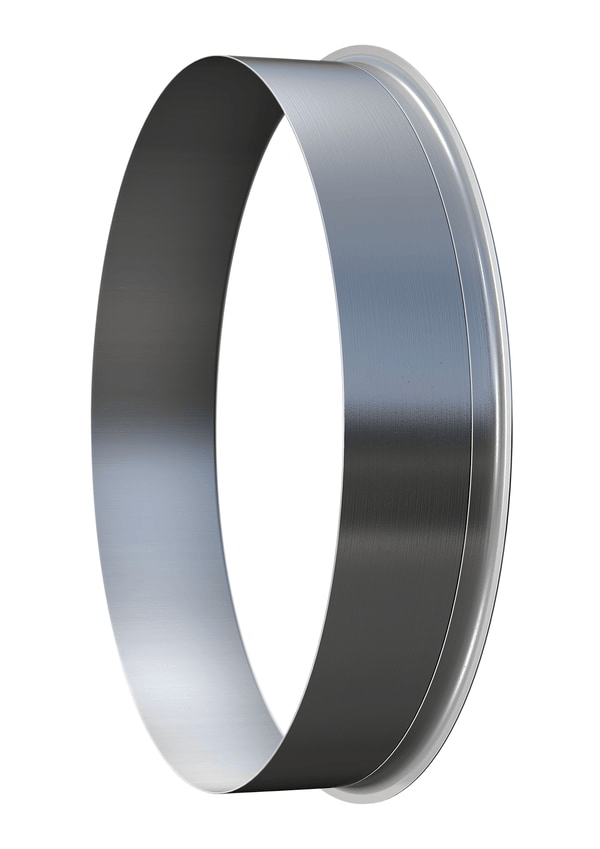

SKF CR99275 Speedi-Sleeve

Product Description:

The SKF 99275 Speedi-Sleeve offers an efficient solution for repairing worn or damaged shafts. This thin-walled sleeve is designed to be easily positioned over the shaft, providing a smooth counterface optimized for radial shaft seals. It eliminates the need for costly processes such as machining and disassembly. The SKF Speedi-Sleeve Gold variant provides enhanced resistance to abrasive wear.

Key Features:

• Optimized Counter Surface: Ensures seal performance and longevity.
• Cost-Effective Repair: Reduces the need for complex shaft treatments.
• Reliable and Proven Solution: Trusted for extending the life of shafts.

Technical Specifications:

• Type: Standard
• Design: SSLV

Dimensions:

• Shaft Diameter Range: 69.85 mm to 70 mm
• Nominal Shaft Diameter: 69.85 mm
• Removable Flange Outside Diameter: 79.38 mm
• Nominal Width: 23.83 mm
• Seal Seat Width: 19.84 mm
• Nominal Thickness: 0.25 mm

Logistics:

• Product Net Weight: 0.0141 kg
• eClass Code: 23-05-92-90
• UNSPSC Code: 31171605
