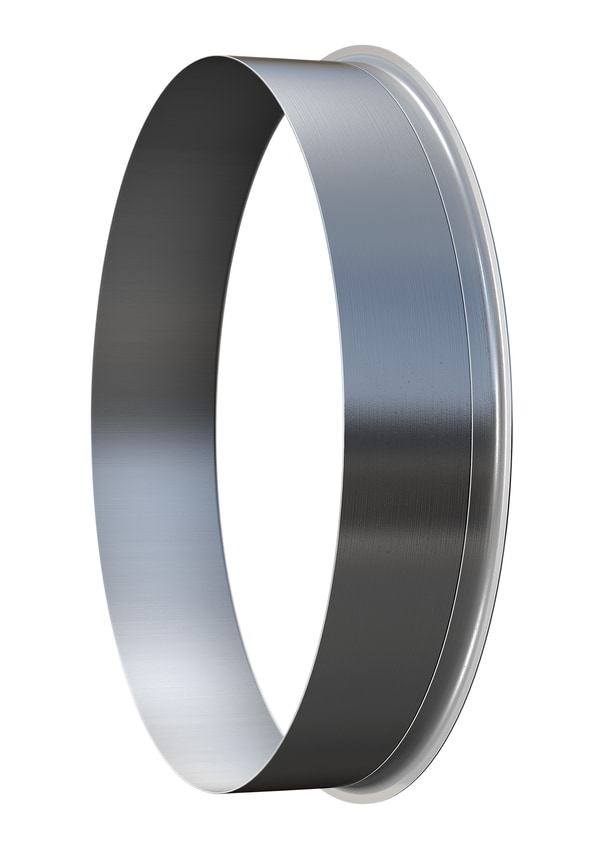

SKF CR99157 Speedi-Sleeve

Product Description:

The SKF 99157 Speedi-Sleeve offers a cost-effective solution for repairing worn or damaged shafts. This innovative thin-walled sleeve is designed to fit over the shaft, providing a smooth counterface optimized for radial shaft seals, thereby eliminating the need for expensive treatments such as machining or disassembly. The SKF Speedi-Sleeve Gold variant provides enhanced resistance to abrasive wear.

Key Features:

• Optimized Counter Surface: Ensures efficient seal performance and longevity.
• Cost-Effective Repair Solution: Reduces the need for complex shaft repairs.
• Reliable and Proven: Widely used for extending shaft life.

Technical Specifications:

• Type: Standard
• Design: SSLV

Dimensions:

• Shaft Diameter Range: 39.93 mm to 40.08 mm
• Nominal Shaft Diameter: 40.08 mm
• Removable Flange Outside Diameter: 46.99 mm
• Nominal Width: 16 mm
• Seal Seat Width: 13 mm
• Nominal Thickness: 0.25 mm

Logistics:

• Product Net Weight: 0.039 kg
• eClass Code: 23-05-92-90
• UNSPSC Code: 31171605

For more information, visit the SKF product page.
