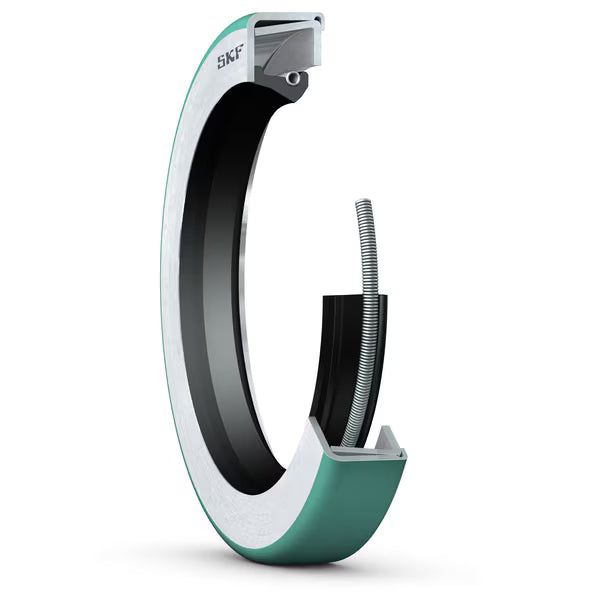

SKF 67515 LDS & Small Bore Seal

Product Description:

The 67515 Radial Shaft Seal from SKF is engineered with a double metal case and SKF Wave lip, specifically designed for oil or grease applications. This seal is ideal for use between rotating and stationary machine components or between components in relative motion.

Key Features:

• SKF WAVE Lip: Enhances the pumping rate, reducing heat generation and friction at the contact point.
• Double Metal Case: Offers robust support and stability.
• Garter Spring: Provides consistent pressure for optimal sealing.
• Bore Tite Coating: Fills small imperfections in the housing bore, ensuring a secure fit.

Technical Specifications:

• Design: CRWH1
• Sealing Lip Material: Nitrile Rubber (NBR)
• Outside Diameter Type: Metal-cased with sealant coating
• Unit System: Inch

Dimensions:

• Shaft Diameter (d1): 171.45 mm
• Housing Bore Diameter (D): 203.2 mm
• Seal Width (b): 12.7 mm

Performance:

• Limiting Speed: 1,320 r/min
• Operating Temperature Range: -40 °C to 100 °C
• Permissible Circumferential Speed: 12 m/s
• Pressure Differential: 0.07 N/mm²

Logistics:

• Product Net Weight: 0.249 kg
• eClass Code: 23-07-08-01
• UNSPSC Code: 31181602
