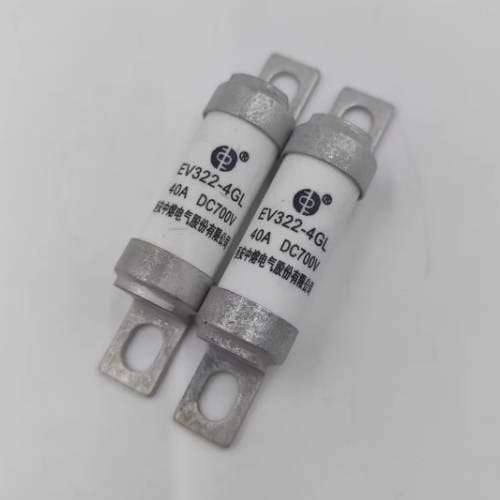

Sinofuse EV322-4GL50A 700VDC Series Fuse, 700VDC, 50A
Regular price
$12.00 USD
Regular price
Sale price
$12.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Sinofuse EV322-4GL50A is a 700VDC series fuse, specifically designed for use in road vehicles. It offers reliable protection with a compact and efficient design. With a high breaking capacity, this fuse adheres to standards including JASO D622, ISO 8820, and GB/T 31465, making it ideal for electric vehicle drive power systems and energy storage solutions.
Key Features
- Rated Voltage: 700VDC
- Rated Current: 50A
- Breaking Capacity: 50KA, L/R < 10ms
- Compliance: CE, RoHS
- Compact size with resistance to temperature shock, mechanical vibration, and chemical load
- Designed for EV systems and energy storage
Specifications
| Product ID | EV322-4GL50A |
| Series | 700VDC Road Vehicle Fuse |
| Rated Voltage | 700VDC |
| Rated Current | 50A |
| Breaking Capacity | 50KA, L/R < 10ms |
| Compliance | CE, RoHS |
