Siemens SQM48.697B9 Actuator, 35Nm, 90°/60s, CAN Bus, 14mm Shaft

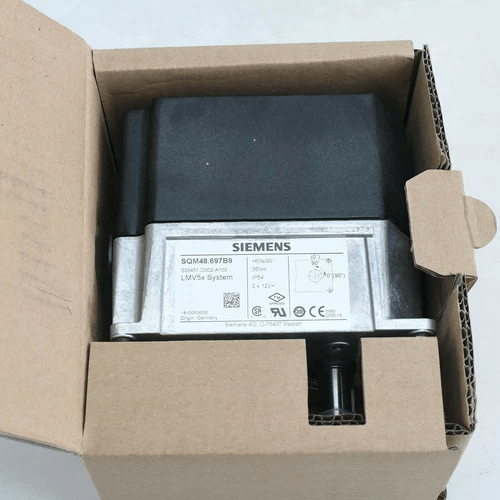

Siemens SQM48.697B9 Actuator

The Siemens SQM48.697B9 is an industrial-grade rotary actuator specifically designed for precise and reliable air damper control in burner applications. This robust device features a spur gear drive, optimized for demanding operational cycles and a long service life. Its integration capabilities via CAN bus ensure seamless communication within complex burner management systems.

Manufacturer Information:

• Manufacturer: Siemens Smart Infrastructure
• Part Number: SQM48.697B9
• Product Type: Rotary Actuator for Burner Controls
• Rated Torque: 35 Nm
• Holding Torque: 35 Nm
• Running Time for 90°: 60 seconds
• Angle of Rotation: 90°
• Shaft Diameter: 14 mm (with keyway)
• Operating Voltage: Power supply via CAN bus
• Communication Interface: CAN bus
• Ambient Operating Temperature: -20…60 °C
• Protection Category: IP54
• Weight: Approximately 1.6 kg
• Mounting: Various mounting orientations possible
• Operation: Suitable for modulating or 2-position control
• Features: Integrated spur gear drive for robust performance.
