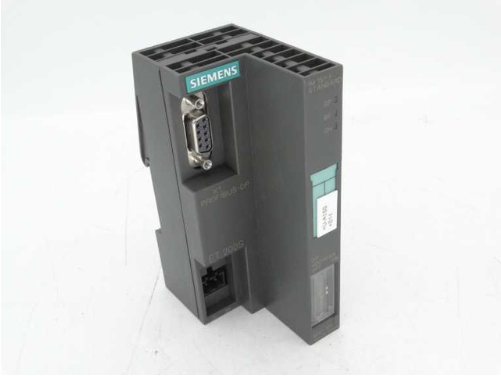

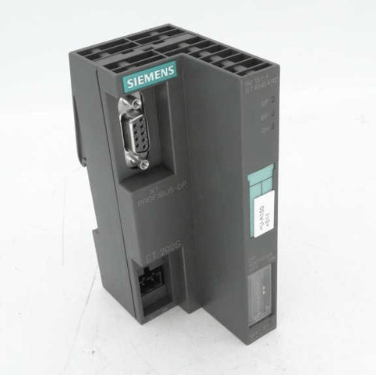

Siemens 6ES7151-1AA05-0AB0 SIMATIC DP Interface Module, 244 Byte, PROFIBUS DP
Regular price
$170.00 USD
Regular price
Sale price
$170.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
| Product Name | SIMATIC DP Interface Module |
| Product ID | 6ES7151-1AA05-0AB0 |
| Vendor Identification (VendorID) | 806Ah |
| Supply Voltage | Mains buffering, min. 20 ms |
| Input Current from Supply Voltage 1L+, max. | 200 mA |
| Power Loss, typ. | 3.3 W |
| Addressing Volume | Inputs 244 byte, Outputs 244 byte |
| Interface Physics, RS 485 | Yes ; 9-pin sub D socket |
| PROFIBUS DP Output Current, max. | 80 mA |
| Transmission Rate, max. | 12 Mbit/s ; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s |
| SYNC and FREEZE Capability | Yes |
| Direct Data Exchange | Yes |
| Cable Length, max. | 1200 m |
| Operating Temperature Range | 0 °C to 60 °C |
| Dimensions (Width x Height x Depth) | 45 mm x 119.5 mm x 75 mm |
| Weight, approx. | 150 g |
