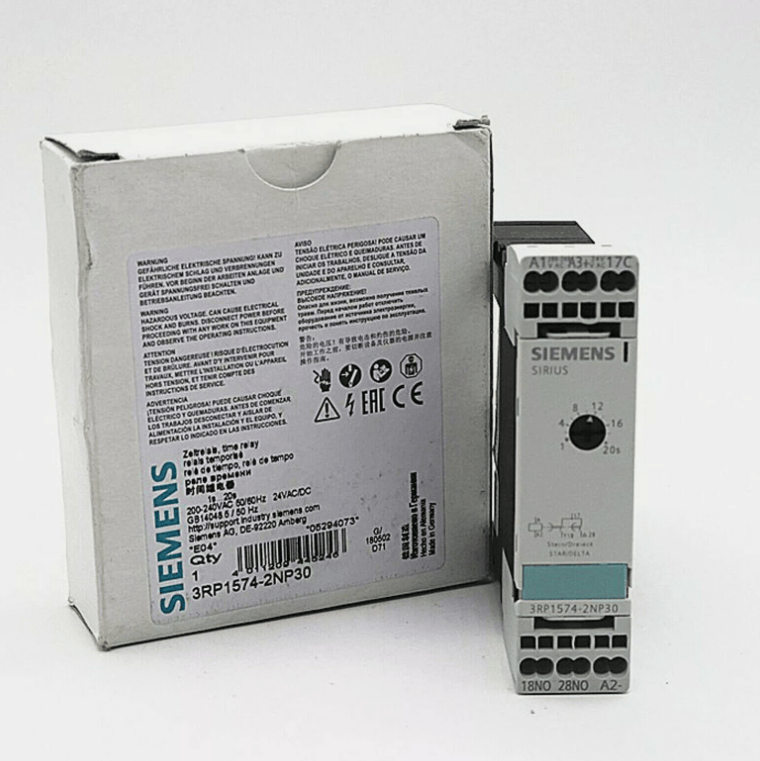

SIEMENS 3RP1574-2NP30 Timing relay

Timing Relay 3RP1574-2NP30 (Phased-Out)

Product Description: Timing relay with spring-type terminal, 1 NO (Normally Open) contact, delayed 1 NO contact instantaneous, 1 time range (1...20 s), 24 V AC/DC, 200-240 V AC at 50/60 Hz AC.

Product Lifecycle:

• PLM: PM490: Start of final year of support
• Discontinued Since: 01.10.2021

Notes:

• This product is no longer available.
• The preferred successor is 3RP2574-2NW30.
• For assistance, please contact your local Siemens office.

Delivery Information:

• Export Control Regulations: ECCN: N / AL: N
• Estimated Dispatch Time: 15 Working Days
• Net Weight: 0.113 kg
• Packaging Dimension: 28.50 x 89.50 x 102.00 mm
• Packaging Quantity: 1 Piece

Additional Product Information:

• EAN: 4011209445246
• UPC: 754554871820
• Commodity Code: 85364900
• LKZ_FDB/ CatalogID: CC-IC10
• Product Group: 5817
• Group Code: R711
• Country of origin: Germany
• RoHS Compliance: Since: 28.05.2009
• Product Class: C (products manufactured to order, not reusable or returnable)
• WEEE: Yes (Take-Back Obligation)
• REACH Art. 33: Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)
• SCIP Number: 2328af75-de17-4a5f-af1f-7e71884a9357

Please note: This product is no longer manufactured or sold by Siemens. For current product offerings, please refer to the successor product, 3RP2574-2NW30, or contact your local Siemens office.
