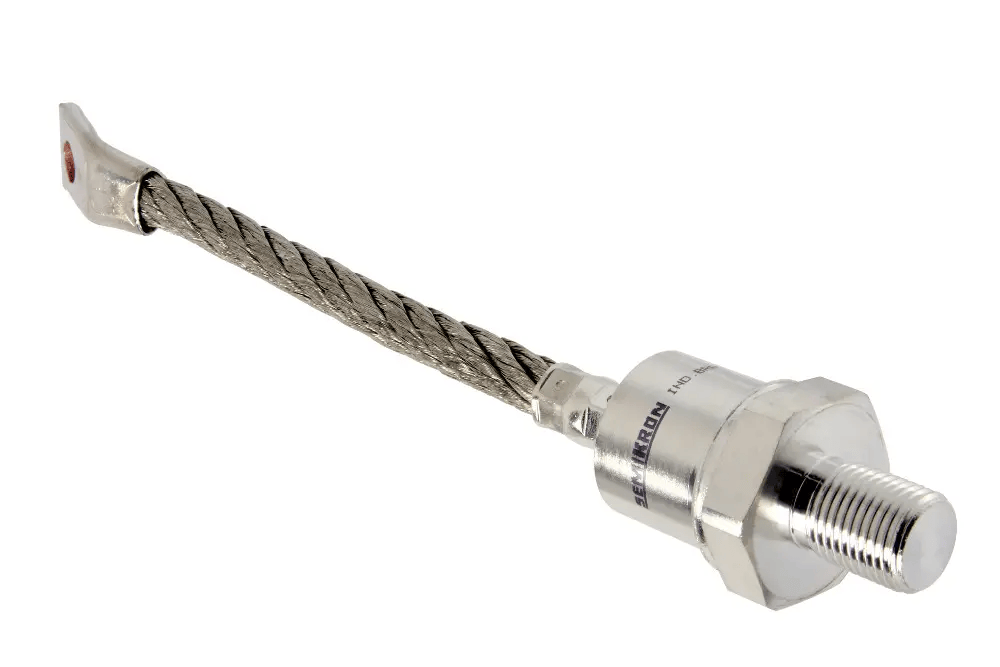

SEMIKRON SKN240/16 Standard Rectifier Diode, 240A 1600V, Cathode-to-Stud, M24x1.5 Thread - Pack of 3

SEMIKRON SKN240/16 Standard Rectifier Diode (240A, 1600V)

The SEMIKRON SKN240/16 is a high-power, stud-mount standard rectifier diode designed for robust performance in demanding industrial applications. Engineered for reliability, this component delivers an average forward current of 240 Amps and a high reverse voltage capability of 1600 Volts. Its rugged threaded stud design ensures secure mechanical mounting and provides an efficient thermal path for heat dissipation. The hermetically sealed glass-metal case guarantees long-term stability and performance, even in harsh operating environments, making it an ideal choice for power rectification, high-current power supplies, and industrial drive systems.

Manufacturer Information:

• Manufacturer: SEMIKRON
• Part Number: SKN240/16
• Product Type: Standard Rectifier Diode
• Average Forward Current (I_FAV): 240 A (at T_case = 130 °C)
• Repetitive Peak Reverse Voltage (V_RRM): 1600 V
• Package / Case: Threaded Stud Mount
• Thread Size: M24 x 1.5
• Polarity: Cathode to Stud (Normal Polarity)
• Peak Surge Forward Current (I_FSM): 5500 A (at 10 ms, T_j = 25 °C)
• Max Forward Voltage (V_F): ≤ 1.45 V (at I_F = 900 A, T_j = 25 °C)
• Operating Junction Temperature (T_j): -40 °C to 200 °C
