Semikron SKN 240/12 Rectifier Diode, 240A 1200V, Stud Mount, - Pack of 3

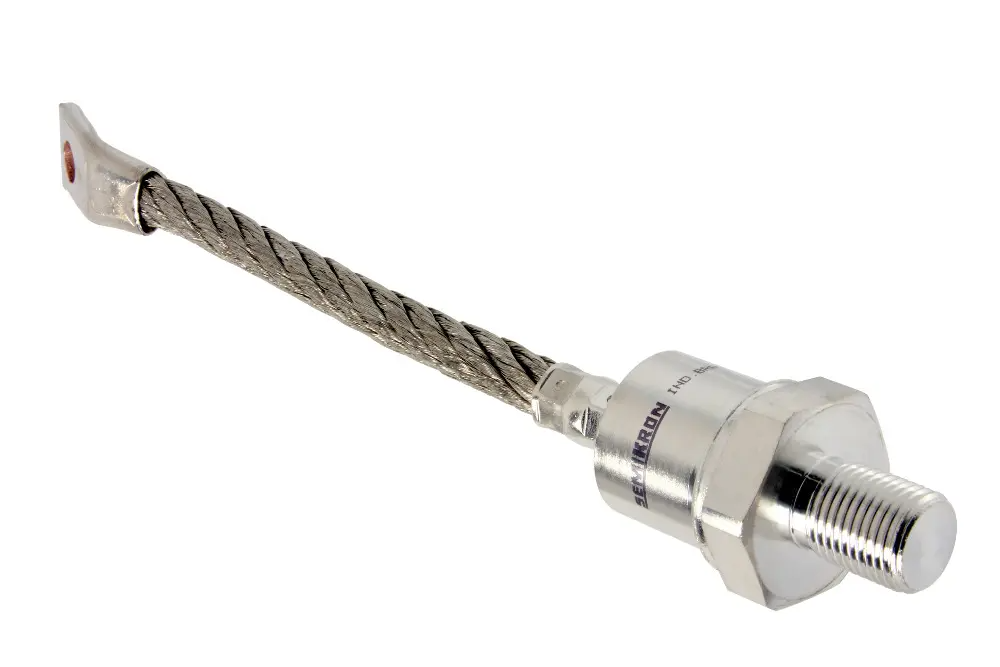

Semikron SKN 240/12 High-Power Rectifier Diode (240A, 1200V)

The Semikron SKN 240/12 is a high-power standard rectifier diode, engineered for demanding industrial power conversion applications. Housed in a robust, hermetically sealed metal stud case, this component delivers a reliable average forward current of 240A and a high repetitive peak reverse voltage of 1200V. Its design prioritizes excellent thermal conductivity and mechanical stability, making it an ideal choice for high-current rectification in power supplies, battery chargers, and motor control circuits where performance and long-term reliability are paramount.

Manufacturer Information:

• Manufacturer: Semikron
• Part Number: SKN 240/12
• Product Type: Rectifier Diode (Standard Recovery)
• Average Forward Current (IFAV): 240 Amps (A)
• Repetitive Peak Reverse Voltage (VRRM): 1200 Volts (V)
• Package / Case: Stud Mount, Metal Case with Glass Insulator
• Termination Type: Screw Terminal (Stud)
• Thread Size: M16 x 1.5
• Polarity: Standard (Stud is the Anode)
• Peak Surge Forward Current (IFSM): 5500 A (for 10 ms, sine 50 Hz)
• Maximum Junction Temperature (Tj max): 180 °C
