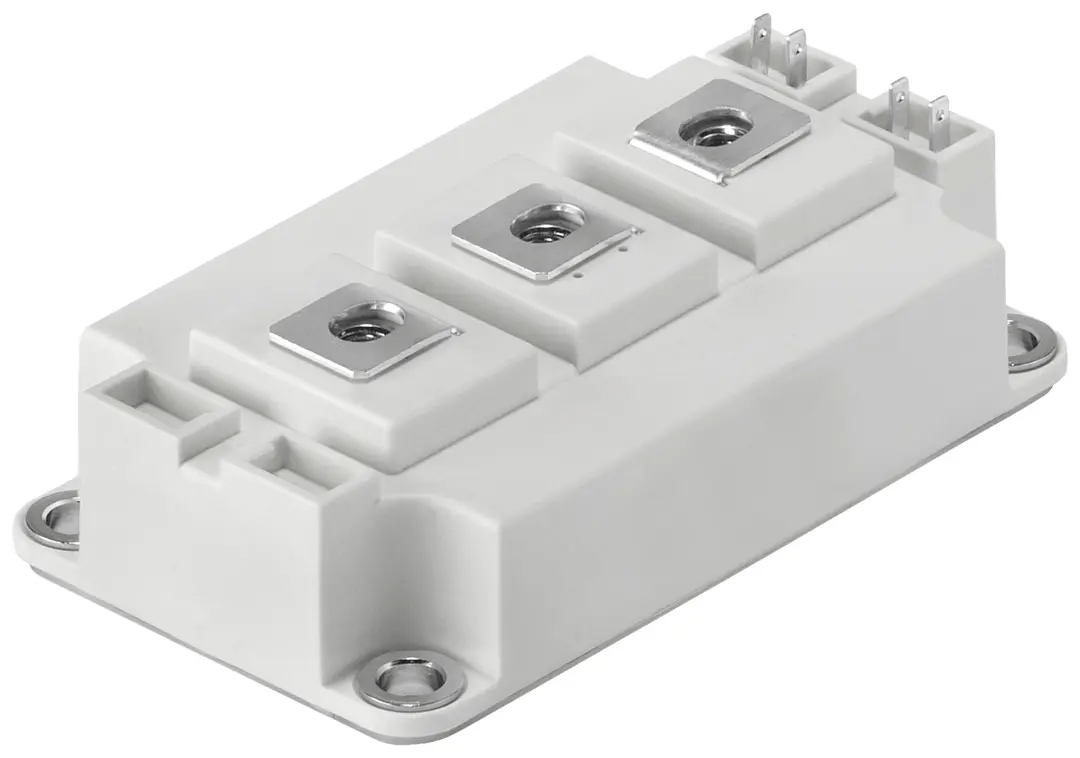

Semikron Danfoss SKM300GBD12T4 IGBT Module, 1200V 300A, Half-Bridge, TRENCHSTOP™ IGBT4 – Pack of 2

Semikron Danfoss SKM300GBD12T4 IGBT Module

The Semikron Danfoss SKM300GBD12T4 is a high-performance IGBT (Insulated Gate Bipolar Transistor) module, specifically a half-bridge configuration, designed for robust power conversion applications. Utilizing advanced TRENCHSTOP™ IGBT4 technology with an optimized emitter controlled diode, this module offers excellent electrical characteristics, including low switching losses and high reliability. It is an ideal choice for a wide range of industrial power electronics, from motor drives and renewable energy inverters to uninterruptible power supplies.

Manufacturer Information:

• Manufacturer: Semikron Danfoss
• Part Number: SKM300GBD12T4
• Product Type: IGBT Module
• Configuration: Half-Bridge
• Collector-Emitter Voltage (Vces): 1200 V
• Collector Current (Ic nom): 300 A (at Tc = 80°C)
• Technology: TRENCHSTOP™ IGBT4 with optimized Emitter Controlled Diode
• Housing/Package: SEMIX 3 (Typical Semikron housing for these ratings)
• Isolation Voltage (Visol): Typically 3600 V AC (1 min)
• TJmax: Typically 175°C (Operating Junction Temperature)
• Gate-Emitter Voltage (Vge): ±20 V
• Key Features:
  • Low inductance for efficient operation
  • Optimized for low switching losses in a variety of switching frequencies
  • High short-circuit capability
  • Integrated NTC thermistor for temperature monitoring
  • RoHS compliant
