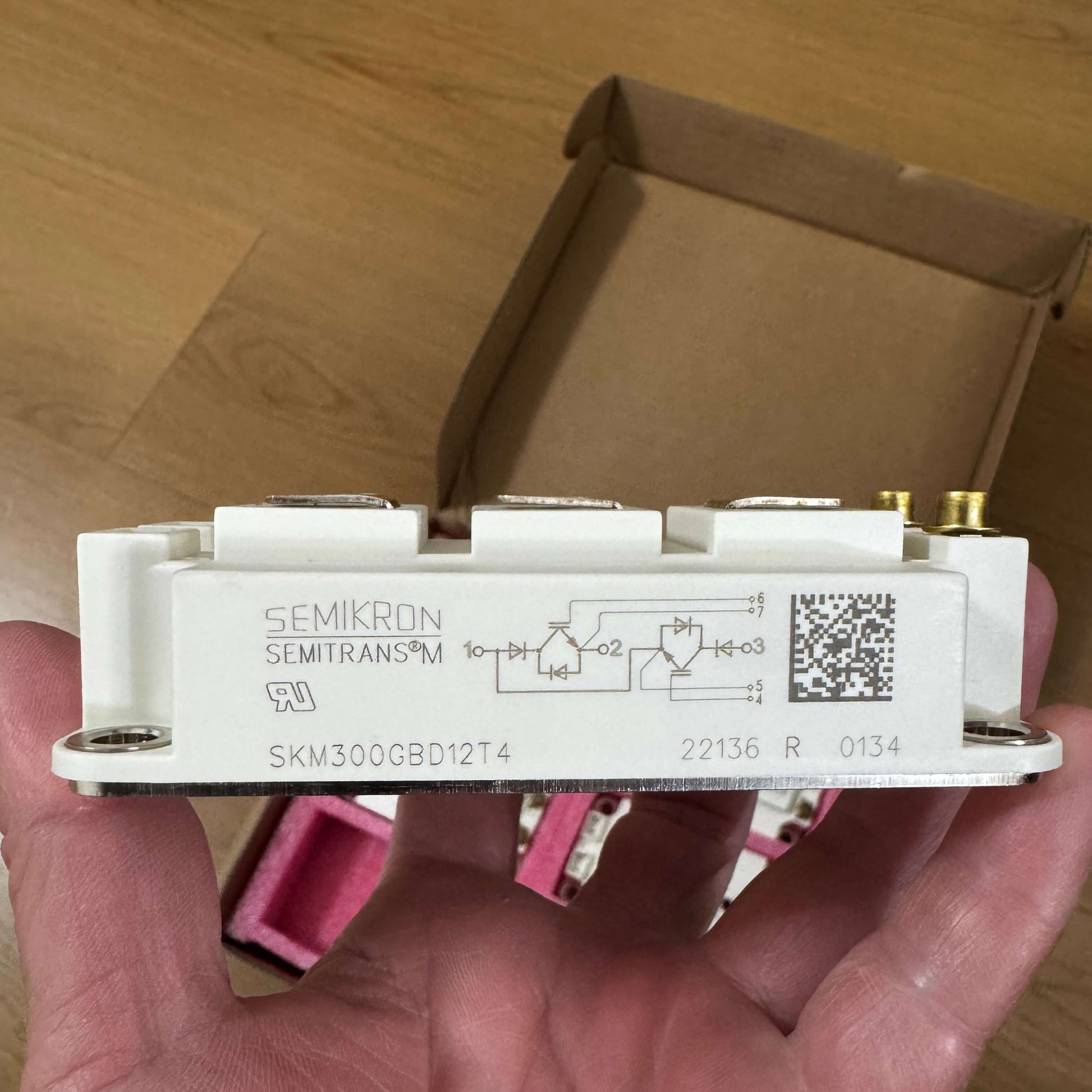

Semikron Danfoss 22892212 SEMITRANS 3 SKM300GBD12T4, IGBT 4 Fast Trench, 300A, 1200V, 106x62x31

Overview: The Semikron Danfoss SKM300GBD12T4 is a high-power IGBT module from the SEMITRANS 3 product line, designed for demanding industrial power conversion applications. It utilizes Infineon's 4th generation fast trench IGBT (IGBT4) technology paired with a soft switching CAL4 diode, enabling efficient operation at higher switching frequencies up to 20kHz. The module features a half-bridge topology, an insulated copper baseplate using DBC technology, and an integrated gate resistor for simplified drive design.

Key Features:

• High-power IGBT module in the compact SEMITRANS 3 package.
• Rated for 1200V and 300A continuous current.
• Utilizes Infineon IGBT4 Fast Trench and CAL4 diode technology.
• Designed for higher switching frequencies (up to 20kHz).
• Insulated copper baseplate using Direct Bonded Copper (DBC) technology for improved thermal performance and power cycling capability.
• Integrated gate resistor simplifies external circuitry.
• Half-bridge topology suitable for inverters and converters.
• UL recognized (file no. E63532).
