Telemecanique XY2CD111 XY2C Simple Rope Pull Switch, 240 VAC, 10 A
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

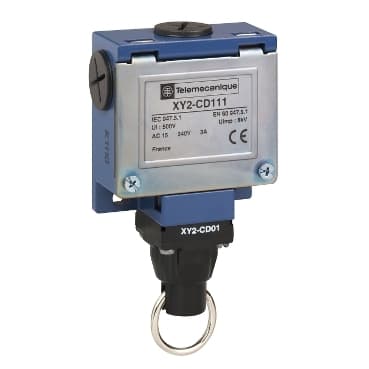

Telemecanique XY2CD111 is a blue-housing simple rope pull switch from the XY2C emergency stop range. Designed for reliable machine safety, it supports cable lengths up to 6 m, carries IP66 protection, and delivers snap-action switching with a 1 NC + 1 NO contact set at 240 VAC.
- Emergency stop rope pull switch, XY2C series
- Us rated supply voltage: 240 VAC
- 1 NC + 1 NO, snap-action contacts
- IP66 ingress protection
- Mechanical life: 1.5 million cycles
- Rugged Zamak body with plastic head
| Product ID | XY2CD111 |
| Range | Telemecanique Emergency Stop Rope Pull Switches XY2C |
| Product Type | Simple rope pull switch |
| Device Short Name | XY2CD |
| Housing Colour | Blue |
| Overvoltage Category | Class I (IEC 61140 & NF C 20-030) |
| Trigger Cable Max Length | 6 m |
| Body Material | Zamak |
| Head Material | Plastic |
| Rated Supply Voltage (Us) | 240 V |
| Contacts Type & Composition | 1 NC + 1 NO |
| Contact Operation | Snap action |
| Resistance to Wrenching (Head) | 237 daN |
| Resistance to Wrenching (Ring) | 36 daN |
| Cable Entry | 3 × Pg11 |
| Mechanical Durability | 1 500 000 cycles |
| Rated Operational Current (AC-15) | 3 A @ 240 V (A300) |
| Rated Operational Current (DC-13) | 0.27 A @ 250 V (Q300) |
| Conventional Thermal Current (Ithe) | 10 A |
| Rated Insulation Voltage (IEC) | 400 V (Pollution degree 3) |
| Rated Insulation Voltage (UL) | 300 V |
| Rated Insulation Voltage (CSA) | 300 V |
| Compatibility Code | XY2CD |
| Certifications | CCC, CE |
| Operating Temperature | -20 … 70 °C |
| IP Rating | IP66 (IEC 60529) |
| Package 1 Dimensions (H×W×L) | 3.2 cm × 6.5 cm × 14.6 cm |
| Package 1 Weight | 285 g |
| Package 2 Units / Weight | 16 pcs / 4.745 kg |
| Package 2 Dimensions (H×W×L) | 15 cm × 15 cm × 40 cm |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | Contains DINP (cancer) & DIDP (reproductive harm) |
