Schneider TM2DMM16DRTN I/O Expansion Module, 8-Channel Digital Input and Output, Modicon M221 Series

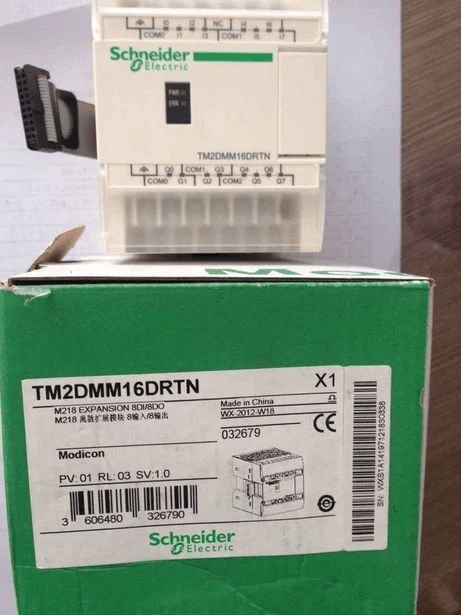

Schneider TM2DMM16DRTN I/O Expansion Module

Product Overview: The Schneider TM2DMM16DRTN is a high-performance I/O expansion module designed for the Modicon M221 logic controller, part of Schneider Electric's comprehensive automation solution. This versatile module provides 8 channels of digital input and output functionality, making it ideal for industrial automation applications requiring flexible and reliable digital signal processing capabilities.

Key Features:

• 8-Channel Configuration: 8 digital input/output channels for versatile application support
• Modicon M221 Compatibility: Designed specifically for seamless integration with Modicon M221 controllers
• Compact Design: Space-saving modular design for efficient cabinet installation
• High Reliability: Built to meet industrial standards for durability and performance
• Easy Installation: Simple plug-and-play installation with screw terminal connections
• LED Status Indicators: Visual indicators for channel status and diagnostic information
• Wide Operating Temperature Range: Suitable for demanding industrial environments

Technical Specifications:

• Manufacturer: Schneider Electric
• Part Number: TM2DMM16DRTN
• Product Series: Modicon M221 I/O Modules
• Channel Configuration: 8 Digital Input/Output Channels
• Operating Voltage: 24 VDC
• Input Type: Digital (Sink/Source compatible)
• Output Type: Digital (Transistor outputs)
• Connection Type: Screw terminals
• Diagnostic Features: LED indicators for status and fault detection
• Operating Temperature Range: -20°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Dimensions: 90mm x 70mm x 62mm (H x W x D)
• Weight: Approximately 150g
