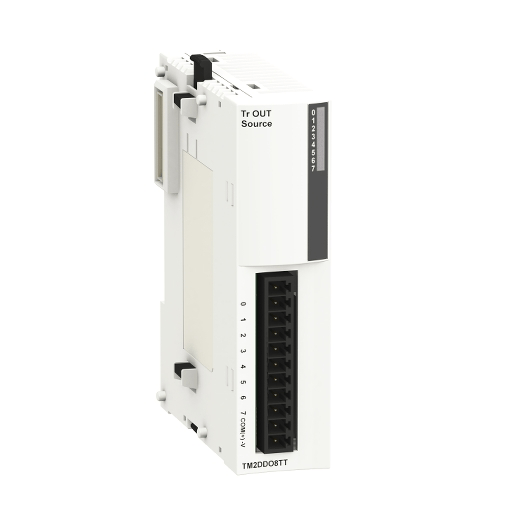

Product Overview: The Schneider TM2DDO8TT is a dedicated discrete output expansion module designed to extend the digital output capabilities of Modicon M238 logic controllers. This module provides 8 high-speed transistor outputs, operating at 24V DC with source logic, making it ideal for rapidly switching loads in demanding industrial automation applications. Featuring a convenient removable screw terminal block, built-in short-circuit and overload protection, and an exceptionally fast response time, the TM2DDO8TT offers a reliable, robust, and efficient solution for controlling various actuators and indicators. It is also compatible with Twido and Advantys OTB ranges.

Key Features:

• 8 Transistor Outputs: Provides eight independent, high-speed transistor output channels for precise control.
• 24VDC Source Logic: Operates with 24V DC and configured for source logic, compatible with common industrial loads.
• Removable Screw Terminal: Ensures flexible, secure, and user-friendly wiring connections, simplifying installation and maintenance.
• Rapid Response Time: Delivers ultra-fast switching with a response time of 450 µs for both turn-on and turn-off, crucial for time-sensitive applications.
• Integrated Protections: Equipped with automatic reactivation for short-circuit and overload protection, enhancing system reliability and longevity.
• High Current Capacity: Offers a discrete output current of 0.5 A per channel (0.6 A continuous per channel) and a maximum of 4 A per output common.
• Robust Isolation: Provides 500 V isolation between channels and internal logic for enhanced electrical safety and signal protection.
• Compact & DIN Rail Mountable: Space-saving design optimized for efficient panel integration on a standard 35 mm symmetrical DIN rail.
• Broad Compatibility: Primarily designed for Modicon M238 logic controllers, also compatible with Twido and Advantys OTB series.

Technical Specifications:

• Manufacturer: Schneider Electric
• Part Number: TM2DDO8TT
• Product Series: Modicon M238 I/O Modules
• Product Type: Discrete Output Module / I/O Expansion Module
• Number of Discrete Outputs: 8 channels
• Discrete Output Type: Transistor
• Discrete Output Voltage: 24 V DC
• Discrete Output Logic: Source
• Discrete Output Current (Rated): 0.5 A
• Current per Channel (Continuous): 0.6 A
• Maximum Current per Output Common: 4 A
• Output Voltage Limits: 20.4...28.8 V
• Number of Common Points: 1
• Response Time:
  • 450 µs (from state 0 to state 1)
  • 450 µs (from state 1 to state 0)
• Residual Voltage (Ures): 0.4 V at state 1
• Maximum Leakage Current: 0.1 mA
• Maximum Inductive Load: 10 mH
• Maximum Tungsten Load: 12 W
• Protections:
  • Short-circuit protection (with automatic reactivation)
  • Overload protection (with automatic reactivation)
• Isolation: 500 V for 1 minute (between channels and internal logic)
• Current Consumption:
  • 10 mA at 5 V DC (for all outputs at state 1)
  • 20 mA at 24 V DC (for all outputs at state 1)
• Local Signalling: 1 display block
• Electrical Connection: 1 removable screw terminal block
• Mounting Support: 35 mm symmetrical DIN rail
• Dimensions (WxDxH): 27.3 mm x 84.6 mm x 90 mm (1.07 in x 3.3 in x 3.5 in)
• Net Weight: 0.085 kg (0.187 lb US)
