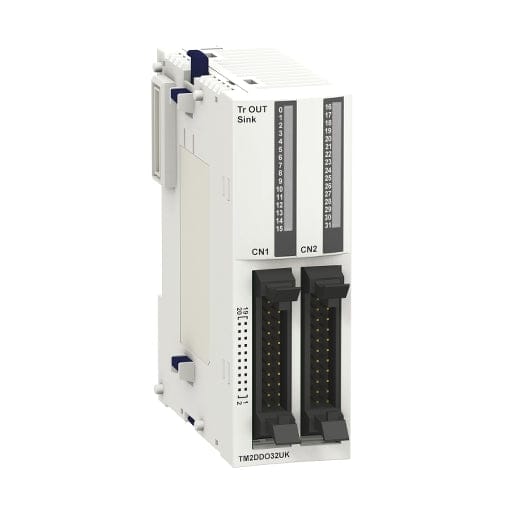

Schneider TM2DDO32UK Discrete Output Module, 32x 24VDC Transistor Outputs (Sink), 0.1A/Ch, HE10 Connector, for Modicon M238 Logic Controllers

Schneider TM2DDO32UK Discrete Output Module

Product Overview: The Schneider TM2DDO32UK is a high-density discrete output expansion module meticulously engineered to broaden the digital control capabilities of Modicon M238 logic controllers. This compact unit integrates 32 transistor outputs, each providing a 24V DC sink logic signal, making it exceptionally well-suited for high-speed switching applications that require precise control over numerous low-current devices. Featuring exceptionally fast response times and a space-efficient HE10 connector for streamlined wiring, the TM2DDO32UK delivers a reliable and efficient solution for controlling a wide array of industrial loads such as indicator lights, LEDs, and small signal relays, especially where external short-circuit and overload protection are part of the system design. It is also compatible with Twido and Advantys OTB ranges.

Key Features:

• 32 High-Density Transistor Outputs: Offers thirty-two independent 24VDC sink logic output channels, enabling extensive digital control in a compact form factor.
• Ultra-Fast Response Times: Delivers rapid switching with 300 µs response times (both On and Off), crucial for time-sensitive control applications.
• Current Capacity: Each channel is capable of switching 0.1 A, with a maximum of 1 A per output common, ideal for light-duty loads.
• Dual Common Points: Designed with two common points, offering flexible wiring configuration for the 32 outputs.
• HE10 Electrical Connection: Utilizes a standard HE10 connector for compact and efficient wiring of multiple outputs, optimizing panel organization.
• Robust Isolation: Features 500 V isolation between output channels and internal logic for enhanced electrical safety and signal integrity.
• Compact & DIN Rail Mountable: Space-saving dimensions and designed for convenient installation on a standard 35 mm symmetrical DIN rail.
• Protection Considerations: Note that this module does not include built-in short-circuit or overload protection; appropriate external protection measures must be integrated into the control system.
• Broad Compatibility: Primarily designed for Modicon M238 logic controllers, also compatible with Twido and Advantys OTB series.

Technical Specifications:

• Manufacturer: Schneider Electric
• Part Number: TM2DDO32UK
• Product Series: Modicon M238 I/O Modules
• Product Type: Discrete Output Module / I/O Expansion Module
• Discrete Output Number: 32 channels
• Discrete Output Type: Transistor
• Discrete Output Voltage: 24 V DC
• Discrete Output Logic: Sink
• Discrete Output Current (Nominal): 0.1 A per channel
• Current per Channel (Max): 0.12 A
• Output Voltage Limits: 20.4...28.8 V
• Maximum Current per Output Common: 1 A
• Number of Common Points: 2
• Response Time:
  • 300 µs (from state 0 to state 1)
  • 300 µs (from state 1 to state 0)
• Residual Voltage: 1 V at state 1
• Maximum Tungsten Load: 8 W
• Short-circuit Protection: Without
• Overload Protection: Without
• Isolation:
  • Between channels: None
  • Between channels and internal logic: 500 V for 1 minute
• Current Consumption:
  • 20 mA (5 V DC at state 1 for all output)
  • 70 mA (24 V DC at state 1 for all output)
• Local Signalling: 2 display blocks
• Electrical Connection: 1 connector HE10
• Mounting Support: 35 mm symmetrical DIN rail
• Dimensions (WxDxH): 33.5 mm x 81.3 mm x 90 mm (1.3 in x 3.2 in x 3.5 in)
• Net Weight: 0.105 kg (0.231 lb US)
• Range Compatibility: Modicon M238 logic controller, Advantys OTB, Twido

Applications:

The Schneider TM2DDO32UK discrete output module is ideally suited for industrial control and automation applications requiring a large number of precise, high-speed digital output controls for low current loads, where external circuit protection is a system consideration. Typical applications include:

• Large-Scale Indicator & Alarm Systems: Driving numerous LEDs, indicator lights, and low-current annunciators.
• Automated Test Equipment (ATE): Providing rapid control signals and triggers for complex test sequences.
• Sorting & Inspection Systems: Actuating numerous small mechanisms or signalling devices based on inspection results.
• High-Density Machine Control: Expanding output capabilities in space-constrained control panels for light-duty, high-speed actuation.
• Semiconductor Manufacturing: Applications requiring rapid and reliable control of numerous process elements with low current demands.
• Any application demanding extensive and efficient digital output expansion for Modicon M238, Twido, or Advantys OTB PLCs, especially where system-level protection is managed externally.
