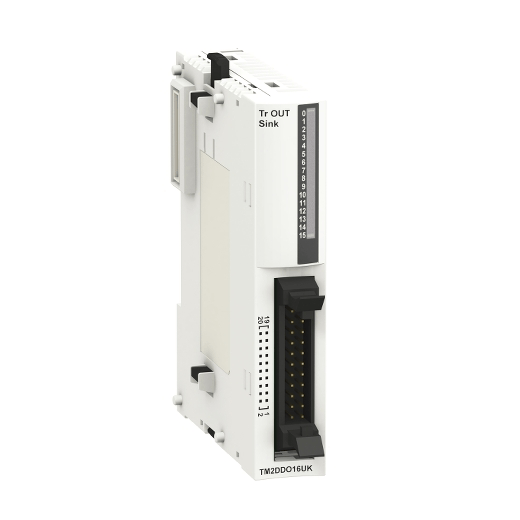

Schneider TM2DDO16UK Discrete Output Module, 16x 24VDC Transistor Outputs (Sink), 0.1A/Ch, HE10 Connector, for Modicon M238 Logic Controllers

Schneider TM2DDO16UK Discrete Output Module

Product Overview: The Schneider TM2DDO16UK is a high-density discrete output expansion module specifically engineered to augment the digital control capabilities of Modicon M238 logic controllers. This compact module provides 16 transistor outputs, each delivering a 24V DC sink logic signal, making it suitable for high-speed switching applications that require precise control. With its exceptionally fast response times and a space-saving HE10 connector for streamlined wiring, the TM2DDO16UK offers a reliable and efficient solution for controlling a wide array of industrial loads, such as small indicator lights, LEDs, or other low-current devices, especially in applications where external short-circuit and overload protection is implemented. It is also compatible with Twido and Advantys OTB ranges.

Key Features:

• 16 High-Density Transistor Outputs: Offers sixteen independent 24VDC sink logic output channels for precise digital control.
• Fast Response Times: Delivers rapid switching with 300 µs response times (both On and Off), ideal for time-critical control applications.
• Current Capacity: Each channel is capable of switching 0.1 A, with a maximum of 1 A per output common.
• HE10 Electrical Connection: Utilizes a standard HE10 connector for compact and efficient wiring of multiple outputs, optimizing panel space.
• Reliable Isolation: Features 500 V isolation between output channels and internal logic for enhanced electrical safety and signal integrity.
• Compact & DIN Rail Mountable: Space-saving design optimized for efficient panel integration on a standard 35 mm symmetrical DIN rail.
• Consideration for Protection: Important to note that this module does not include built-in short-circuit or overload protection; external protection measures should be integrated into the system design.
• Broad Compatibility: Primarily designed for Modicon M238 logic controllers, also compatible with Twido and Advantys OTB series.

Technical Specifications:

• Manufacturer: Schneider Electric
• Part Number: TM2DDO16UK
• Product Series: Modicon M238 I/O Modules
• Product Type: Discrete Output Module / I/O Expansion Module
• Discrete Output Number: 16 channels
• Discrete Output Type: Transistor
• Discrete Output Voltage: 24 V DC
• Discrete Output Logic: Sink
• Discrete Output Current (Nominal): 0.1 A per channel
• Current per Channel (Max): 0.12 A
• Output Voltage Limits: 20.4...28.8 V
• Maximum Current per Output Common: 1 A
• Number of Common Points: 1
• Response Time:
  • 300 µs (from state 0 to state 1)
  • 300 µs (from state 1 to state 0)
• Residual Voltage: 1 V at state 1
• Maximum Tungsten Load: 8 W
• Short-circuit Protection: Without
• Overload Protection: Without
• Isolation:
  • Between channels: None
  • Between channels and internal logic: 500 V for 1 minute
• Current Consumption:
  • 10 mA (5 V DC at state 1 for all output)
  • 40 mA (24 V DC at state 1 for all output)
• Local Signalling: 2 display blocks
• Electrical Connection: 1 connector HE10
• Mounting Support: 35 mm symmetrical DIN rail
• Dimensions (WxDxH): 21.4 mm x 81.3 mm x 90 mm (0.8 in x 3.2 in x 3.5 in)
• Net Weight: 0.07 kg (0.15 lb US)
• Range Compatibility: Modicon M238 logic controller, Twido, Advantys OTB

Applications:

The Schneider TM2DDO16UK discrete output module is ideally suited for industrial control and automation applications requiring high-density, precise, and fast digital output control where external load protection is provided, including:

• High-Speed Device Activation: Driving low-current solid-state relays, indicator lights, or small LED arrays.
• Signal Level Shifting: Interfacing the PLC with external devices expecting a 24V DC sink signal.
• Compact Machine Control: Expanding output capabilities in space-constrained control panels for light-duty actuation.
• Test & Measurement Systems: Providing precise output triggers or control signals for testing equipment.
• Semiconductor Manufacturing: Applications requiring rapid and reliable control of process elements with light loads.
• Any application demanding efficient digital output expansion for Modicon M238, Twido, or Advantys OTB PLCs, with consideration for required external protection circuitry.
