Schneider TM2DDO16TK Discrete Output Module, 16x 24VDC Transistor Outputs (Source), 0.4A/Ch, HE10 Connector, for Modicon M238 Logic Controllers

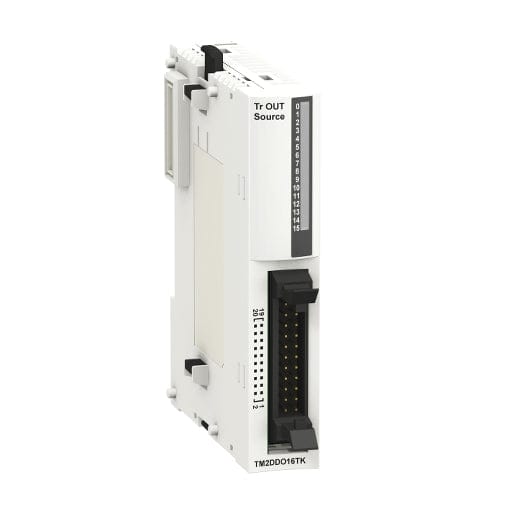

Schneider TM2DDO16TK Discrete Output Module

Product Overview: The Schneider TM2DDO16TK is a high-density discrete output expansion module specifically engineered to enhance the digital control capabilities of Modicon M238 logic controllers. This compact and efficient module offers 16 transistor outputs, each providing a 24V DC source logic signal, ideal for high-speed switching applications. With its rapid response times, integral short-circuit and overload protection with automatic reactivation, and a space-saving HE10 connector for streamlined wiring, the TM2DDO16TK provides a reliable and precise solution for controlling a wide array of industrial loads, including solid-state relays, indicator lights, and small contactors. It is also compatible with Twido and Advantys OTB ranges.

Key Features:

• 16 High-Density Transistor Outputs: Provides sixteen 24V DC source logic outputs for high-speed digital control.
• Robust Output Protection: Includes short-circuit and overload protection with automatic reactivation, enhancing system reliability and uptime.
• Fast Response Times: Delivers exceptionally quick switching with 450 µs response times (both On and Off), suitable for time-critical applications.
• Current Capacity: Each channel is capable of switching 0.4 A, with a maximum of 2 A per output common.
• HE10 Electrical Connection: Utilizes a standard HE10 connector for compact and efficient wiring of multiple outputs.
• Reliable Isolation: Features 500 V isolation between output channels and internal logic for enhanced electrical safety.
• Compact & DIN Rail Mountable: Space-saving design optimized for efficient panel integration on a standard 35 mm symmetrical DIN rail.
• Broad Compatibility: Primarily designed for Modicon M238 logic controllers, also compatible with Twido and Advantys OTB series.

Technical Specifications:

• Manufacturer: Schneider Electric
• Part Number: TM2DDO16TK
• Product Series: Modicon M238 I/O Modules
• Product Type: Discrete Output Module / I/O Expansion Module
• Discrete Output Number: 16 channels
• Discrete Output Type: Transistor
• Discrete Output Voltage: 24 V DC
• Discrete Output Logic: Source
• Discrete Output Current (Nominal): 0.4 A per channel
• Current per Channel (Max): 0.48 A
• Output Voltage Limits: 20.4...28.8 V
• Maximum Current per Output Common: 2 A
• Number of Common Points: 1
• Response Time:
  • 450 µs (from state 0 to state 1)
  • 450 µs (from state 1 to state 0)
• Residual Voltage: 1 V at state 1
• Maximum Leakage Current: 0.1 mA
• Maximum Inductive Load: 10 mH
• Maximum Tungsten Load: 9.6 W
• Protection:
  • Short-circuit protection with automatic reactivation
  • Overload protection with automatic reactivation
• Isolation:
  • Between channels: None
  • Between channels and internal logic: 500 V for 1 minute
• Current Consumption:
  • 15 mA (5 V DC at state 1 for all output)
  • 20 mA (24 V DC at state 1 for all output)
• Local Signalling: 2 display blocks
• Electrical Connection: 1 connector HE10
• Mounting Support: 35 mm symmetrical DIN rail
• Dimensions (WxDxH): 21.4 mm x 81.3 mm x 90 mm (0.8 in x 3.2 in x 3.5 in)
• Net Weight: 0.07 kg (0.15 lb US)
• Range Compatibility: Modicon M238 logic controller, Twido, Advantys OTB

Applications:

The Schneider TM2DDO16TK discrete output module is ideally suited for a broad range of industrial control and automation applications that require high-speed and high-density digital output control, including:

• High-Speed Switching: Driving solid-state relays, small contactors, and high-frequency indicator lights requiring fast response.
• Machine Control: Activating pneumatic valves, solenoid actuators, or small DC motors in automated machinery.
• Conveyor Systems: Controlling stop/start mechanisms, diversions, and other discrete outputs in material handling.
• Packaging Operations: Managing various output functions in high-speed packaging equipment.
• Process Control: Providing precise on/off control for elements in batch processes or discrete manufacturing.
• Any application demanding reliable and efficient digital output expansion for Modicon M238, Twido, or Advantys OTB PLCs.
