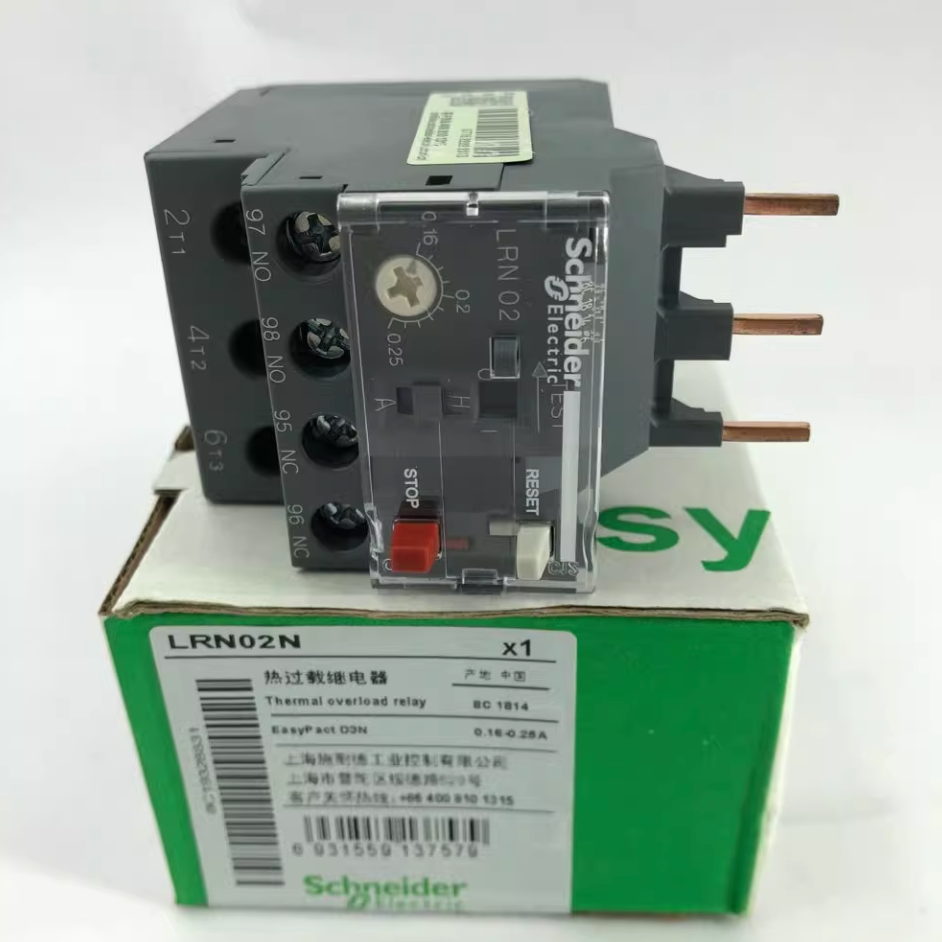

Schneider Electric LRN02N Easy TeSys Thermal Overload Relay, 0.16–0.25 A, Class 10A
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric LRN02N is a differential thermal overload relay from the Easy TeSys Protect range. Designed for precise motor protection, it offers a 0.16 … 0.25 A adjustment window with Class 10A tripping and built-in phase-failure sensitivity. The grey IP20-rated unit mounts directly beneath EasyPact LC1N06…38 contactors or on plate/rail adapters and features push-button stop/reset plus a visible trip indicator for quick status checks.
- Adjustable thermal setting: 0.16 – 0.25 A (Class 10A)
- Phase-failure sensitive per IEC 60947-4-1
- Compatible with EasyPact LC1N06…38 contactors
- 1 NO + 1 NC auxiliary contacts, 5 A Ith
- Trip indicator and red stop / green reset buttons
- IP20 protection, −20 … 60 °C operation without derating
| Product ID | LRN02N |
| Brand | Schneider Electric |
| Range | Easy TeSys |
| Series / Family | Easy TeSys Protect |
| Product type | Differential thermal overload relay |
| Device short name | LRN |
| Application | Motor protection |
| Thermal adjustment range | 0.16 – 0.25 A |
| Tripping class | Class 10A |
| Phase-failure sensitivity | 30 % of Ir on one phase |
| Tripping threshold | 1.14 ± 0.06 Ir |
| Auxiliary contacts | 1 NO + 1 NC (Ith 5 A) |
| Rated operational voltage (Ue) | ≤ 690 V AC |
| Rated insulation voltage (Ui) | 690 V |
| Rated impulse withstand (Uimp) | 6 kV |
| Network frequency | 50 / 60 Hz |
| Compatible contactors | LC1N06…38 (EasyPact D3N) |
| Mounting options | Under contactor / Plate / Rail (accessories) |
| Control buttons | Red stop / Green reset |
| Local signalling | Trip indicator |
| Temperature compensation | −20 … 60 °C |
| Mechanical robustness | Shock 6 Gn / Vibration 3 Gn |
| IP rating | IP20 |
| Dimensions (H × W × D) | 44.5 mm × 45 mm × 70 mm |
| Net weight | 0.124 kg |
| Standards | IEC 60947-4-1, GB 14048 |
| Certifications | CCC |
| Protective treatment | TH (IEC 60068) |
| Fire resistance | 850 °C |
| Ambient temperature (operation) | −20 … 60 °C (no derating) |
| Ambient temperature (operation with derating) | −20 … 70 °C |
| Ambient temperature (storage) | −60 … 80 °C |
| Packaging (box) H × W × L | 5.3 cm × 7.8 cm × 8.3 cm |
| Packaging weight | 144 g |
| EU RoHS | Compliant with exemptions |
| REACh SVHC-free | Yes |
