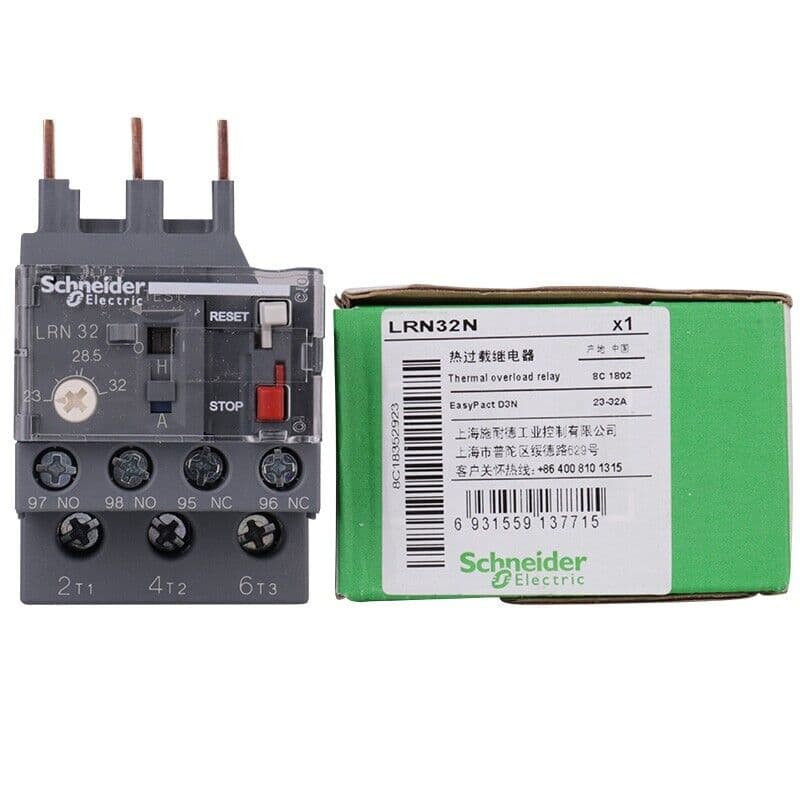

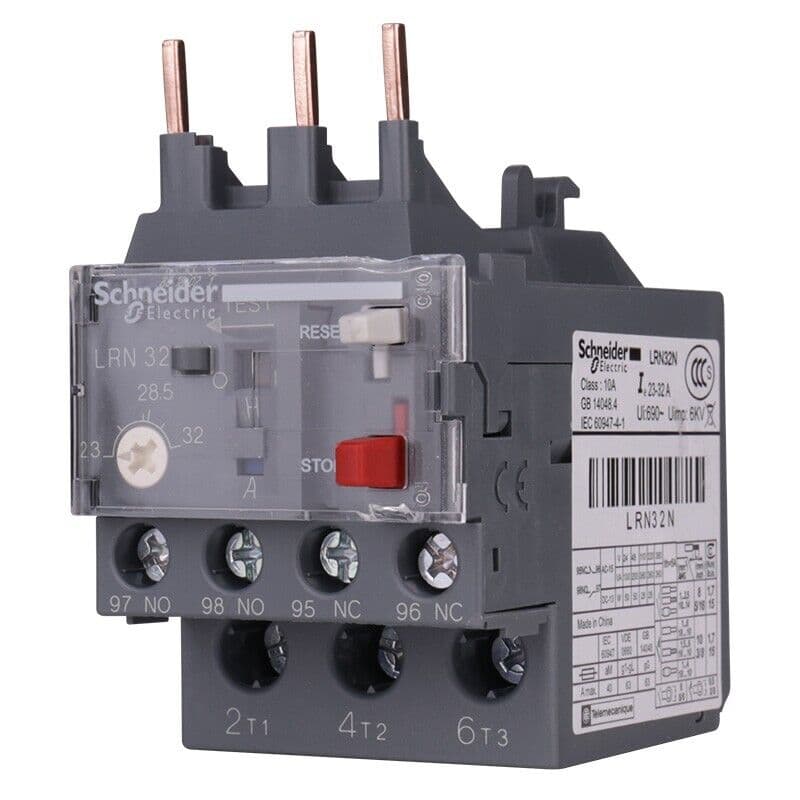

Schneider Electric LRN32N Easy TeSys Thermal Overload Relay, 23–32 A, Class 10A
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric LRN32N is a differential thermal overload relay from the Easy TeSys Protect line. Optimised for motor protection, it covers a 23 … 32 A adjustment range and provides Class 10A tripping with built-in phase-failure sensitivity. The grey, DIN-mounted unit fits directly beneath EasyPact LC1N25…38 contactors and offers push-button stop/reset control plus a trip indicator for fast diagnostics.
- 23 – 32 A adjustable thermal protection (Class 10A)
- Phase-failure sensitive to IEC 60947-4-1
- Compatible with LC1N25…38 (EasyPact D3N) contactors
- Trip indicator and push-button stop / reset
- 1 NO + 1 NC auxiliary contacts, 5 A Ith
- IP20 protection, −20 … 60 °C operation without derating
| Product ID | LRN32N |
| Brand | Schneider Electric |
| Range | Easy TeSys |
| Series / Family | Easy TeSys Protect |
| Product type | Differential thermal overload relay |
| Device short name | LRN |
| Application | Motor protection |
| Thermal protection adjustment range | 23 … 32 A |
| Tripping class | Class 10A (IEC 60947-4-1) |
| Phase-failure sensitivity | 30 % of Ir on one phase |
| Auxiliary contacts | 1 NO + 1 NC |
| Ith (aux contacts) | 5 A |
| Rated operational voltage (Ue) | ≤ 690 V AC |
| Rated insulation voltage (Ui) | 690 V |
| Rated impulse withstand (Uimp) | 6 kV |
| Network frequency | 50 / 60 Hz |
| Mounting options | Under contactor, plate or rail (accessories) |
| Compatible contactors | LC1N25…38 (EasyPact D3N) |
| Control buttons | Red stop / green reset |
