Schneider Electric LRN16N Easy TeSys Protect Thermal Overload Relay, 9–13 A, Trip Class 10A
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

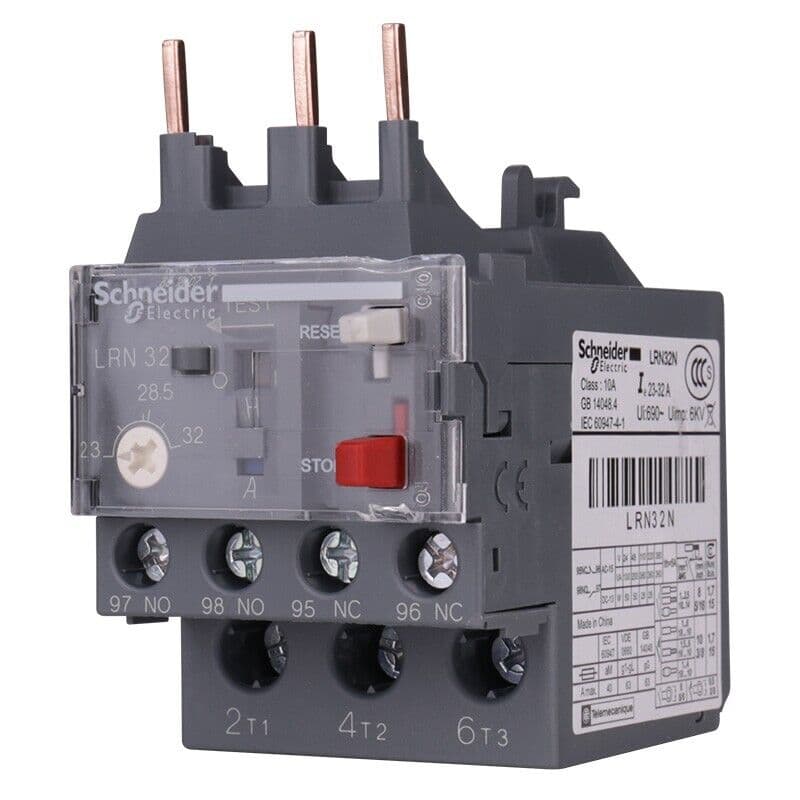

Schneider Electric Easy TeSys Protect thermal overload relay LRN16N safeguards motors with an adjustable 9 – 13 A setting range and Trip Class 10A response. Compatible with LC1N12…38 contactors, the relay provides phase-loss sensitivity, push-button control and IP20 touch protection in a compact 45 mm-wide housing.
Key Features
- Adjustable current range: 9 – 13 A
- Trip Class 10A (IEC 60947-4-1)
- Phase-loss sensitive (30 % In single phase)
- Auxiliary contacts: 1 NO + 1 NC
- Mounts under LC1N contactor, on base or DIN-rail (accessory)
- IP20 ingress protection
Technical Specifications
| Product ID | LRN16N |
| Brand | Schneider Electric |
| Series | Easy TeSys Protect |
| Product Type | E-type 3-pole thermal overload relay |
| Device Short Name | LRN |
| Application | Motor protection for LC1N12…38 contactors |
| Current Setting Range | 9 – 13 A |
| Trip Class | 10A (IEC 60947-4-1) |
| Tripping Threshold | 1.14 ± 0.06 In |
| Phase-loss Sensitivity | 30 % In (single phase) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Conventional Thermal Current (Ith) | 5 A |
| Rated Operational Voltage (Ue) | ≤ 690 V AC |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand (Uimp) | 6 kV |
| Recommended Fuses | 25 A gG, 16 A aM (power); 5 A gG (signal) |
| Network Frequency | 50 – 60 Hz |
| Mounting | Under contactor / base mounting / DIN-rail (with accessory) |
| Control Type | Red push-button stop, green push-button reset |
| Local Signalling | Trip indicator window |
| Temperature Compensation | −20 … 60 °C |
| Operating Ambient Temperature | −20 … 60 °C (no derating); −20 … 70 °C (with derating) |
| Storage Temperature | −60 … 80 °C |
| Shock Resistance | 6 gn / 11 ms (IEC 60068-2-7) |
| Vibration Resistance | 6 gn (IEC 60068-2-6) |
| Ingress Protection | IP20 (IEC 60529) |
| Connection Capacity | Power: 1.5–6 mm² (flex), 1–4 mm² (flex w/ ferrule), 1–6 mm² (solid) Signal: 1–2.5 mm² (flex/solid) |
| Tightening Torque | 1.7 N·m |
| Dimensions (H × W × D) | 44.5 mm × 45 mm × 70 mm |
| Net Weight | 0.124 kg |
| Standards | EN/IEC 60947-1/4-1/5-1, GB/T 14048.x, IEC 60335-1/-2-40 |
| Certifications | CB Scheme, CCC, CE |
| Protective Treatment | TH |
| Fire Resistance | 850 °C (IEC 60068-2-1) |
| Dielectric Strength | 6 kV at 50 Hz (IEC 60255-5) |
| EMC Surge Withstand | 6 kV (IEC 60801-5) |
| Package (single) | 8.249 cm × 8.013 cm × 5.178 cm, 147 g |
