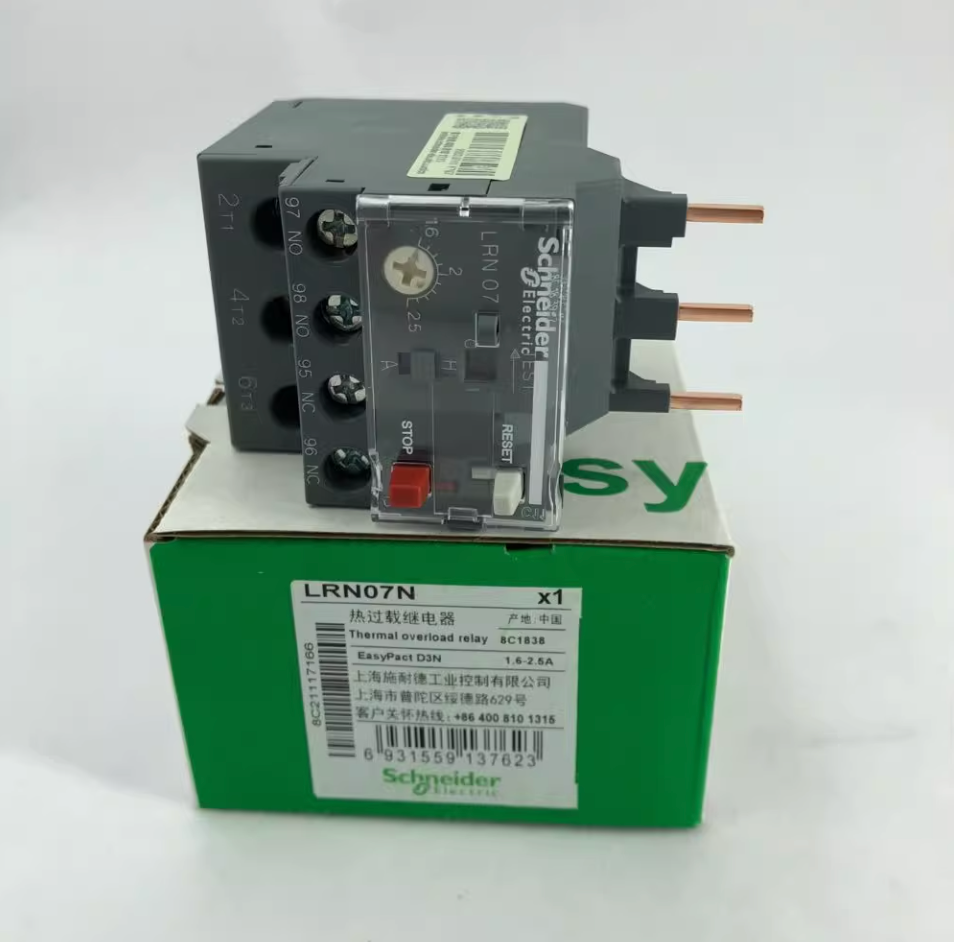

Schneider Electric LRN07N Easy TeSys Protect Thermal Overload Relay, 1.6–2.5 A, Trip Class 10A

$30.00 USD
$30.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Schneider Electric Easy TeSys Protect thermal overload relay LRN07N delivers dependable motor protection with a 1.6 – 2.5 A adjustable current range and Trip Class 10A performance. Designed for LC1N06…38 contactors, it offers phase-loss sensitivity, push-button control and IP20 safety in a compact 45 mm wide housing.

Key Features

  • Adjustable thermal protection: 1.6 – 2.5 A
  • Trip Class 10A to IEC 60947-4-1
  • Phase-loss sensitive (30 % In single-phase)
  • Auxiliary contacts: 1 NO + 1 NC
  • Mounts under LC1N contactor, base or DIN-rail (accessory)
  • IP20 touch protection

Technical Specifications

Product ID LRN07N
Brand Schneider Electric
Series Easy TeSys Protect
Product Type E-type 3-pole thermal overload relay
Application Motor protection for LC1N06…38 contactors
Current Setting Range 1.6 – 2.5 A
Trip Class 10A (IEC 60947-4-1)
Phase-loss Sensitivity 30 % In (single phase)
Auxiliary Contacts 1 NO + 1 NC
Conventional Thermal Current (Ith) 5 A
Rated Operational Voltage (Ue) ≤ 690 V AC
Rated Insulation Voltage (Ui) 690 V
Rated Impulse Withstand (Uimp) 6 kV
Recommended Fuses 6 A gG (power), 4 A aM (power), 5 A gG (signal)
Network Frequency 50 – 60 Hz
Mounting Under contactor / base mounting / DIN-rail (with accessory)
Control Type Red push-button stop, green push-button reset
Local Signalling Trip indicator window
Temperature Compensation −20 … 60 °C
Operating Ambient Temperature −20 … 60 °C (no derating); −20 … 70 °C (with derating)
Storage Temperature −60 … 80 °C
Shock Resistance 6 gn / 11 ms (IEC 60068-2-7)
Vibration Resistance 6 gn (IEC 60068-2-6)
Ingress Protection IP20 (IEC 60529)
Connection Capacity Power: 1.5–6 mm² (soft, no lug); 1–4 mm² (soft, lug); 1–6 mm² (rigid)
Signal: 1–2.5 mm² (soft/rigid)
Tightening Torque 1.7 N·m
Dimensions (H × W × D) 44.5 mm × 45 mm × 70 mm
Net Weight 0.124 kg
Standards IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, GB/T 14048.x, IEC 60335-1/-2-40
Warranty 18 months
Package (single) 8.293 cm × 8.13 cm × 5.246 cm, 149 g
