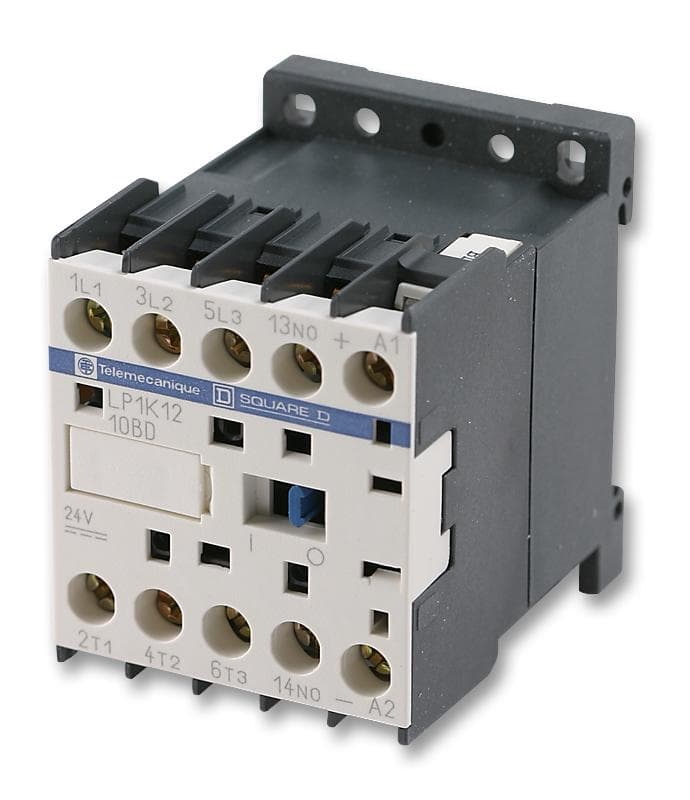

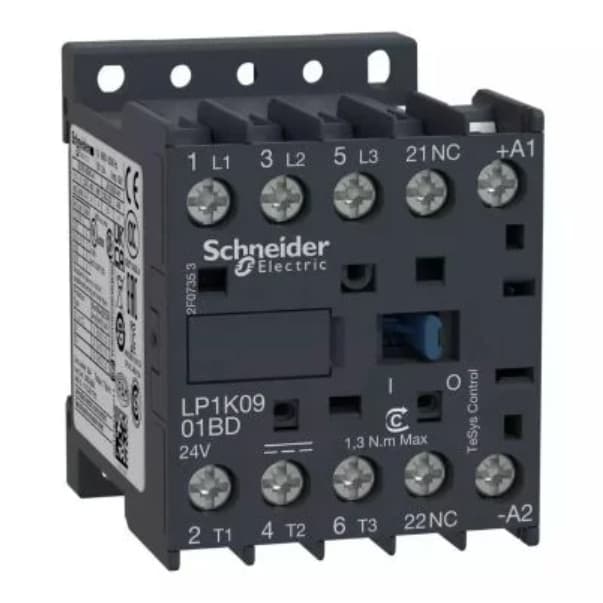

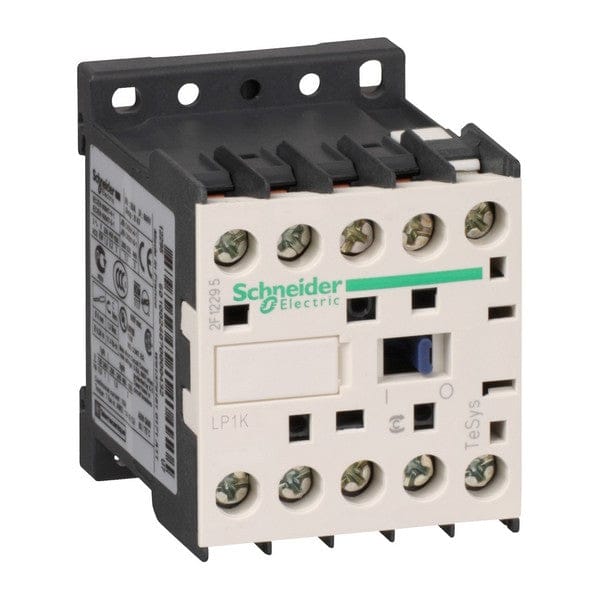

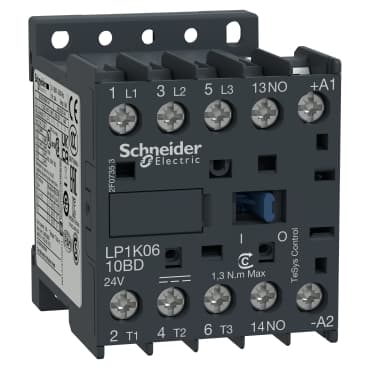

Schneider Electric LP4K0610BW3 TeSys K Contactor, 3P 6 A, 24 V DC Coil
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric TeSys K LP4K0610BW3 is a compact 3-pole contactor designed for motor control applications up to 6 A (AC-3) at 440 V. It features a 24 V DC wide-range coil with integral suppression, one built-in NO auxiliary contact and screw-clamp terminals for quick wiring. High electrical and mechanical durability, IP2X protection, and compliance with global standards make it a reliable choice for industrial panels.
Key Features
- 3 P power poles (3 NO) + 1 NO auxiliary contact
- Rated operational current: 6 A (AC-3) at ≤ 440 V AC
- Wide-range 24 V DC control coil with integral suppression
- High making capacity: 110 A (IEC 60947)
- Mechanical life: 30 million cycles
- Compact size: 58 × 45 × 57 mm (H×W×D)
- Standards: IEC 60947-4-1/5-1, UL, CSA, CE, UKCA
| Product ID | LP4K0610BW3 |
| Brand | Schneider Electric |
| Range / Series | TeSys K |
| Product Type | Contactor |
| Device Short Name | LP4K |
| GTIN / EAN | 3389110428568 |
| Application | Motor control |
| Utilisation Category | AC-3, AC-3e, AC-4 |
| Poles / Contacts | 3 NO power poles + 1 NO auxiliary |
| Rated Operational Current (Ie) | 6 A (≤ 440 V AC, AC-3/AC-3e) |
| Rated Operational Voltage (Ue) | ≤ 690 V AC, ≤ 400 Hz |
| Control Circuit Voltage (Uc) | 24 V DC (wide range 0.7…1.3 Uc) |
| Control Circuit Type | DC, with integral suppression |
| Motor Power (AC-3) | 1.5 kW @ 230 V | 2.2 kW @ 415 V | 3 kW @ 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Thermal Current (Ith) | 20 A (power), 10 A (signalling) |
| Making Capacity | 110 A AC (IEC 60947) |
| Short-Time Withstand Current (Icw) | 90 A / 1 s (50 °C) |
| Associated Fuse Rating | 25 A gG (≤ 440 V) |
| Coil Inrush / Hold Power | 1.8 W / 1.8 W |
| Terminal Type | Screw-clamp, 0.34–4 mm² |
| Mounting | DIN-rail or plate |
| Operating Time | 30–40 ms energisation, 10–20 ms de-energisation |
| Mechanical Durability | 30 million cycles |
| Electrical Durability | 1.3 million cycles (6 A, AC-3) |
| Maximum Operating Rate | 3600 cycles/hour |
| Protection Degree | IP2X |
| Ambient Temp (Op.) | -25…+50 °C |
| Storage Temp | -50…+80 °C |
| Altitude (max) | 2000 m without derating |
| Dimensions (H×W×D) | 58 × 45 × 57 mm |
| Net Weight | 0.235 kg |
| Standards | IEC 60947-4-1/5-1, UL 60947, CSA C22.2, GB/T 14048.4 |
| Certifications | CB, CCC, UL, CSA, EAC, CE, UKCA |
| Country of Origin | Indonesia |
| Warranty | 18 months |
