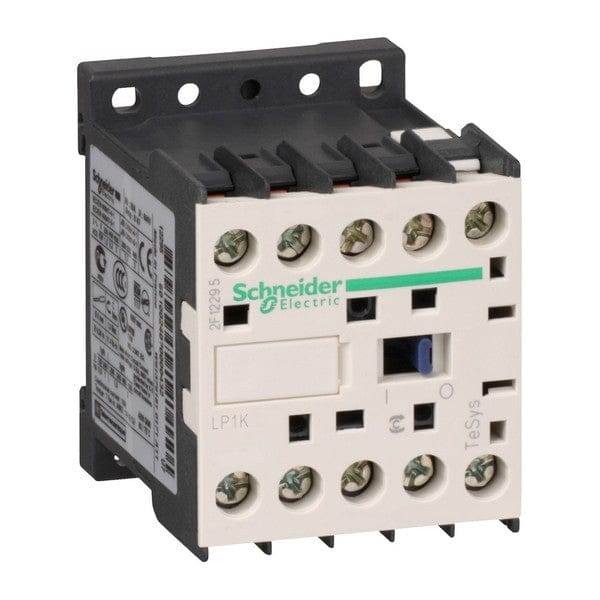

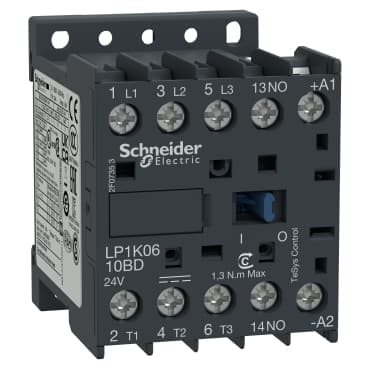

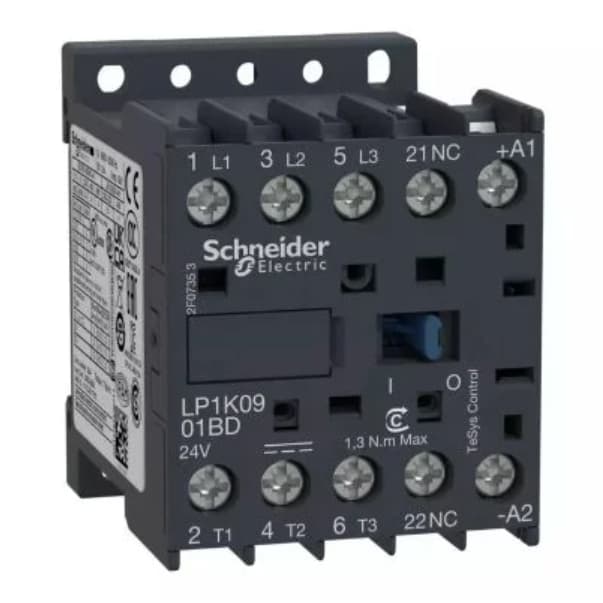

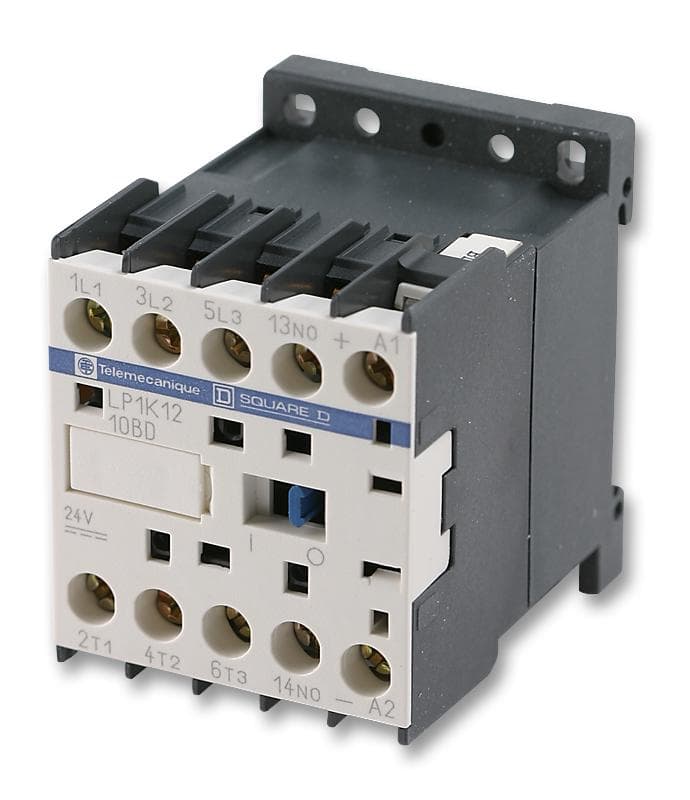

Schneider Electric LP2K0901BD TeSys K Reversing Contactor, 3P 9 A, 24 V DC Coil

$60.00 USD
$60.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

The Schneider Electric TeSys K LP2K0901BD is a compact pre-assembled reversing contactor set for motor control and resistive loads up to 9 A AC-3 at 440 V. Featuring mechanically interlocked 3-pole contactors with a factory-fitted reversing busbar, a 24 V DC coil and one NC auxiliary contact, it delivers fast, reliable reversing operation in a slim 90 mm-wide package.

  • Pre-wired reversing assembly with mechanical interlock
  • 3 NO main poles, 1 NC auxiliary contact
  • 9 A AC-3 / 20 A AC-1 ratings, up to 4 kW @ 415 V
  • 24 V DC coils, 3 W inrush / hold-in
  • High making capacity: 110 A (IEC 60947)
  • Mechanical life: 5 million cycles
Product ID LP2K0901BD
Brand Schneider Electric
Range / Series TeSys K
Product Type Reversing Contactor (pre-assembled)
Device Short Name LP2K
Utilisation Category AC-3, AC-3e, AC-4, AC-1
Poles / Contacts 3 P – 3 NO (power) + 1 NC (aux)
Rated Operational Current Ie 9 A AC-3 ≤ 440 V; 20 A AC-1 ≤ 690 V
Rated Operational Voltage Ue 690 V AC 50/60 Hz
Motor Power (AC-3) 2.2 kW @ 230 V; 4 kW @ 380–690 V
Control Circuit Voltage Uc 24 V DC
Inrush / Hold-in Power 3 W / 3 W @ 20 °C
Interlocking Type Mechanical
Rated Impulse Withstand Uimp 8 kV
Making Capacity (Irms) 110 A (power & signalling)
Breaking Capacity 110 A @ 220–440 V; 80 A @ 500 V; 70 A @ 660–690 V
Short-Time Withstand Icw 90 A / 1 s; 85 A / 5 s; 80 A / 10 s (50 °C)
Ith (Thermal Current) 20 A @ 60 °C
Mechanical Durability 5 million cycles
Electrical Durability 1.3 million cycles (9 A AC-3)
Maximum Operating Rate 3600 cycles/h
Mounting 35 mm DIN-rail or panel
Dimensions (H × W × D) 58 × 90 × 57 mm
Net Weight 0.48 kg
IP Rating IP20
Ambient Temp (Op.) -25 … +50 °C
Storage Temperature -50 … +80 °C
Operating Altitude ≤ 2000 m
Standards IEC 60947-4-1, UL 60947-4-1, CSA, JIS C8201-4-1, GB/T 14048.4
Certifications CB, CCC, UL, CSA, EAC, CE, UKCA
GTIN (EAN) 3389110428537
Country of Origin France
Warranty 18 months
