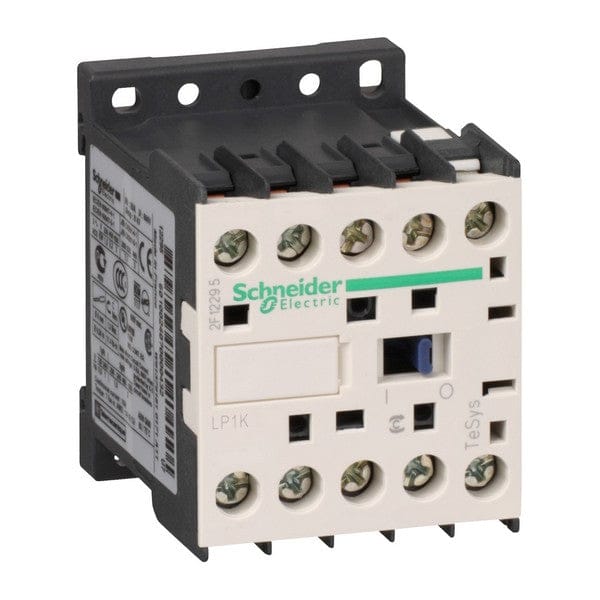

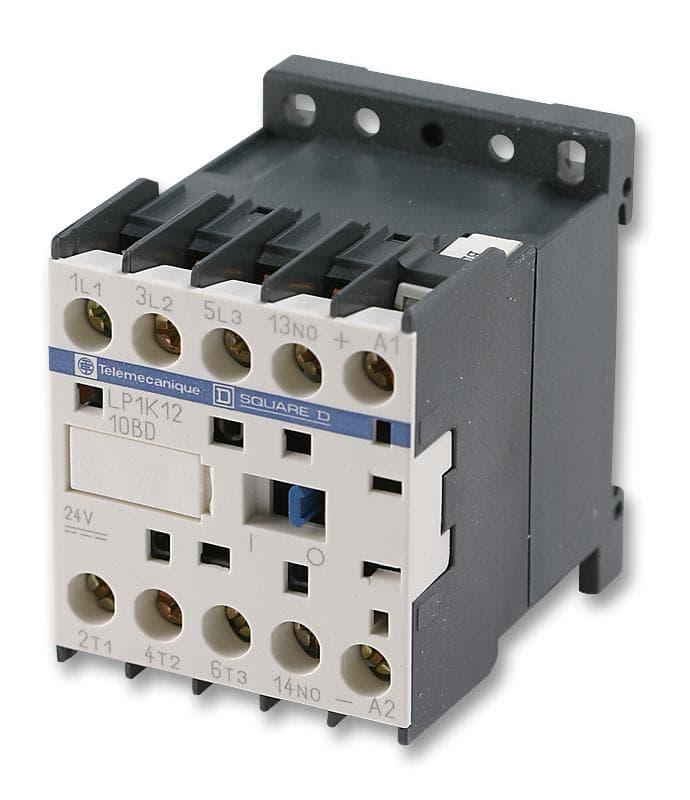

Schneider Electric LP1K1210BD TeSys K Contactor, 3P 12 A, 24 V DC Coil

<div>
  <p>The Schneider Electric TeSys K LP1K1210BD is a compact 3-pole contactor for motor control and resistive loads up to 12 A AC-3 (440 V). It integrates a 24 V DC coil, one auxiliary NO contact and delivers high electrical endurance and fast operating times within a slim 45 mm housing.</p>

  <ul>
    <li>3 NO power contacts plus 1 NO auxiliary</li>
    <li>12 A AC-3 (motor) / 20 A AC-1 (resistive) ratings</li>
    <li>24 V DC control circuit, 3 W inrush / hold-in</li>
    <li>High making capacity: 144 A (IEC 60947)</li>
    <li>Mechanical life: 10 million cycles</li>
    <li>DIN-rail or panel mounting, screw clamp terminals</li>
  </ul>

  <table style="width:100%; border-collapse: collapse; border: 1px solid #e0e0e0; font-size: 14px; margin-top: 10px;">
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Product ID</td>
      <td style="padding: 6px 10px; color: #555;">LP1K1210BD</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Brand</td>
      <td style="padding: 6px 10px; color: #555;">Schneider Electric</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Range / Series</td>
      <td style="padding: 6px 10px; color: #555;">TeSys K</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Product Type</td>
      <td style="padding: 6px 10px; color: #555;">3-Pole Contactor</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Utilisation Category</td>
      <td style="padding: 6px 10px; color: #555;">AC-3, AC-3e, AC-1, AC-4</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Poles / Contacts</td>
      <td style="padding: 6px 10px; color: #555;">3 P – 3 NO (power) + 1 NO (aux)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Rated Operational Current Ie</td>
      <td style="padding: 6px 10px; color: #555;">12 A AC-3 ≤ 440 V; 20 A AC-1 ≤ 690 V</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Rated Operational Voltage Ue</td>
      <td style="padding: 6px 10px; color: #555;">≤ 690 V AC (50/60 Hz)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Motor Power (AC-3)</td>
      <td style="padding: 6px 10px; color: #555;">3 kW @ 230 V; 5.5 kW @ 380-440 V; 4 kW @ 690 V</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Control Circuit Voltage Uc</td>
      <td style="padding: 6px 10px; color: #555;">24 V DC</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Control Circuit Type</td>
      <td style="padding: 6px 10px; color: #555;">DC (no suppressor module)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Inrush / Hold-in Power</td>
      <td style="padding: 6px 10px; color: #555;">3 W / 3 W @ 20 °C</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Heat Dissipation</td>
      <td style="padding: 6px 10px; color: #555;">1.3 W</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Rated Impulse Withstand Uimp</td>
      <td style="padding: 6px 10px; color: #555;">8 kV</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Overvoltage Category</td>
      <td style="padding: 6px 10px; color: #555;">III</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Making Capacity (I_rms)</td>
      <td style="padding: 6px 10px; color: #555;">144 A (power), 110 A (signalling)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Breaking Capacity</td>
      <td style="padding: 6px 10px; color: #555;">110 A @ 440 V; 80 A @ 500 V; 70 A @ 660-690 V</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Short-Time Withstand Icw</td>
      <td style="padding: 6px 10px; color: #555;">115 A / 1 s; 105 A / 5 s; 100 A / 10 s (50 °C)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Associated Fuse Rating</td>
      <td style="padding: 6px 10px; color: #555;">25 A gG (≤ 440 V) / 25 A aM (power)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Terminal Capacity</td>
      <td style="padding: 6px 10px; color: #555;">Solid 1.5–4 mm²; flexible 0.75–4 mm²</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Tightening Torque</td>
      <td style="padding: 6px 10px; color: #555;">0.8–1.3 N·m</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Max Operating Rate</td>
      <td style="padding: 6px 10px; color: #555;">3600 cycles/hour</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Operating Time</td>
      <td style="padding: 6px 10px; color: #555;">30–40 ms (closing); 10 ms (opening)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Mechanical Durability</td>
      <td style="padding: 6px 10px; color: #555;">10 million cycles</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Electrical Durability</td>
      <td style="padding: 6px 10px; color: #555;">1.3 million cycles (12 A AC-3)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Safety Reliability (B10d)</td>
      <td style="padding: 6px 10px; color: #555;">1 369 863 cycles (nominal load)</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Mounting</td>
      <td style="padding: 6px 10px; color: #555;">35 mm DIN-rail or panel</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Dimensions (H × W × D)</td>
      <td style="padding: 6px 10px; color: #555;">58 × 45 × 57 mm</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Net Weight</td>
      <td style="padding: 6px 10px; color: #555;">0.225 kg</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">IP Rating</td>
      <td style="padding: 6px 10px; color: #555;">IP2X</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Ambient Temp (Op.)</td>
      <td style="padding: 6px 10px; color: #555;">-25 … +50 °C</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Storage Temperature</td>
      <td style="padding: 6px 10px; color: #555;">-50 … +80 °C</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Operating Altitude</td>
      <td style="padding: 6px 10px; color: #555;">≤ 2000 m</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Standards</td>
      <td style="padding: 6px 10px; color: #555;">IEC 60947-4-1/5-1, UL, CSA, GB/T 14048.4</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Certifications</td>
      <td style="padding: 6px 10px; color: #555;">CB, CCC, UL, CSA, EAC, CE, UKCA</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">GTIN (EAN)</td>
      <td style="padding: 6px 10px; color: #555;">3389110790849</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Country of Origin</td>
      <td style="padding: 6px 10px; color: #555;">Indonesia</td>
    </tr>
    <tr style="border-bottom: 1px solid #e0e0e0;">
      <td style="padding: 6px 10px; background-color: #f9f9f9; font-weight: bold; width: 35%; color: #333;">Warranty</td>
      <td style="padding: 6px 10px; color: #555;">18 months</td>
    </tr>
  </table>
