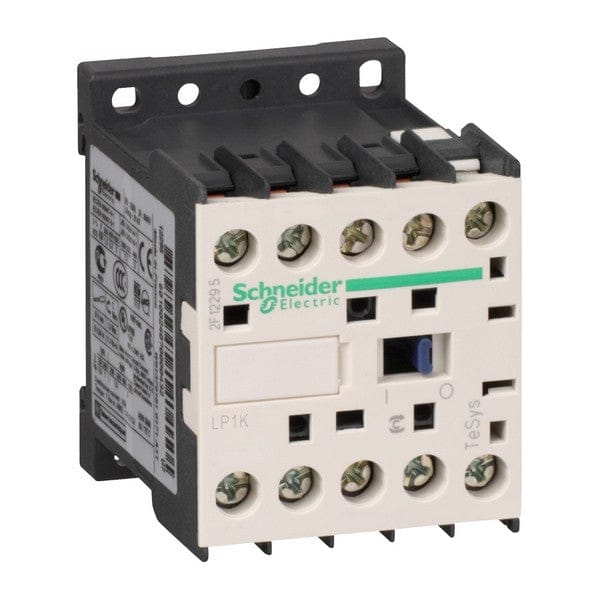

Schneider Electric LP1K0910BD3 TeSys K 3-Pole Contactor, 9 A, 24 V DC Coil
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric TeSys K LP1K0910BD3 is a compact 3-pole contactor for motor and resistive-load switching up to 9 A AC-3 at voltages ≤440 V. Equipped with a 24 V DC coil featuring an integral suppression device and one built-in NO auxiliary contact, it ensures reliable operation and simplified panel design.
- 3 power poles (3 NO) + 1 NO auxiliary contact
- Rated operational current: 9 A AC-3 (≤440 V)
- Wide operational voltage: up to 690 V AC, 50/60 Hz
- 24 V DC control coil with low 3 W hold-in power and suppression
- Mechanical durability: 10 million cycles
- Compact footprint: 58 × 45 × 57 mm (H × W × D)
- Standards: IEC 60947-4-1/5-1, UL, CSA, CE, UKCA
| Product ID (MPN) | LP1K0910BD3 |
| Brand | Schneider Electric |
| Range / Series | TeSys K |
| Product Type | Contactor |
| Poles (Power) | 3 NO |
| Auxiliary Contacts | 1 NO instantaneous |
| Utilisation Categories | AC-3, AC-3e, AC-1, AC-4 |
| Rated Operational Voltage Ue | ≤690 V AC 50/60 Hz |
| Rated Operational Current Ie (AC-3) | 9 A (≤440 V) |
| Motor Power Rating | 4 kW @ 415 V AC-3 |
| Control Circuit Voltage Uc | 24 V DC |
| Coil Technology | Integral suppression device |
| Control Voltage Limits | Oper. 0.8–1.15 Uc, Drop-out ≥0.10 Uc (@ ≤50 °C) |
| Inrush / Hold-in Power | 3 W / 3 W (@ 20 °C) |
| Thermal Current Ith | 20 A (power), 10 A (signalling) |
| Impulse Withstand Voltage Uimp | 8 kV |
| Rated Insulation Voltage Ui | 690 V (IEC), 600 V (UL/CSA) |
| Making Capacity | 110 A AC (IEC 60947) |
| Short-time Withstand Icw | 90 A / 1 s (50 °C) |
| Associated Fuse Rating | 25 A gG (≤440 V) |
| Average Impedance | 3 mΩ (@ Ith 20 A, 50 Hz) |
| Operating Time | 30–40 ms (pick-up), 10 ms (drop-out) |
| Mechanical Durability | 10 million cycles |
| Electrical Durability | 1.3 million cycles @ 9 A AC-3 |
| Maximum Operating Rate | 3600 cycles/h |
| Mounting | Plate or DIN rail |
| Terminal Type / Size | Screw clamp 0.34–4 mm² |
| Tightening Torque | 0.8–1.3 N·m |
| Minimum Switching Current | 5 mA (signalling) |
| Minimum Switching Voltage | 17 V (signalling) |
| IP Protection | IP2X |
| Operating Temperature | -25 … +50 °C |
| Storage Temperature | -50 … +80 °C |
| Altitude (without derating) | ≤2000 m |
| Dimensions (H × W × D) | 58 × 45 × 57 mm |
| Net Weight | 0.225 kg |
| Standards | IEC 60947-4-1/5-1, UL 60947-4-1/5-1, CSA, GB/T 14048.4 |
| Certifications | CB, CCC, UL, CSA, EAC, CE, UKCA |
| GTIN (EAN) | 3389110428513 |
| Country of Origin | Indonesia (ID) |
| Warranty | 18 months |
