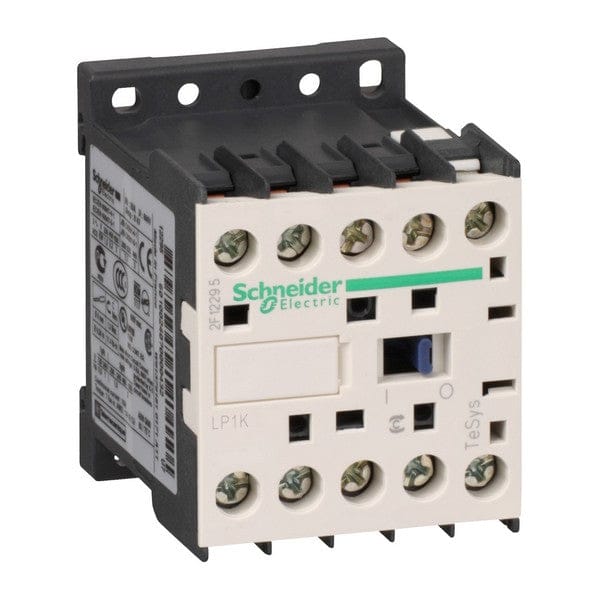

Schneider Electric LP1K0910BD TeSys K Contactor, 3P 9 A, 24 V DC Coil
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric TeSys K LP1K0910BD is a compact 3-pole contactor for motor control and resistive loads up to 9 A AC-3 (440 V). Fitted with a 24 V DC coil and one auxiliary NO contact, it provides high breaking capacity, fast switching and long mechanical life in a 45 mm-wide housing.
- 3 NO power contacts + 1 NO auxiliary
- 9 A AC-3 / 20 A AC-1 ratings
- 24 V DC coil, 3 W inrush / hold-in
- Rated making capacity: 110 A (IEC 60947)
- Mechanical durability: 10 million cycles
- DIN-rail or panel mounting, screw clamp terminals
| Product ID | LP1K0910BD |
| Brand | Schneider Electric |
| Range / Series | TeSys K |
| Product Type | 3-Pole Contactor |
| Utilisation Category | AC-3, AC-3e, AC-1, AC-4 |
| Poles / Contacts | 3 P – 3 NO (power) + 1 NO (aux) |
| Rated Operational Current Ie | 9 A AC-3 ≤ 440 V; 20 A AC-1 ≤ 690 V |
| Rated Operational Voltage Ue | ≤ 690 V AC (≤ 400 Hz) |
| Motor Power (AC-3) | 2.2 kW @ 230 V; 4 kW @ 380-690 V |
| Control Circuit Voltage Uc | 24 V DC |
| Control Circuit Type | DC (no suppressor module) |
| Inrush / Hold-in Power | 3 W / 3 W @ 20 °C |
| Heat Dissipation | 1.3 W |
| Rated Impulse Withstand Uimp | 8 kV |
| Making Capacity (Irms) | 110 A (power & signalling) |
| Breaking Capacity | 110 A @ 220-440 V; 80 A @ 500 V; 70 A @ 660-690 V |
| Short-Time Withstand Icw | 90 A / 1 s; 85 A / 5 s; 80 A / 10 s (50 °C) |
| Associated Fuse Rating | 25 A gG (≤ 440 V) / 25 A aM (power) |
| Terminal Capacity | Solid 1.5–4 mm²; flexible 0.75–4 mm² |
| Tightening Torque | 0.8–1.3 N·m |
| Max Operating Rate | 3600 cycles/hour |
| Operating Time | 30-40 ms (closing); 10 ms (opening) |
| Mechanical Durability | 10 million cycles |
| Electrical Durability | 1.3 million cycles (9 A AC-3) |
| Safety Reliability (B10d) | 1 369 863 cycles (nominal load) |
| Mounting | 35 mm DIN-rail or panel |
| Dimensions (H × W × D) | 58 × 45 × 57 mm |
| Net Weight | 0.225 kg |
| IP Rating | IP2X |
| Ambient Temp (Op.) | -25 … +50 °C |
| Storage Temperature | -50 … +80 °C |
| Operating Altitude | ≤ 2000 m |
| Standards | IEC 60947-4-1/5-1, UL 60947-4-1/5-1, CSA, GB/T 14048.4 |
| Certifications | CB, CCC, UL, CSA, EAC, CE, UKCA |
| GTIN (EAN) | 3389110363241 |
| Country of Origin | Indonesia |
| Warranty | 18 months |
