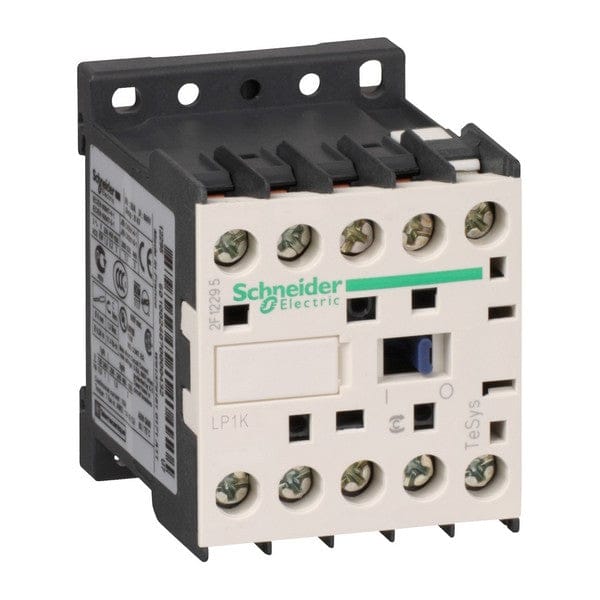

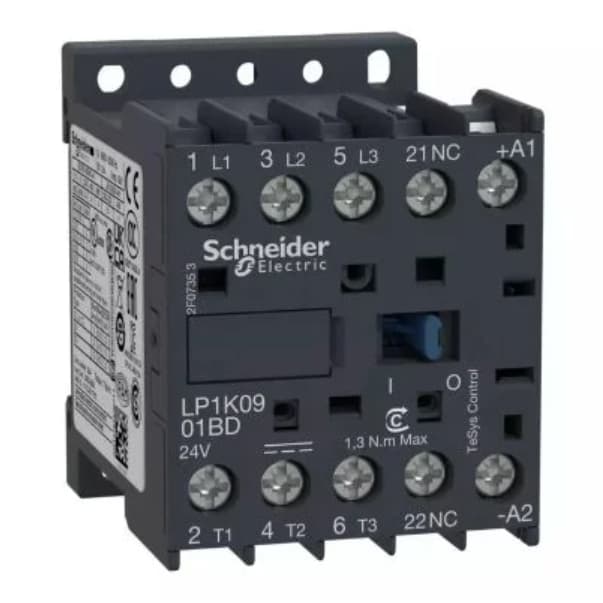

Schneider Electric LP1K0901BD TeSys K 3-Pole Contactor, 9 A, 24 V DC Coil
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric TeSys K LP1K0901BD is a compact 3-pole contactor designed for reliable motor and resistive-load switching up to 9 A AC-3 at voltages ≤440 V. A 24 V DC coil and one built-in NC auxiliary contact make it ideal for control panels where low-power DC control and high electrical durability are critical.
- 3 power poles (3 NO) + 1 NC auxiliary contact
- Rated operational current: 9 A AC-3 (≤440 V)
- Wide operational voltage: up to 690 V AC, 50/60 Hz
- 24 V DC control coil with low 3 W hold-in power
- Mechanical durability: 10 million cycles
- Compact footprint: 58 × 45 × 57 mm (H×W×D)
- Standards: IEC 60947-4-1/5-1, UL, CSA, CE, UKCA
| Product ID (MPN) | LP1K0901BD |
| Brand | Schneider Electric |
| Range / Series | TeSys K |
| Product Type | Contactor |
| Poles (Power) | 3 NO |
| Auxiliary Contacts | 1 NC instantaneous |
| Utilisation Categories | AC-3, AC-3e, AC-1, AC-4 |
| Rated Operational Voltage Ue | ≤690 V AC 50/60 Hz |
| Rated Operational Current Ie (AC-3) | 9 A (≤440 V) |
| Motor Power Rating | 4 kW @ 415 V AC-3 |
| Control Circuit Voltage Uc | 24 V DC |
| Control Voltage Limits | Oper. 0.8–1.15 Uc, Drop-out ≥0.10 Uc (@ ≤50 °C) |
| Inrush / Hold-in Power | 3 W / 3 W (@ 20 °C) |
| Thermal Current Ith | 20 A (power), 10 A (signalling) |
| Impulse Withstand Voltage Uimp | 8 kV |
| Rated Insulation Voltage Ui | 690 V (IEC), 600 V (UL/CSA) |
| Making Capacity | 110 A AC (IEC 60947) |
| Short-time Withstand Icw | 90 A /1 s (50 °C) |
| Associated Fuse Rating | 25 A gG (≤440 V) |
| Average Impedance | 3 mΩ (@ Ith 20 A, 50 Hz) |
| Operating Time | 30–40 ms (pick-up), 10 ms (drop-out) |
