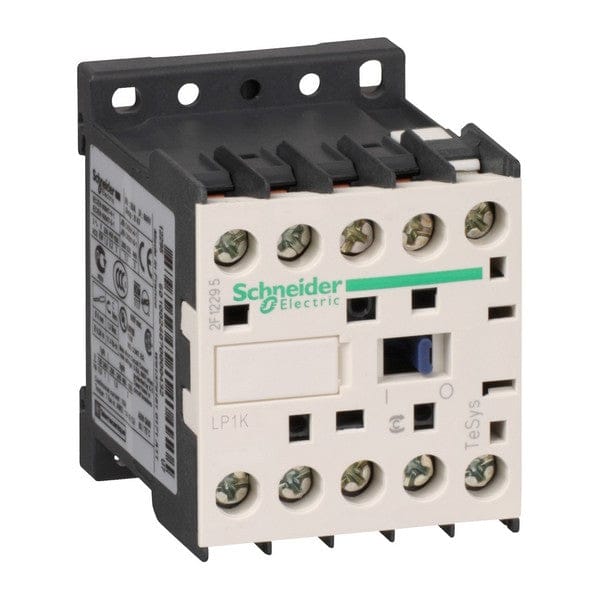

Schneider Electric LP1K09004MD TeSys K Contactor, 4P 20 A 220 V DC Coil
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Schneider Electric TeSys K LP1K09004MD is a compact 4-pole contactor engineered for resistive-load switching up to 20 A AC-1 at voltages ≤690 V. Its 220 V DC coil drives four normally-open power contacts, providing high electrical endurance and a slim 45 mm width for dense panel designs.
- 4 power poles: 4 NO
- Rated operational current: 20 A AC-1 (≤690 V)
- 220 V DC control coil, 3 W inrush / hold-in
- High making capacity: 110 A AC (IEC 60947)
- Mechanical durability: 10 million cycles
- Compact size: 58 × 45 × 57 mm (H × W × D)
- Standards: IEC 60947-4-1/5-1, UL, CSA, CE, UKCA
| Product ID (MPN) | LP1K09004MD |
| Brand | Schneider Electric |
| Range / Series | TeSys K |
| Product Type | Contactor |
| Poles / Contacts | 4 P (4 NO) |
| Utilisation Category | AC-1 |
| Rated Operational Voltage Ue | ≤690 V AC 50/60 Hz |
| Rated Operational Current Ie (AC-1) | 20 A (@ ≤690 V) |
| Control Circuit Voltage Uc | 220 V DC |
| Control Voltage Limits | Oper. 0.8–1.15 Uc, Drop-out ≥0.10 Uc (≤50 °C) |
| Coil Power (Inrush / Hold-in) | 3 W / 3 W (@ 20 °C) |
| Thermal Current Ith | 20 A (power), 10 A (signalling) |
| Impulse Withstand Voltage Uimp | 8 kV |
| Rated Insulation Voltage Ui | 690 V (IEC), 600 V (UL/CSA) |
| Making Capacity | 110 A AC (IEC 60947) |
| Short-time Withstand Icw | 90 A / 1 s (@ 50 °C) – power circuit |
| Associated Fuse Rating | 25 A gG (≤440 V) |
| Average Impedance | 3 mΩ (@ Ith 20 A, 50 Hz) |
| Operating Time | 30–40 ms (pick-up), 10 ms (drop-out) |
| Mechanical Durability | 10 million cycles |
| Electrical Durability | 0.16 million cycles @ 20 A AC-1 |
| Maximum Operating Rate | 3600 cycles/h |
| Mounting | DIN rail or plate |
| Terminal Type / Size | Screw clamp 0.34–4 mm² |
| Tightening Torque | 0.8–1.3 N·m |
| IP Protection | IP2X |
| Operating Temperature | -25 … +50 °C |
| Storage Temperature | -50 … +80 °C |
| Altitude (no derating) | ≤2000 m |
| Dimensions (H × W × D) | 58 × 45 × 57 mm |
| Net Weight | 0.225 kg |
| Standards | IEC 60947-4-1/5-1, UL 60947-4-1/5-1, CSA, GB/T 14048.4 |
| Certifications | CB, CCC, UL, CSA, EAC, CE, UKCA |
| Warranty | 18 months |
