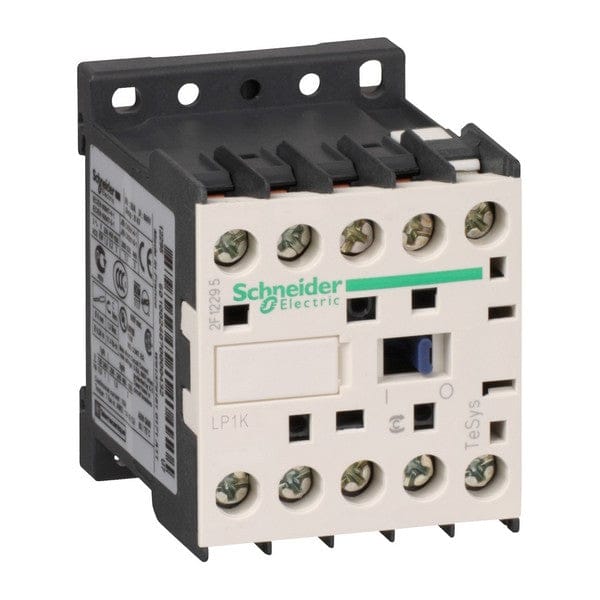

Schneider Electric LP1K09004BD3 TeSys K Contactor, 4P 20 A, 24 V DC Coil
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric TeSys K LP1K09004BD3 is a compact 4-pole contactor designed for resistive loads up to 20 A AC-1 at voltages ≤ 690 V. Equipped with a 24 V DC coil featuring an integral suppression device, it offers high electrical endurance, fast operating times and IP2X finger protection in a space-saving 45 mm wide housing.
- 4 NO power contacts, AC-1 utilisation
- 20 A rated current (≤ 60 °C)
- 24 V DC control circuit, 3 W inrush / hold-in
- High making capacity: 110 A conforming to IEC 60947
- Mechanical life: 10 million cycles
- DIN-rail or plate mounting, screw clamp terminals
| Product ID | LP1K09004BD3 |
| Brand | Schneider Electric |
| Range / Series | TeSys K |
| Product Type | 4-Pole Contactor |
| Utilisation Category | AC-1 (resistive load) |
| Poles / Contacts | 4 P – 4 NO |
| Rated Operational Current Ie | 20 A (≤ 690 V, 60 °C) AC-1 |
| Rated Operational Voltage Ue | ≤ 690 V AC (50/60 Hz) |
| Control Circuit Voltage Uc | 24 V DC |
| Control Circuit Type | DC (integral suppression) |
| Inrush / Hold-in Power | 3 W / 3 W @ 20 °C |
| Heat Dissipation | 1.3 W |
| Rated Impulse Withstand Uimp | 8 kV |
| Overvoltage Category | III |
| Making Capacity (Irms) | 110 A AC (IEC 60947) |
| Breaking Capacity | 110 A @ 220–440 V; 80 A @ 500 V; 70 A @ 660–690 V |
| Short-Time Withstand Icw | 90 A / 1 s; 85 A / 5 s; 80 A / 10 s etc. (50 °C) |
| Associated Fuse Rating | 25 A gG (≤ 440 V) / 25 A aM |
| Terminal Type / Capacity | Screw clamp – solid 1.5–4 mm²; flexible 0.75–4 mm² |
| Tightening Torque | 0.8–1.3 N·m |
| Max Operating Rate | 3600 cycles/hour |
| Operating Time | 30–40 ms (closing); 10 ms (opening) |
| Mechanical Durability | 10 million cycles |
| Electrical Durability | 0.16 million cycles (20 A AC-1) |
| Safety Reliability (B10d) | 1 369 863 cycles (nominal load) |
| Mounting | 35 mm DIN-rail or panel |
| Dimensions (H×W×D) | 58 × 45 × 57 mm |
| Net Weight | 0.225 kg |
| IP Rating | IP2X |
| Ambient Temp (Op.) | -25 … +50 °C |
| Storage Temperature | -50 … +80 °C |
| Operating Altitude | ≤ 2000 m |
| Standards | IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1/5-1, CSA, GB/T 14048.4 |
| Certifications | CB, CCC, UL, CSA, EAC, CE, UKCA |
| GTIN (EAN) | 3389110495232 |
| Country of Origin | Indonesia |
| Warranty | 18 months |
