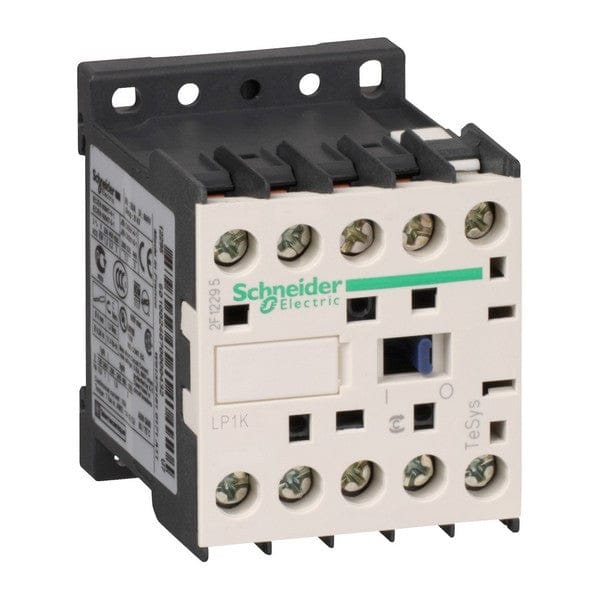

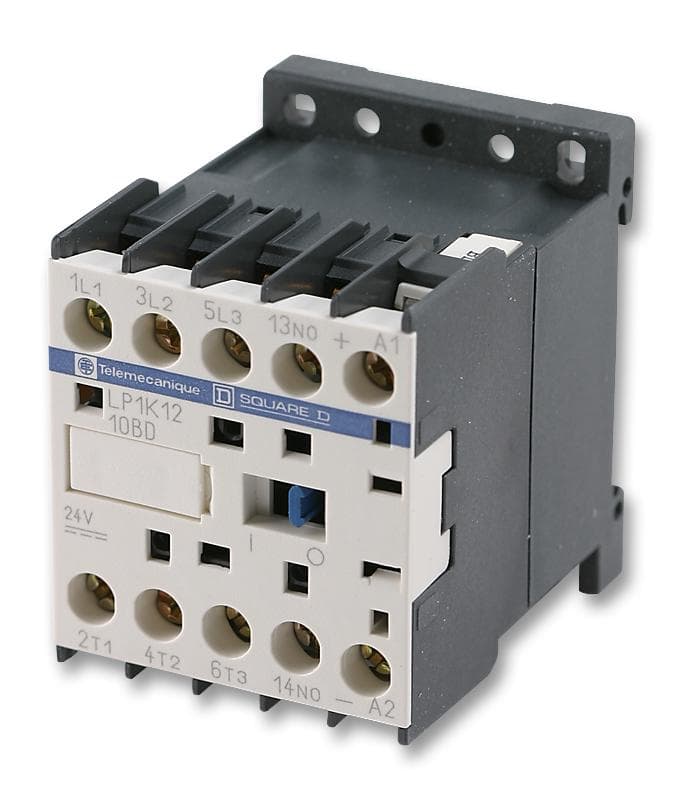

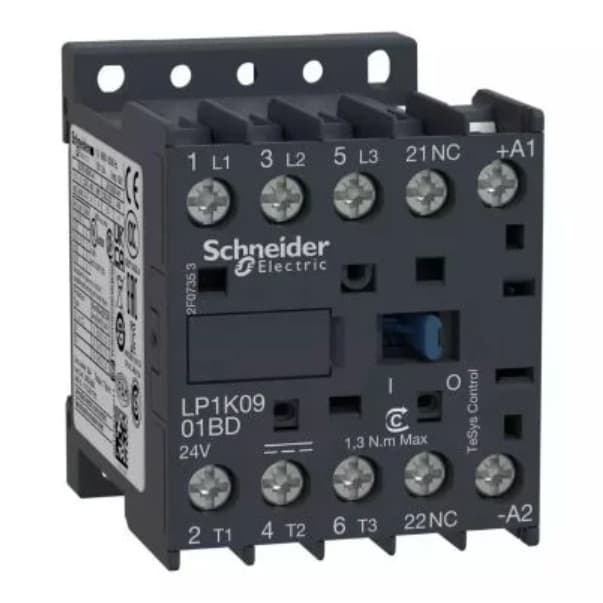

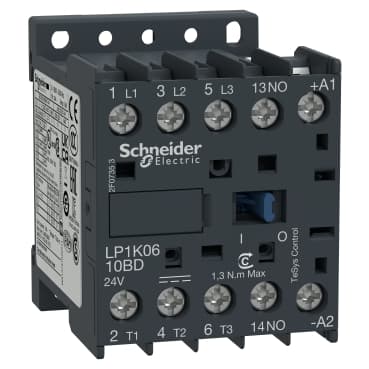

Schneider Electric LP1K0610BD3 TeSys K Contactor, 3P, 6A, 24VDC Coil
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric LP1K0610BD3 is a TeSys K series miniature 3-pole (3 NO) contactor designed for compact motor control applications. It features a 6A rated operational current (AC-3), a 24VDC coil with integral suppression, and includes one normally open (1 NO) auxiliary contact. This compact contactor is suitable for control panels with space constraints and offers high mechanical durability.
- TeSys K Series Miniature Contactor for Motor Control
- Rated Operational Current: 6 A (AC-3) at ≤440VAC
- 3 Main Poles, Normally Open (3 NO)
- 1 Auxiliary Contact, Normally Open (1 NO)
- Coil Voltage: 24 V DC (with integral suppression device)
- Motor Rating: Up to 3 kW at 440/690VAC
- Compact Design for Space-Constrained Panels
- High Mechanical Durability: 10 Million Cycles
- Compliant with IEC, UL, CSA, and other global standards
| Product ID / Reference | LP1K0610BD3 |
| EAN / GTIN | 3389110494532 |
| Brand | Schneider Electric |
| Series | TeSys K |
| Type | Contactor, Miniature |
| Poles Description | 3P |
| Main Contact Composition | 3 NO |
| Auxiliary Contact Composition | 1 NO |
| Rated Operational Voltage (Ue) | ≤ 690 V AC (Power & Signalling) |
| Rated Operational Current (Ie) - AC-3 | 6 A (at ≤440 V AC, <60 °C) |
| Control Circuit Type | DC |
| Control Circuit Voltage (Uc) | 24 V DC |
| Motor Power - AC-3 (50/60 Hz) | 1.5 kW at 220...230V, 2.2 kW at 380...415V, 3 kW at 440/690V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conventional Free Air Thermal Current (Ith) - Power | 20 A (at 60 °C) |
| Rated Making Capacity (Power Circuit) | 110 A AC (IEC 60947) |
| Rated Breaking Capacity (Power Circuit) | 110 A at 440 V (IEC 60947) |
| Rated Short-Time Withstand Current (Icw) - Power | 90 A (1 s), 85 A (5 s), 80 A (10 s), 60 A (30 s), 45 A (1 min), 40 A (3 min), 20 A (≥15 min) at 50°C |
| Associated Fuse Rating (Power Circuit) | 25 A gG or 25 A aM at ≤440 V |
| Rated Insulation Voltage (Ui) | 690 V (IEC 60947-4-1) for power and signalling |
| Inrush Power | 3 W (at 20°C) |
| Hold-in Power | 3 W (at 20°C) |
| Heat Dissipation | 1.3 W |
| Control Circuit Voltage Limits | Operational: 0.8...1.15 Uc (<50°C), Drop-out: ≥0.10 Uc (<50°C) |
| Terminal Cross-Section (Power) | 0.34...4 mm² (flexible/solid) |
| Maximum Operating Rate | 3600 cycles/h |
| Coil Technology | With integral suppression device |
| Operating Time | Closing: 30...40 ms, Opening: 10 ms |
| Mechanical Durability | 10 Million Cycles |
| Electrical Durability (AC-3) | 1.3 Million Cycles (6 A at ≤440V) |
| Mounting | Rail, Plate |
| Tightening Torque | 0.8...1.3 N.m (7.08...11.5 lbf.in) |
| Dimensions (H x W x D) | 58 x 45 x 57 mm (2.3 x 1.8 x 2.2 in) |
| Net Weight | 0.225 kg (0.496 lb) |
| IP Degree of Protection | IP2X |
| Operating Ambient Temperature | -25…50 °C (-13…122 °F) |
| Operating Altitude | 2000 m (6562 ft) without derating |
| Standards | IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, GB/T 14048.4 |
| Certifications | UL, CSA, CCC, CE, UKCA, EAC, CB |
| Packaging | Unit (1 PCE) |
