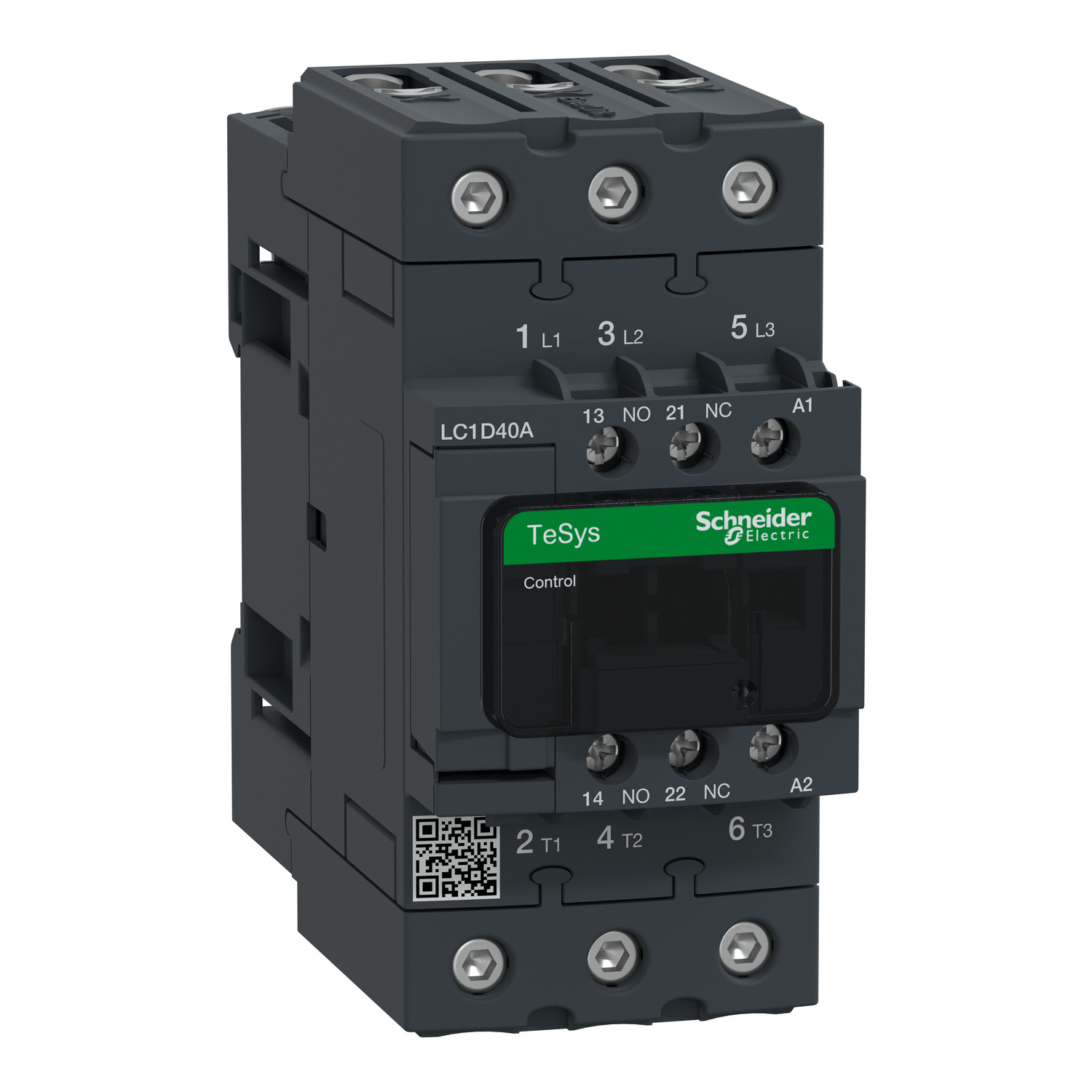

Schneider Electric LC1D40AE7C TeSys Deca Contactor, 3P (3NO), 41A, 48V AC 50/60Hz Coil – Pack of 2
Regular price
$90.00 USD
Regular price
Sale price
$90.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric LC1D40AE7C is a TeSys Deca series 3-pole contactor designed for motor control (AC-3/AC-3e) and resistive loads. It features 3 normally open (NO) power contacts and is rated for 41A AC-3/AC-3e or 60A AC-1 at up to 440V AC. The device is operated by a 48V AC 50/60Hz coil and utilizes advanced Everlink terminals for the power circuit, ensuring fast and reliable connections.
Key Features:
- High-Current Motor Control: Rated for 41A AC-3/AC-3e, suitable for motors up to 22kW at 440V.
- Everlink Terminals: Quick-connect BTR screw connectors for power circuit wiring.
- High Electrical Durability: 1.6 million cycles at 41A AC-3.
- Robust Mechanical Design: 6 million mechanical cycles.
- Wide Operating Temperature: -40°C to +60°C.
- Integrated Auxiliary Contacts: 1 NO + 1 NC mechanically linked type.
- Comprehensive Safety Certifications: CCC, CE, UKCA.
- Green Premium Product: Compliant with REACh, RoHS, and free of SVHC.
| Product ID | LC1D40AE7C |
| Brand | Schneider Electric |
| Series | TeSys Deca |
| Product Type | Contactor |
| Poles & Contact Composition | 3P (3 NO) |
| Rated Operational Current (Ie) | 41 A (AC-3/AC-3e at ≤440 V AC); 60 A (AC-1 at ≤440 V AC) |
| Rated Operational Voltage (Ue) | ≤ 690 V AC 25...400 Hz; ≤ 300 V DC |
| Control Circuit Voltage (Uc) | 48 V AC 50/60 Hz |
| Motor Power (AC-3) | 22 kW at 415/440 V; 30 kW at 660/690 V |
| Utilisation Categories | AC-1, AC-3, AC-3e, AC-4 |
| Conventional Free Air Thermal Current (Ith) | 60 A (at 60°C) for power circuit |
| Rated Short-Time Withstand Current (Icw) | 320 A at 40°C for 10 s (power circuit) |
| Electrical Durability | 1.6 Mcycles (41 A AC-3 at Ue ≤ 440 V) |
| Mechanical Durability | 6 Mcycles |
| Inrush Power | 160 VA (50 Hz, cos φ 0.75 at 20°C) |
| Hold-in Power Consumption | 15 VA (50 Hz, cos φ 0.3 at 20°C) |
| Terminal Type (Power) | EverLink BTR screw connectors |
| Tightening Torque (Power Circuit) | 8 N.m (for 35 mm² cable) |
| Auxiliary Contacts | 1 NO + 1 NC (mechanically linked) |
| Mounting | Plate or Rail |
| IP Protection Degree | IP2X (front face) |
| Operating Ambient Temperature | -40°C to +60°C |
| Dimensions (H x W x D) | 122 x 55 x 120 mm |
| Net Weight | 0.85 kg |
| Standards | IEC 60947-4-1, GB 14048.4 |
| Certifications | CCC, CE, UKCA |
| Sustainable Offer | Green Premium product, REACh & RoHS compliant |
