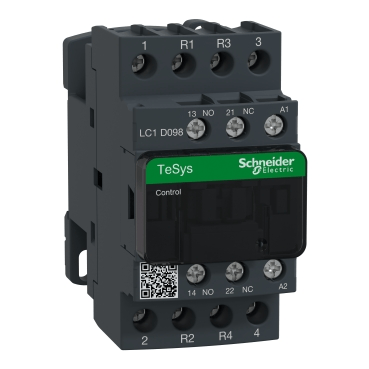

Schneider LC1D098M7C Contactor, Coil Voltage AC 220V – Pack of 2

Manufacturer
Schneider Electric

Key Features
• AC coil operation at 220 VAC
• Rugged design for frequent load switching
• UL, CE and CCC certified
• Screw-clamp terminals for reliable connections
• Silver-nickel contacts with high electrical endurance
• Phase-failure and undervoltage immunity
• Built-in arc chute for contact protection

Electrical Specifications
Contactor Type: LC1D series, 3-pole
Rated Operational Current (AC-3): 95 A at 400 VAC
Coil Voltage: 220 VAC ± 10 % (50 / 60 Hz)
Control Supply Power: 11 VA (50 Hz) / 12 VA (60 Hz)
Utilization Category: AC-3 (motor starting)
Rated Insulation Voltage: 690 VAC
Rated Impulse Withstand Voltage: 6 kV (1.2 / 50 µs)
Mechanical Durability: 30 × 10⁶ operations
Electrical Durability: 300 × 10³ operations (AC-3, rated load)

Mechanical Data
Mounting: DIN rail (35 mm) or panel
Connection Type: Screw-clamp, 1.5 – 35 mm² (solid) / 1.5 – 25 mm² (flexible)
Terminal Tightening Torque: 2.5 Nm
Weight (each): 0.45 kg
Housing Material: Polycarbonate/thermoset plastic
Protection Degree: IP20 (front)
Operating Temperature: –25 °C to +60 °C
Storage Temperature: –40 °C to +85 °C
Vibration Resistance: 0.35 mm at 5–35 Hz; 15 g peak at 35–150 Hz

Standards & Compliance
• IEC 60947-4-1, EN 60947-4-1
• UL 508, CSA C22.2 No 14
• RoHS, REACH

Pack Contents
• 2 × LC1D098M7C Contactor (220 VAC coil)
