Schneider Electric GV2ME32 TeSys Deca Motor Circuit Breaker, 24-32 A, 50 kA Icu
Regular price
$45.00 USD
Regular price
Sale price
$45.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Schneider Electric TeSys Deca GV2ME32 is a 3-pole thermal-magnetic motor circuit breaker designed for reliable motor protection up to 22 kW (690 V) with a current setting range of 24 – 32 A. Housed in a compact 45 mm-wide body, it offers high short-circuit breaking capacity up to 50 kA at 230 V, push-button control and phase-failure sensitivity, ensuring robust protection and easy integration on DIN rail or panel.
- Thermal-magnetic trip unit with adjustable 24 – 32 A range
- Breaking capacity: 50 kA @ 230 V AC, up to 10 kA @ 415 V
- Motor ratings: 15 kW (400 V), 22 kW (690 V)
- Push-button ON/OFF control, manual starter & protector
- Phase-failure sensitivity and isolation capability
- Compact 45 mm width, screw clamp terminals

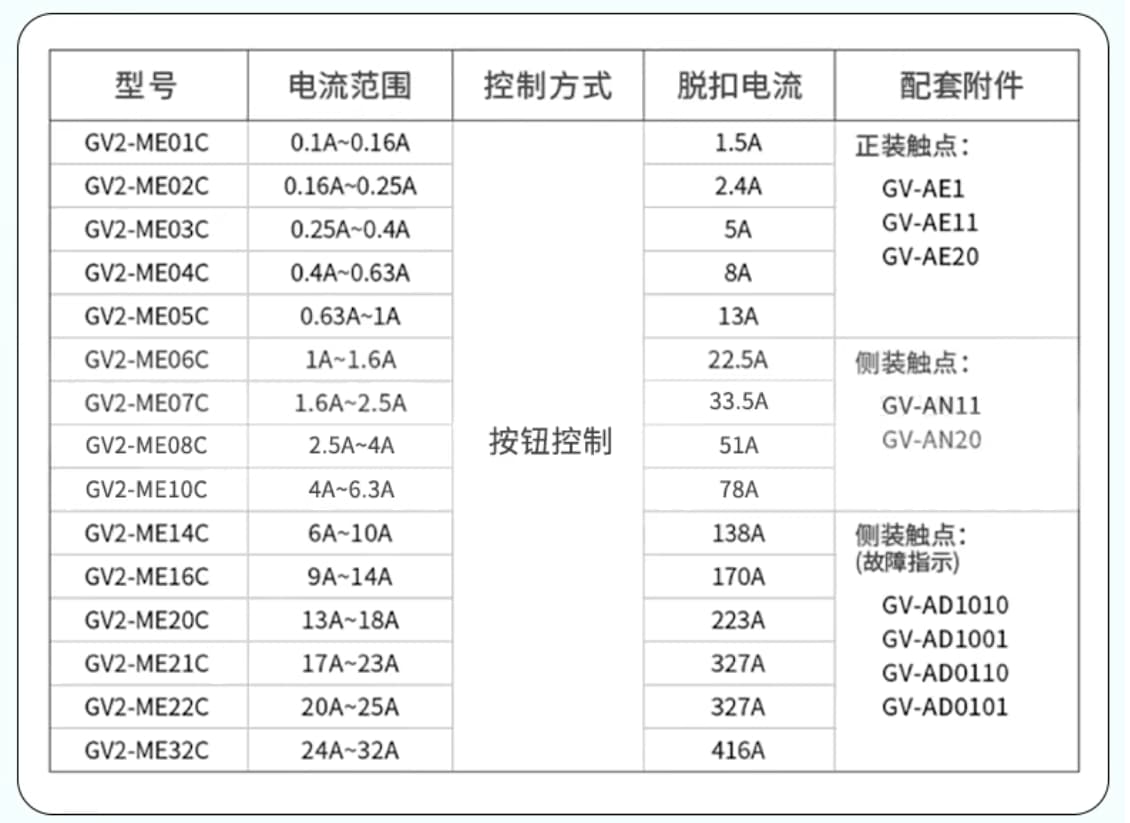

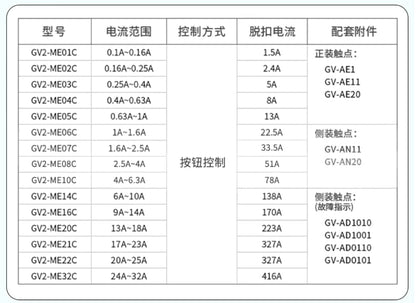

| Product ID | GV2ME32 |
| Brand | Schneider Electric |
| Range / Series | TeSys Deca |
| Product Type | Motor Circuit Breaker / Manual Starter |
| Trip Unit Technology | Thermal-magnetic |
| Poles | 3P |
| Current Setting Range | 24 – 32 A |
| Line Rated Current | 32 A |
| Magnetic Tripping Current | 537.6 A |
| Breaking Capacity Icu | 50 kA @ 230 V; 10 kA @ 415 V; 6 kA @ 440 V; 4 kA @ 500 V; 3 kA @ 690 V |
| Service Breaking Capacity Ics | 100 % @ 230 V; 50 % @ 415/440 V; 75 % @ 500/690 V |
| Rated Operational Voltage Ue | 690 V AC 50/60 Hz |
| Rated Insulation Voltage Ui | 690 V AC |
| Impulse Withstand Voltage Uimp | 6 kV |
| Motor Power Rating | 15 kW @ 400 V; 18.5 kW @ 500 V; 22 kW @ 690 V |
| Control Type | Push-button |
| Phase-Failure Sensitivity | Yes |
| Suitability for Isolation | Yes (IEC 60947-1) |
| Mechanical Durability | 100 000 cycles |
| Electrical Durability | 100 000 cycles (AC-3 415 V) |
| Terminal Capacity | 1 – 6 mm² solid / 1.5 – 6 mm² flexible |
| Tightening Torque | 1.7 N·m |
| Mounting | 35 mm DIN rail or panel (adapter) |

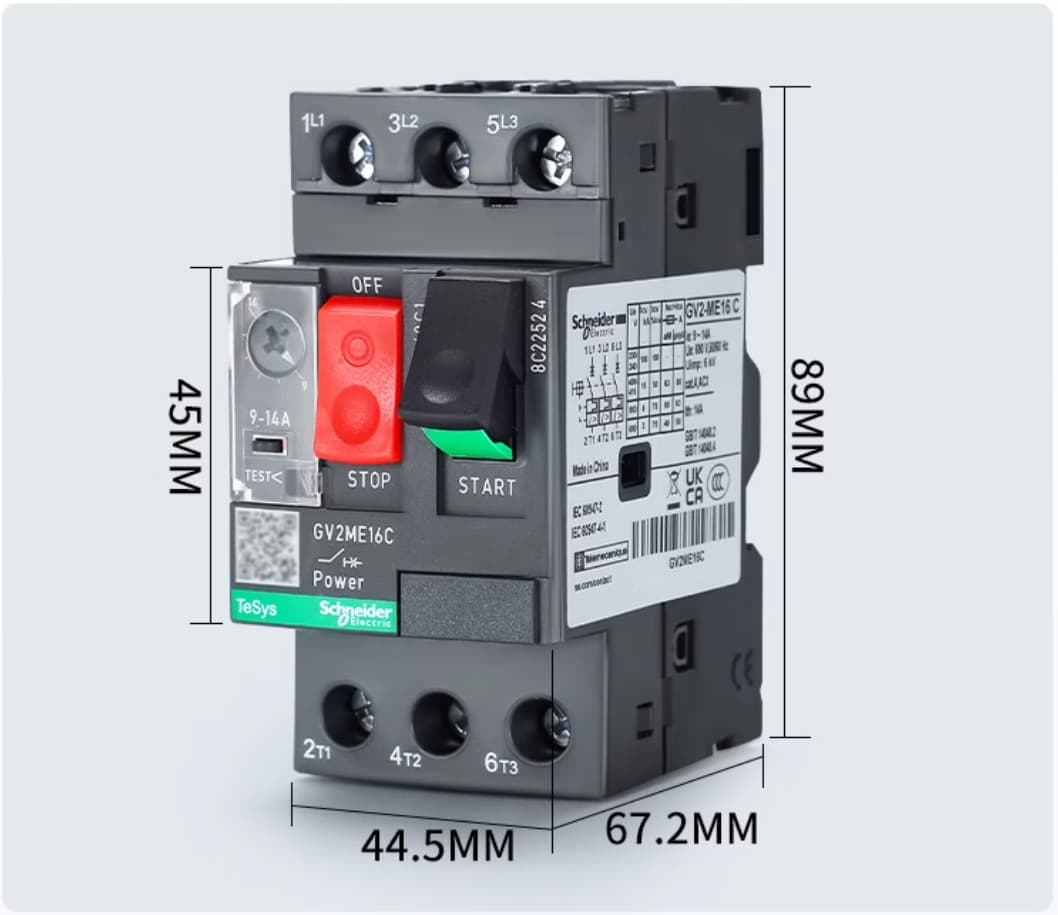

| Dimensions (H × W × D) | 89 × 45 × 78.5 mm |
| Net Weight | 0.26 kg |
| IP Rating | IP20 |
| IK Rating | IK04 |
| Ambient Temp (Op.) | -20 … +60 °C |
| Storage Temperature | -40 … +80 °C |
| Standards | IEC 60947-2/4-1, UL 60947-4-1, CSA, IEC 60335 |
| Certifications | CCC, UL, CSA, EAC, ATEX, LR, BV, RINA, DNV-GL, UKCA |
| GTIN (EAN) | 3389110343298 |
| Country of Origin | Thailand |
| Warranty | 18 months |
