Schneider Electric GV2ME03 TeSys Deca Motor Circuit Breaker, Thermal-Magnetic, 0.25–0.40 A

$150.00 USD
$150.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Schneider Electric TeSys Deca GV2ME03 is a 3-pole thermal-magnetic motor circuit breaker designed for reliable manual starting and protection of motors up to 0.37 kW. Featuring push-button control, wide 0.25…0.40 A adjustment range and high 100 kA breaking capacity, it ensures robust performance across demanding industrial applications.

  • Thermal-magnetic trip unit for simultaneous overload and short-circuit protection

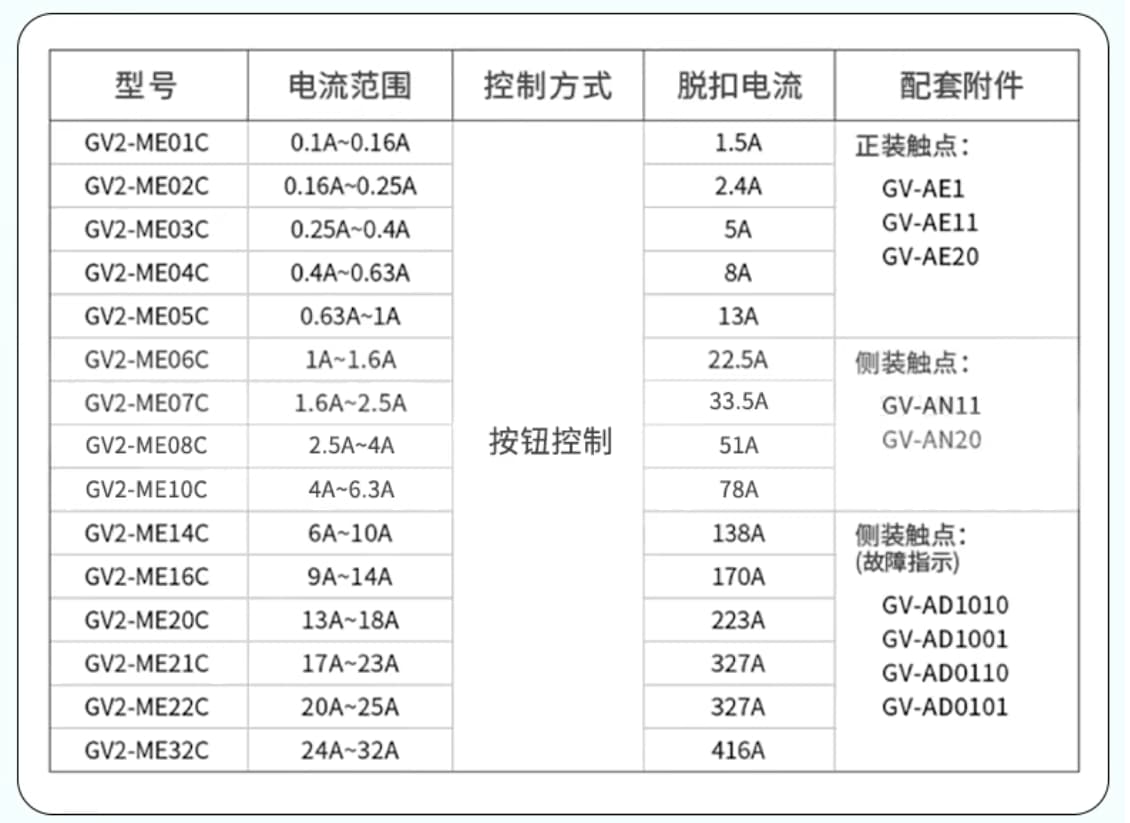

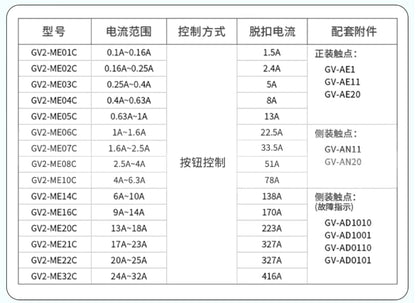

  • Adjustable thermal setting: 0.25 – 0.40 A
  • High fault breaking capacity: 100 kA @ 230…690 V AC
  • Push-button ON/OFF control with phase-failure sensitivity
  • Compact 45 mm DIN-rail mountable housing (IP20)
  • Mechanical & electrical endurance: 100 000 cycles
Product ID (MPN) GV2ME03
EAN / GTIN 3389110342994
Brand Schneider Electric
Series / Range TeSys Deca (GV2)
Product Type Thermal-Magnetic Motor Circuit Breaker / Manual Starter & Protector
Poles 3P
Trip Unit Technology Thermal-magnetic
Thermal Setting Range 0.25 – 0.40 A
Line Rated Current (In) 0.4 A
Magnetic Trip Current 5.8 A
Breaking Capacity (Icu) 100 kA @ 230 – 690 V AC
Rated Operational Voltage (Ue) 690 V AC 50/60 Hz
Rated Insulation Voltage (Ui) 690 V AC
Rated Impulse Withstand (Uimp) 6 kV
Network Frequency 50 / 60 Hz
Utilisation Category Category A, AC-3 / AC-3e
Control Type Push-button
Phase-Failure Sensitivity Yes
Suitability for Isolation Yes (IEC 60947-1)
Mechanical Durability 100 000 cycles
Electrical Durability 100 000 cycles (AC-3 415 V)
Power Dissipation per Pole 2.5 W
Mounting 35 mm DIN-rail clip or panel (adapter)
Connection Type / Size Screw clamp, 1 – 6 mm² (solid) / 1.5 – 6 mm² (flex)
Tightening Torque 1.7 N·m

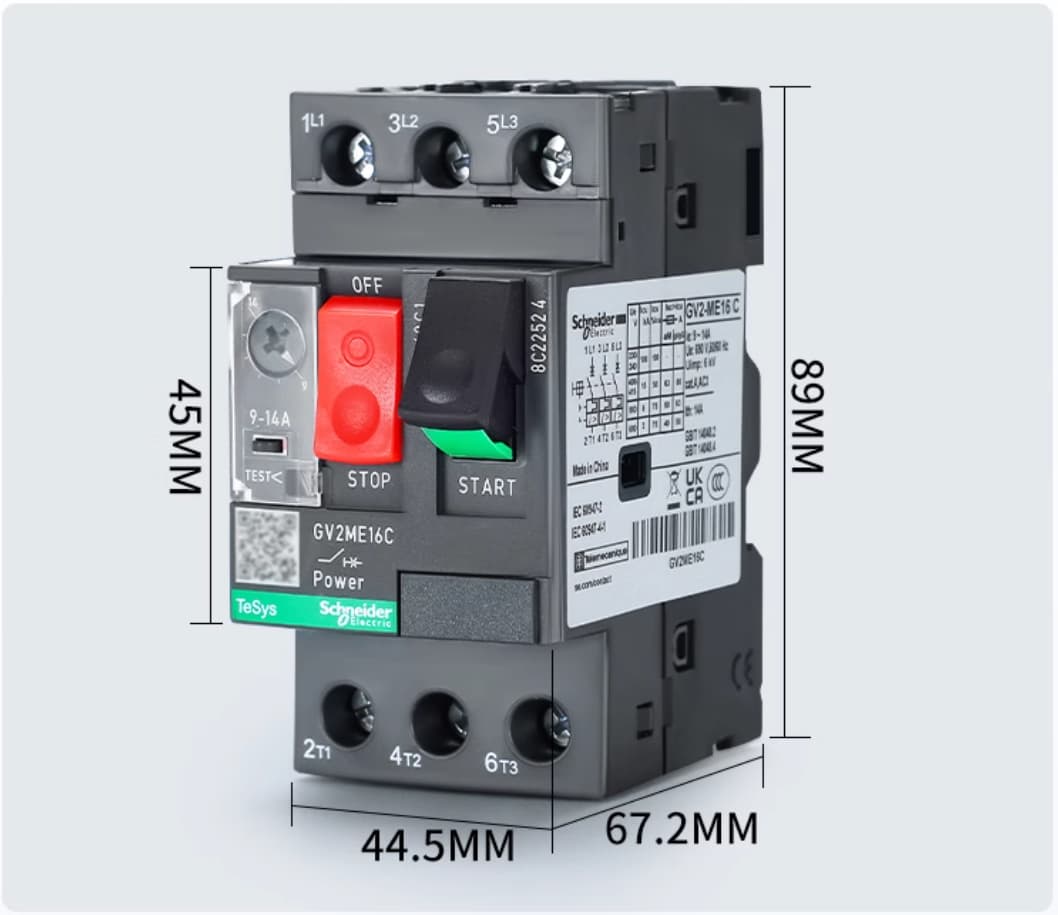

Width 45 mm
Height 89 mm
Depth 78.5 mm
Net Weight 0.26 kg
Colour Dark grey
IP Rating IP20
IK Rating IK04
Ambient Temp (Operation) -20 … 60 °C
Ambient Temp (Storage) -40 … 80 °C
Standards EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Certifications CCC, UL, CSA, EAC, ATEX, Lloyds, BV, RINA, DNV-GL, UKCA
Country of Origin Thailand
Warranty 18 months
