Schneider Electric GV2ME02 TeSys GV2 Motor Circuit Breaker, 0.16-0.25 A, 3-Pole

$100.00 USD
$100.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview
The Schneider Electric TeSys GV2ME02 is a 3-pole thermal-magnetic motor circuit breaker from the TeSys Deca range. Designed for reliable motor protection, it offers an adjustable thermal setting of 0.16…0.25 A, high short-circuit breaking capacity up to 100 kA and simple push-button control. Compact DIN-rail mounting and IP20 touch protection make it ideal for industrial panels where space, safety and performance are critical.

Key Features

  • Adjustable current range: 0.16 – 0.25 A
  • High breaking capacity: 100 kA at up to 690 V AC
  • Thermal-magnetic trip unit with phase-failure sensitivity
  • Compact 45 mm width for 35 mm DIN rail
  • Mechanical & electrical durability: 100 000 cycles
  • IP20 touch-safe housing, IK04 impact resistance
Product ID GV2ME02
EAN / GTIN 3389110342970
Brand Schneider Electric
Range TeSys Deca
Series / Device short name GV2ME
Product type Motor circuit breaker (manual starter & protector)
Trip unit technology Thermal-magnetic
Poles 3P
Adjustable thermal range 0.16…0.25 A
Line rated current (In) 0.25 A
Magnetic trip current 3.08 A
Rated operational voltage (Ue) 690 V AC 50/60 Hz
Rated insulation voltage (Ui) 690 V AC
Impulse withstand (Uimp) 6 kV
Breaking capacity Icu 100 kA @ 230/240 V, 400/415 V, 440 V, 500 V, 690 V AC
Service short-circuit Ics 100 % of Icu at listed voltages
Utilisation categories Category A, AC-3, AC-3e
Control type Push-button
Phase-failure sensitivity Yes
Power dissipation / pole 2.5 W
Mechanical durability 100 000 cycles
Electrical durability 100 000 cycles (AC-3 415 V)
Mounting 35 mm DIN rail or panel (adaptor)
Mounting position Horizontal / Vertical
Terminal type & size Screw clamp 1–6 mm² solid, 1.5–6 mm² flex, 1–4 mm² flex w/ end
Tightening torque 1.7 N·m (15.05 lbf·in)

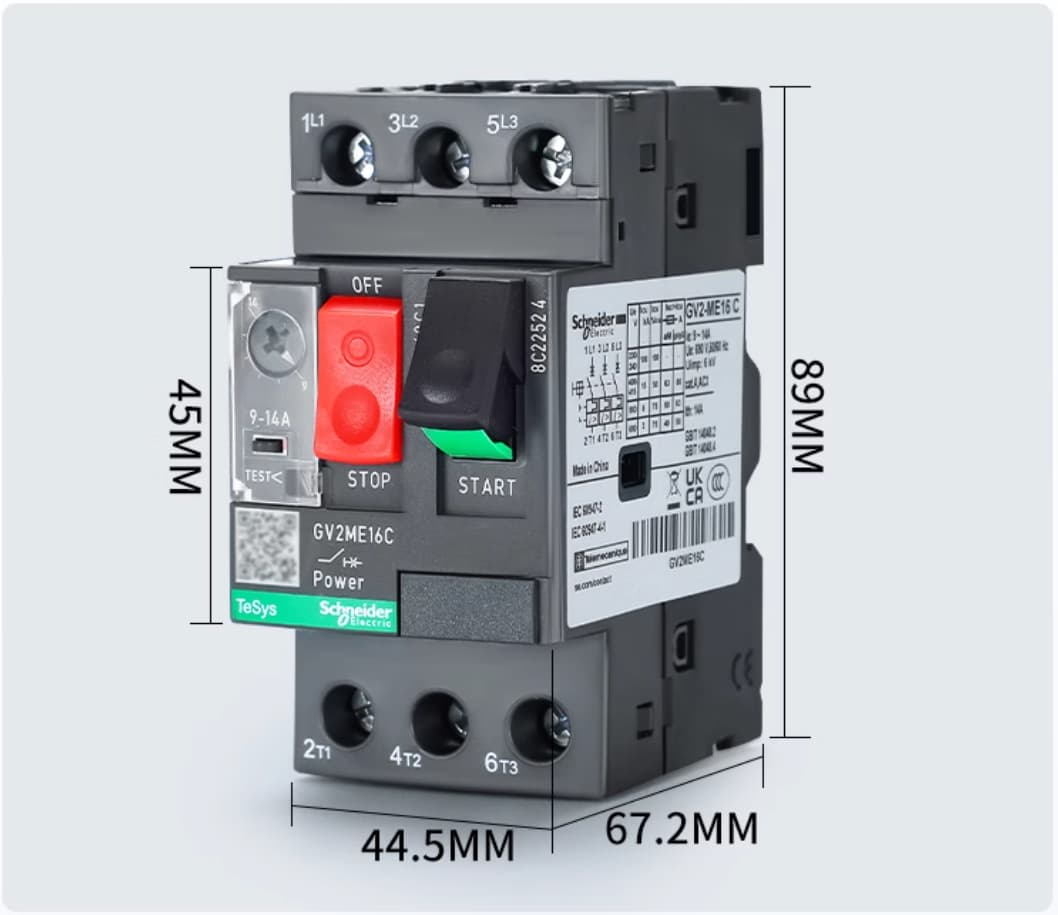

Width 45 mm (1.8 in)
Height 89 mm (3.5 in)
