• Schneider Schneider Electric VW3A3501 Programmable Controller Card, 24 V DC, for Altivar Variable Speed Drive
1 1

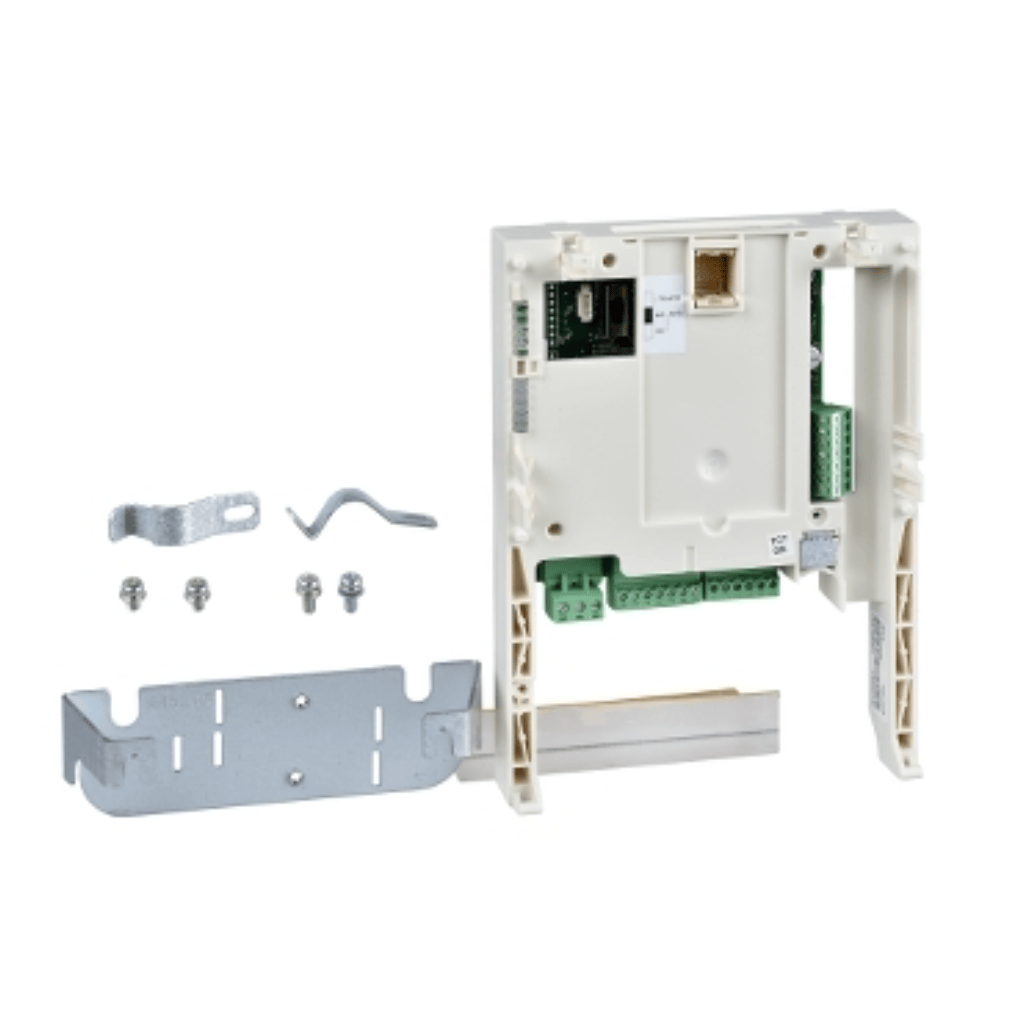

Schneider Electric VW3A3501 Controller Inside Programmable Card, 24V DC, for Altivar Variable Speed Drives

$360.00 USD
$360.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Schneider Electric VW3A3501 is a "Controller Inside" programmable card designed to enhance the functionality of Altivar variable speed drives. Operating on a 24V DC supply, this card adds advanced programmable logic controller (PLC) capabilities directly into compatible drives, including the Altivar 61, 71, 61Q, 71Q, and Lift series. It features a comprehensive set of I/O, CANopen communication, and a dedicated programming environment for custom automation tasks.

Key Features

  • Adds PLC functionality directly into compatible Altivar drives.
  • Comprehensive I/O: 2 analog inputs, 2 analog outputs, 10 discrete inputs, and 6 discrete outputs.
  • Integrated CANopen communication port for master/slave network configuration.
  • Includes a lithium battery for data retention with an 8-year life.
  • Supports compiled programs up to 320 kB in size.
  • Designed for seamless integration with Altivar 61, 71, 61Q, 71Q, and Lift drive families.
Product ID / MPN VW3A3501
Brand Schneider Electric
Product Type Controller Inside Programmable Card
Compatible Ranges Altivar 61, Altivar 71, Altivar Lift, Altivar 61Q, Altivar 71Q
Rated Supply Voltage 24 V DC
Supply Voltage Limits 19...30 V
Current Consumption 80 mA (no load), 200 mA max per logic output, 2 A max total
Analogue Inputs 2 (AI51, AI52: 0-20 mA, 250 Ohm, 10-bit)
Analogue Outputs 2 (AO51, AO52: 0-20 mA, 500 Ohm, 10-bit)
Discrete Inputs 10 (LI51...LI60: 24V DC, Level 1 PLC compatible)
Discrete Outputs 6 (LO51...LO56: 24V DC, Level 1 PLC compatible, 0.2 A max)
Discrete Output Voltage 24 V DC (max switching voltage: 30 V)
Communication Port CANopen
Connector Type 9-way male SUB-D connector
Transmission Rate 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps
Method of Access Master
Number of Addresses 1...32
Program Memory Size 320 kB maximum (compiled)
Data Memory Size 64 kwords maximum (4 kwords saved)
Battery Type Lithium
Battery Life 8 years
Electrical Connection Terminal, 1.5 mm² / AWG 16, 0.25 N.m torque
Display 1 LED (RUN status), 1 LED (ERROR fault)
Net Weight 0.32 kg
