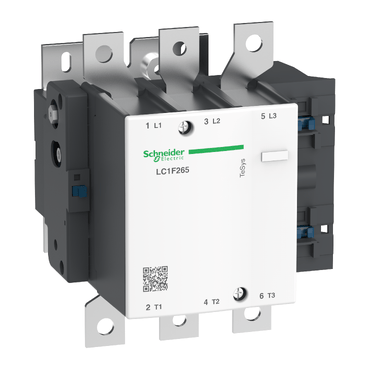

Schneider Electric TeSys F LC1F265M7 Contactor, 3P (3 NO), AC‑3 265A <=440V, 220V AC Coil
Regular price
$550.00 USD
Regular price
Sale price
$550.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric LC1F265M7 is a TeSys F series, 3-pole (3 Normally Open) power contactor designed for demanding motor control (AC-3) and resistive load (AC-1) applications. It features a 220V AC control coil with a wide frequency range (40-400 Hz) and is rated for operational currents up to 265A at 440V AC. Engineered for high durability, it offers a mechanical life of 10 million cycles and complies with major international standards including IEC, UL, and CSA.
Key Features:
- Utilisation Categories: AC-3, AC-1, AC-4
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-4-1)
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- High Short-Time Withstand Current: Up to 2200 A for 10 seconds
- Mechanical Durability: 10 Million cycles
- Compact Design with IP20 Front Protection
- Compliant with RoHS, REACh, and features a PVC-free construction.
| Product ID / Reference | LC1F265M7 |
| EAN / GTIN | 3389110351620 |
| Brand | Schneider Electric |
| Range | TeSys |
| Range of Product | TeSys F |
| Product Type | Contactor |
| Poles Description | 3P |
| Contact Composition | 3 NO |
| Rated Operational Voltage [Ue] | <= 1000 V AC-1 <= 690 V AC-3 <= 690 V AC-4 <= 460 V DC |
| Rated Operational Current [Ie] AC-3 | 265 A (at <= 440 V AC, 55°C) |
| Rated Operational Current [Ie] AC-1 | 350 A (at <= 440 V AC, 40°C) |
| Control Circuit Voltage [Uc] | 220 V AC 40...400 Hz |
| Control Circuit Type | AC 40...400 Hz |
| Motor Power @ 440V AC (AC-3) | 140 kW |
| Conventional Free Air Thermal Current [Ith] | 350 A (at 40°C) |
| Rated Short-Time Withstand Current [Icw] | 2200 A (40°C - 10 s) 1230 A (40°C - 30 s) 950 A (40°C - 1 min) 620 A (40°C - 3 min) 480 A (40°C - 10 min) |
| Rated Breaking Capacity | 2120 A (IEC 60947-4-1) |
| Power Dissipation per Pole (AC-3) | 21 W |
| Mechanical Durability | 10 Mcycles |
| Operating Time | 40...65 ms (closing) 100...170 ms (opening) |
| Inrush Power | 650 VA (40...400 Hz) |
| Hold-in Power Consumption | 10 VA (40...400 Hz) |
| Tightening Torque (Power Circuit) | 35 N.m |
| Degree of Protection (IP) | IP20 (front face with shrouds) |
| Operating Ambient Air Temperature | -5...55 °C |
| Operating Altitude | 3000 m (without derating) |
| Dimensions (H x W x D) | 203 x 201.5 x 213 mm |
| Net Weight | 7.44 kg |
| Standards | IEC 60947-4-1, IEC 60947-1, EN 60947-1, EN 60947-4-1, JIS C8201-4-1 |
| Certifications | UL, CSA, CE, UKCA, RINA, RMRoS, BV, ABS, LROS, DNV |
| Country of Origin | CZ |
| Warranty | 18 Months |
| Packaging | 1 piece per carton |
