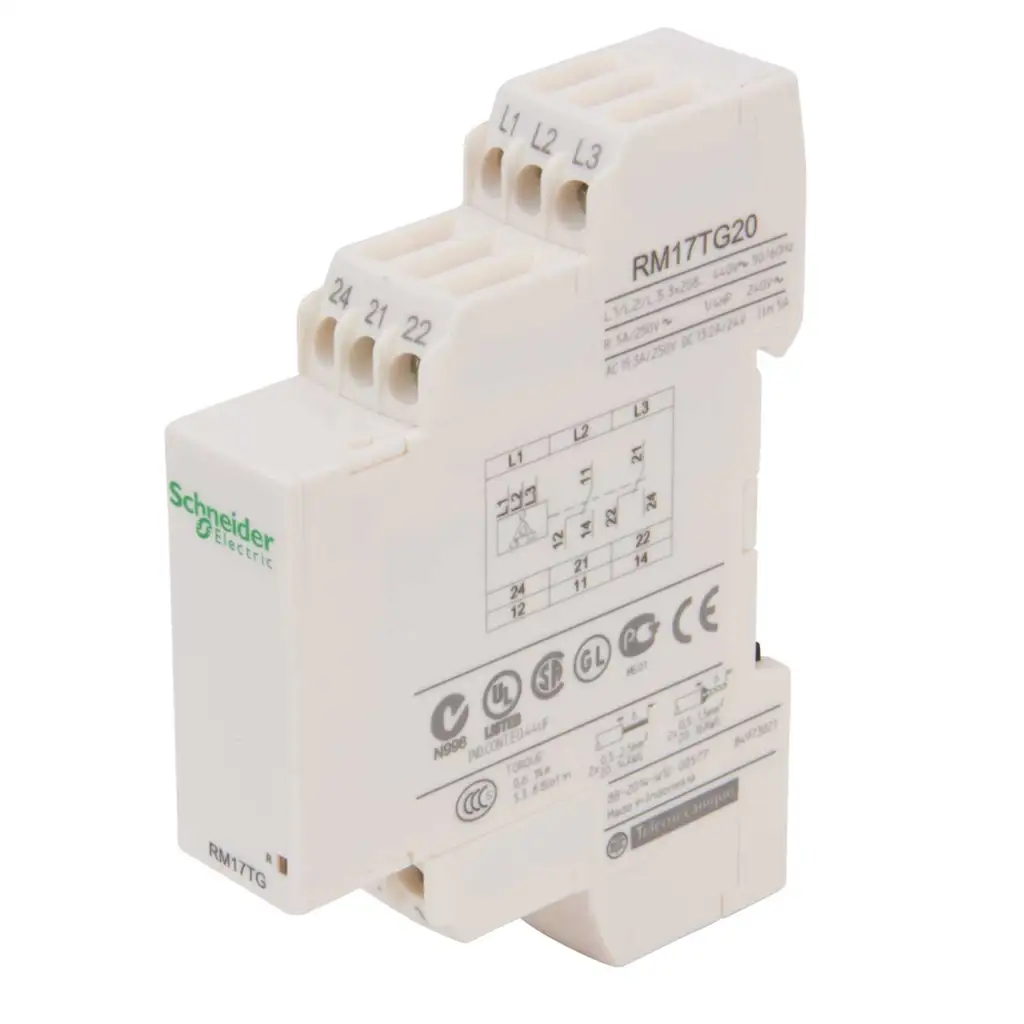

Schneider Electric RM17TG20 Harmony Control Relay, Modular 3-phase Supply Control, 5 A, 2 C/O
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Schneider Electric RM17TG20 is a Harmony Control Relay designed for 3-phase supply applications. It provides reliable monitoring of phase sequence and phase failure detection without the need for a time delay. This control relay is capable of operating within a measurement range of 208...480 V AC and supports up to 5 A nominal output current.
Key Features
- Phase sequence monitoring
- Phase failure detection
- Self-powered with a control circuit voltage of 208...440 V
- High electrical durability with 10,000 cycles
- Robust mechanical durability of 30,000,000 cycles
Specifications
| Range of Product | Harmony Control Relays |
| Relay Type | Control relay |
| Product Specific Application | For 3-phase supply |
| Relay Name | RM17TG |
| Monitored Parameters | Phase sequence, Phase failure detection (2 or more phase cut) |
| Measurement Range | 208...480 V AC |
| Output Contacts | 2 C/O |
| Nominal Output Current | 5 A |
| Control Circuit Voltage | 208...440 V |
| Supply Voltage Limits | 183…484 V AC |
| Maximum Switching Voltage | 250 V AC, 250 V DC |
| Switching Capacity | 1250 VA |
| Minimum Switching Current | 10 mA at 5 V DC |
