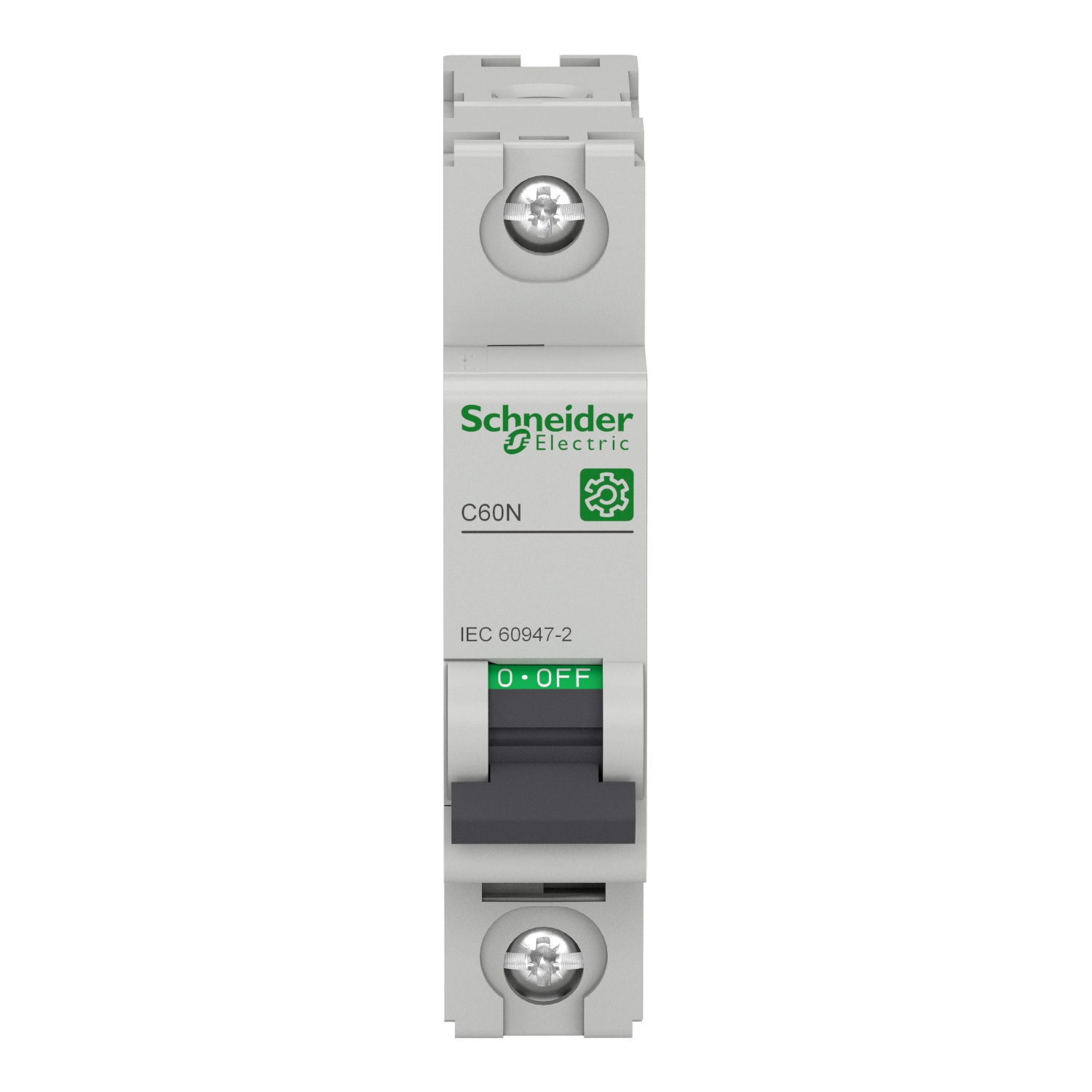

Schneider Electric M9F11102 Multi9 C60N Miniature Circuit Breaker, 1P, 2A, C Curve, 10kA - Pack of 4
Regular price
$245.00 USD
Regular price
Sale price
$245.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
This Schneider Electric Multi9 C60N miniature circuit breaker (MCB) is a 1-pole thermal-magnetic device designed for distribution applications. It features a C trip curve for standard protection, a 10kA breaking capacity at 240V AC, and a compact DIN rail mount design with tunnel-type terminals.
Key Features
- Thermal-magnetic trip unit with C characteristic curve for standard protection
- High 10kA breaking capacity (Icu) at 240V AC 50/60Hz
- Compact DIN rail mounting with clip-on installation
- Tunnel-type terminals accept 1-25mm² wires (rigid, flexible, or with ferrule)
- Padlockable for safety lockout/tagout (LOTO) procedures
- Compliant with IEC/EN 60947-2 and features multiple global certifications (UKCA, EAC, CCC, KC, RCM)
Technical Specifications
| Product ID | M9F11102 |
| EAN | 3606480576072 |
| Device Short Name | C60N |
| Poles Description | 1P |
| Rated Current (In) | 2 A @ 50°C |
| Trip Curve | C |
| Breaking Capacity (Icu) | 10 kA @ 240V AC 50/60Hz |
| Rated Operational Voltage (Ue) | 240 V AC / 415 V AC / ≤72 V DC |
| Magnetic Tripping Limit | 8.5 x In +/-20% (AC) |
| Trip Unit Technology | Thermal-Magnetic |
| Mounting | DIN Rail (Clip-on) |
| Terminal Type | Tunnel Type |
| Wire Range | 1...25 mm² |
| Tightening Torque | 2 N.m |
| Dimensions (H x W x D) | 81 x 18 x 72 mm |
| Electrical Durability | 10000 cycles |
| Operating Temperature | -30...70 °C |
| Standards | IEC/EN 60947-2 |
