Schneider Electric LXM23DU20M3X Lexium 23 Motion Servo Drive — Three-Phase 170–255 VAC Supply, 2.0 kW Output, Integrated I/O — Compact Servo Drive

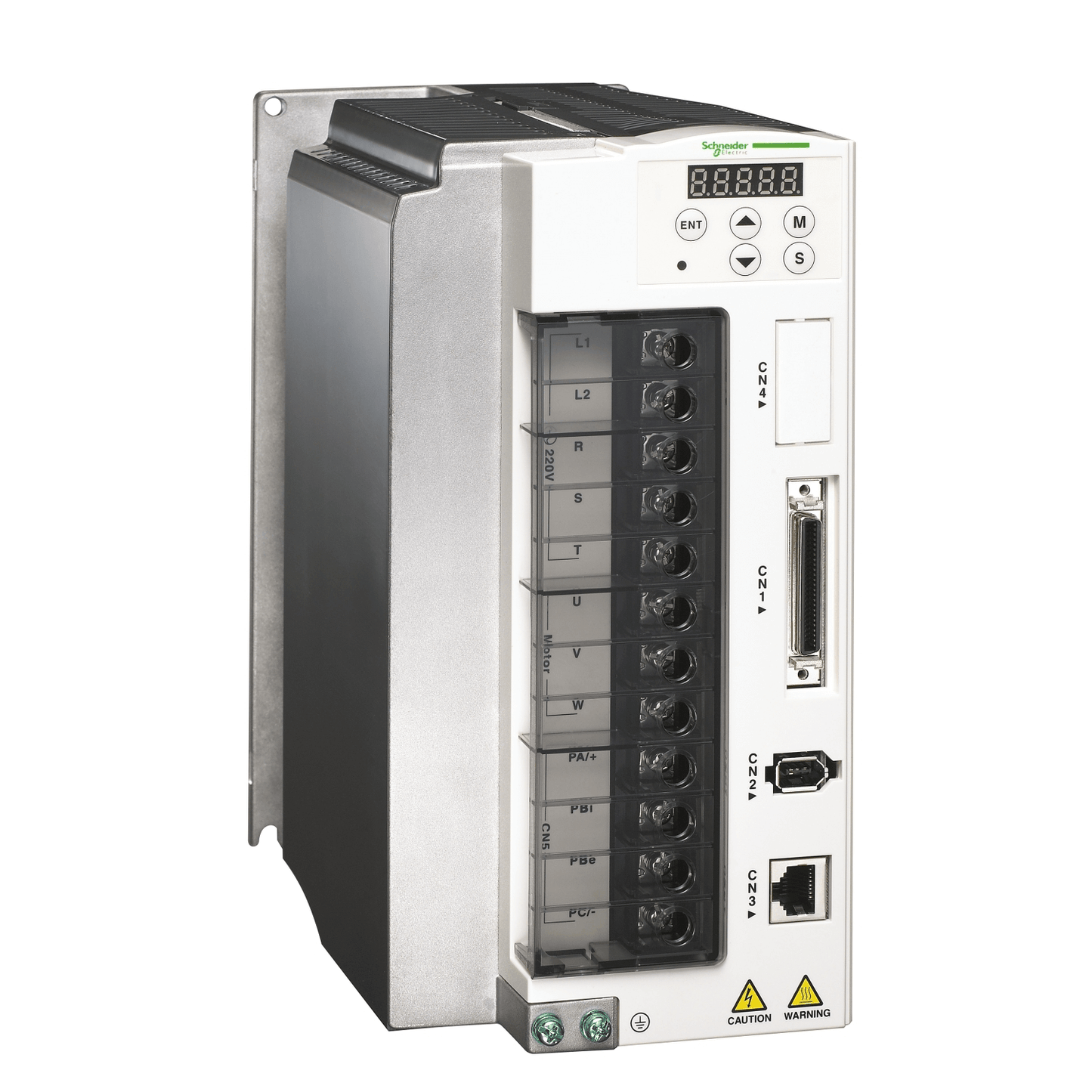

Product overview The Schneider Electric LXM23DU20M3X is a Lexium 23 series compact motion servo drive providing 2.0 kW continuous output from a three-phase 170–255 VAC supply. Engineered for precise single-axis motion control in industrial automation, the unit features integrated I/O for simplified machine integration and supports common encoder/feedback interfaces used in the Lexium 23 family.

Key specifications

• Manufacturer: Schneider Electric
• Model: LXM23DU20M3X
• Supply voltage: Three-phase 170–255 VAC (nominal)
• Rated output power: 2.0 kW (2000 W) continuous
• Drive family: Lexium 23 motion servo drive
• Integrated I/O: Onboard inputs/outputs for machine interfacing (consult official datasheet for signal definitions and pinout)
• Form factor: Compact servo drive for panel or machine mounting
• Compatibility: Designed to work with Lexium 23 motors and compatible feedback devices—confirm encoder type and connector in datasheet

Features and benefits

• 2.0 kW continuous power in a compact footprint for demanding single-axis applications.
• Three-phase 170–255 VAC input suitable for industrial distribution voltages and higher-performance motor drives.
• Integrated I/O reduces the need for external modules, streamlining wiring and saving cabinet space.
• Part of Schneider Electric’s Lexium ecosystem to simplify motor/drive matching, commissioning and support.
• Precise position, speed and torque control for packaging, material handling, robotics and OEM machinery.

Typical applications

• Packaging and assembly machinery, conveyor drives and indexing systems
• Robotic axes, pick-and-place units and machine tools
• OEM machinery requiring compact, high-power single-axis drives
• Industrial retrofits where three-phase supply and robust motion control are required

Installation and commissioning notes

• Install and wire per Schneider Electric installation instructions and applicable local electrical codes.
• Verify motor compatibility (power, torque, encoder type) and confirm parameterization requirements using the official Lexium 23 documentation.
• Ensure proper thermal management and ventilation to avoid drive derating in enclosed spaces.
• Use Schneider Electric configuration and commissioning tools for tuning, diagnostics and firmware updates.
• Follow recommended EMC, grounding and cabling practices for reliable operation.

Documentation and support

• For complete electrical ratings, I/O pinout, protection features, braking resistor requirements and communication/firmware details, consult the official Schneider Electric Lexium 23 datasheet and user manual for model LXM23DU20M3X.
