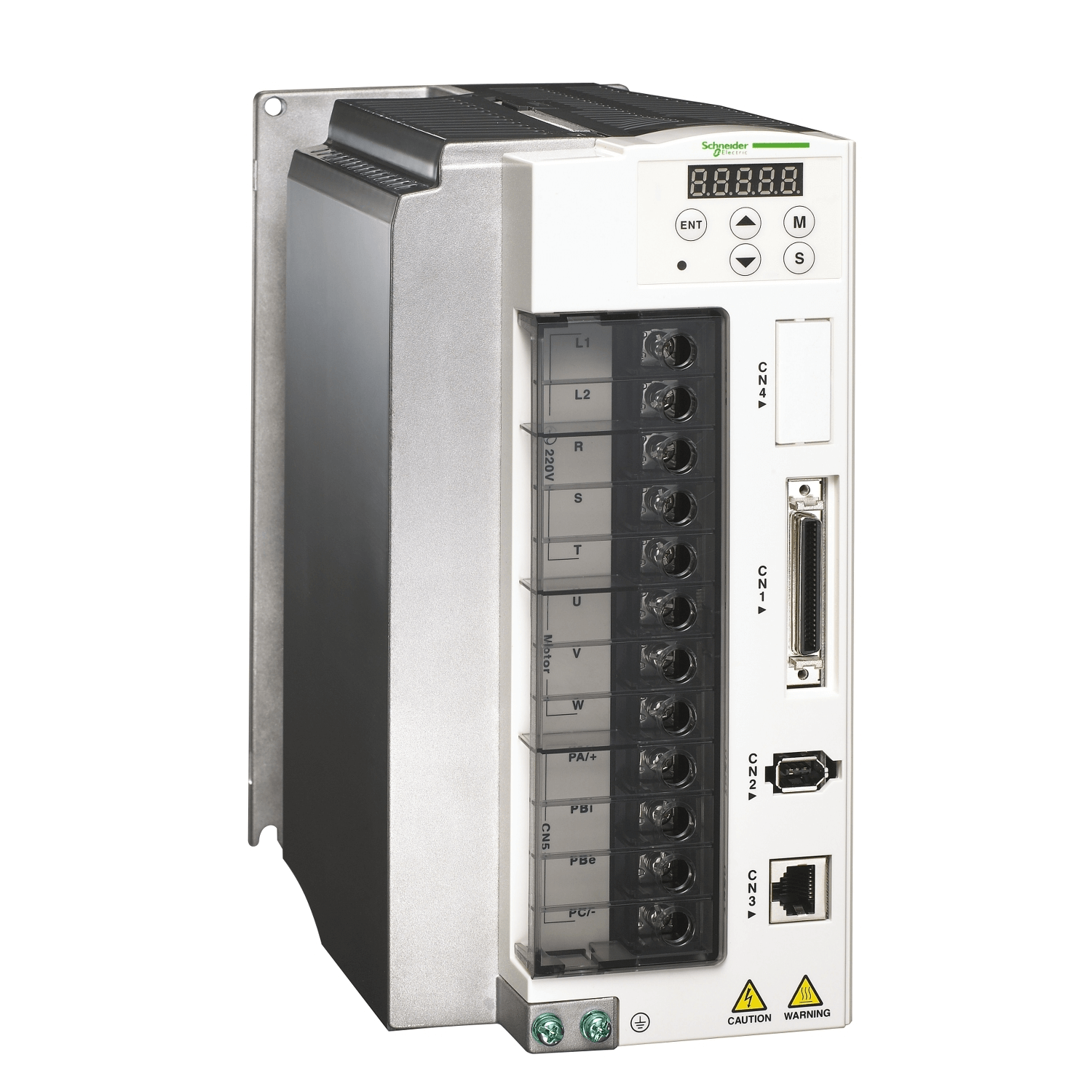

• Schneider Motion servo drive Schneider Electric LXM23DU20M3X Lexium 23 Motion Servo Drive — Three-Phase 170–255 VAC Supply, 2.0 kW Output, Integrated I/O — Compact Servo Drive
1 1

Schneider Electric LXM23DU02M3X Lexium 23 Motion Servo Drive — Single-Phase 200–255 VAC Supply, 0.2 kW (200 W) Output, Integrated I/O — Compact Servo Drive

$350.00 USD
$350.00 USD
Sale Sold out
Shipping calculated at checkout.

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

Visa Mastercard PayPal Apple Pay Google Pay American Express
TECHNICAL DATASHEET PDF

Overview

The Schneider Electric LXM23DU02M3X is a Lexium 23 Plus series motion servo drive designed for precise motor control. This single-phase, 200W drive operates from a 200-255V AC supply and delivers a continuous output current of 1.55A. It features an integrated Modbus interface for communication and is suitable for vertical mounting in industrial control cabinets.

Key Features

  • Part of the Lexium 23 Plus servo drive family.
  • Single-phase 200-255V AC input with 50/60Hz frequency.
  • Continuous output power of 200W (0.2kW) at 1.55A.
  • Integrated 2-wire RS485 Modbus communication interface (slave).
  • Equipped with 8 programmable digital inputs and 5 logic outputs.
  • Features two analog inputs (-10...+10V) for reference signals.
  • Comprehensive motor protection (overcurrent, overload, overspeed, etc.).
  • Compact book format design for space-efficient panel mounting.
  • Conforms to key standards including EN/IEC 61800-5-1, cULus, and C-Tick.
Product ID LXM23DU02M3X
Brand Schneider Electric
Product Type Motion Servo Drive
Series Lexium 23 Plus
Supply Voltage 200...255 V AC Single Phase
Supply Frequency 50/60 Hz
Continuous Output Current 1.55 A
Continuous Output Power 200 W (0.2 kW) at 220V
Communication Interface Modbus (2-wire RS485)
Digital Inputs 8 programmable (12...24 V DC)
Digital Outputs 5 logic outputs (12...24 V DC)
Analog Inputs 2 (-10...+10 V, 10 kOhm)
Protection Features Overcurrent, Overvoltage, Undervoltage, Overheating, Overload, Overspeed, Reverse Polarity, Short-Circuit
Cooling Type Natural Convection
IP Rating IP20 (upper part, without cover) / IP41 (with cover)
Operating Temperature 0...55 °C
Dimensions (W x H x D) 60 x 162 x 146 mm
Net Weight 1.7 kg
Standards & Certifications EN/IEC 61800-5-1, cULus 508, C-Tick
