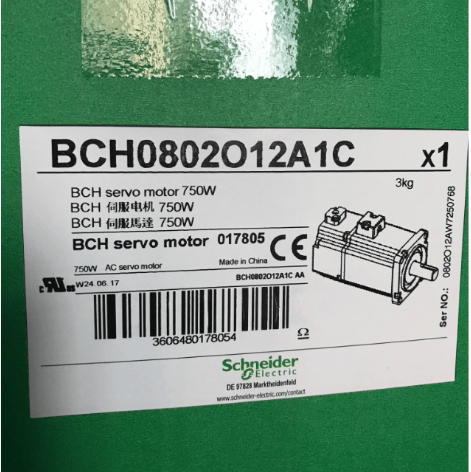

Schneider Electric Lexium BCH0802O12A1C Servo Motor, 20-bit Encoder, 0.75 kW, O-frame 80 mm, Keyed Shaft, No Oil Seal, Straight Connector
Regular price
$350.00 USD
Regular price
Sale price
$350.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview: The Schneider Electric BCH0802O12A1C is a servo motor from the BCH series, engineered for use with the Lexium 23 Plus drive platform. This model provides 0.75 kW of continuous power from a 220V single-phase supply, with a top speed of 5000 rpm. It is equipped with a keyed 19mm shaft, a high-resolution 20-bit incremental encoder, and features an 80mm Asian standard flange. The motor is cooled by natural convection and rated IP40.
Key Features:
- Designed for compatibility with Lexium 23 Plus servo drives.
- Features a precise 20-bit incremental encoder for accurate positioning.
- Robust keyed shaft (19mm diameter, 6mm key) for reliable torque transmission.
- Compact design with an 80mm Asian standard mounting flange.
- Natural convection cooling eliminates the need for a fan.
- Note: This product is discontinued for new designs (as of 31 Dec 2023) and is available for service purposes only.
| Product ID / Article Code | BCH0802O12A1C |
| Brand | Schneider Electric |
| Series | BCH |
| Product Type | Servo Motor |
| Compatible Drive | Lexium 23 Plus |
| Status | Discontinued (Service Only) |
| Rated Supply Voltage | 220 V |
| Supply Phase | Single phase |
| Continuous Power | 0.75 kW |
| Continuous Stall Current | 5.1 A |
| Maximum Mechanical Speed | 5000 rpm |
| Torque Constant | 0.47 N.m/A |
| Rotor Inertia | 1.13 kg.cm² |
| Feedback Type | 20 bits incremental encoder |
| Holding Brake | Without |
| Shaft Type | Keyed |
| Shaft Diameter | 19 mm |
| Shaft Length | 37 mm |
| Key Width | 6 mm |
| Motor Flange Size | 80 mm (Asian standard) |
| Length (without brake) | 138.3 mm |
| Net Weight | 3 kg |
| IP Rating | IP40 |
| Operating Temperature | 0…40 °C |
